(5-04) - TRACK CHAIN AND SHOES, *TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007

Запчасти Case 9050B (5-04) - TRACK CHAIN AND SHOES, *TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING

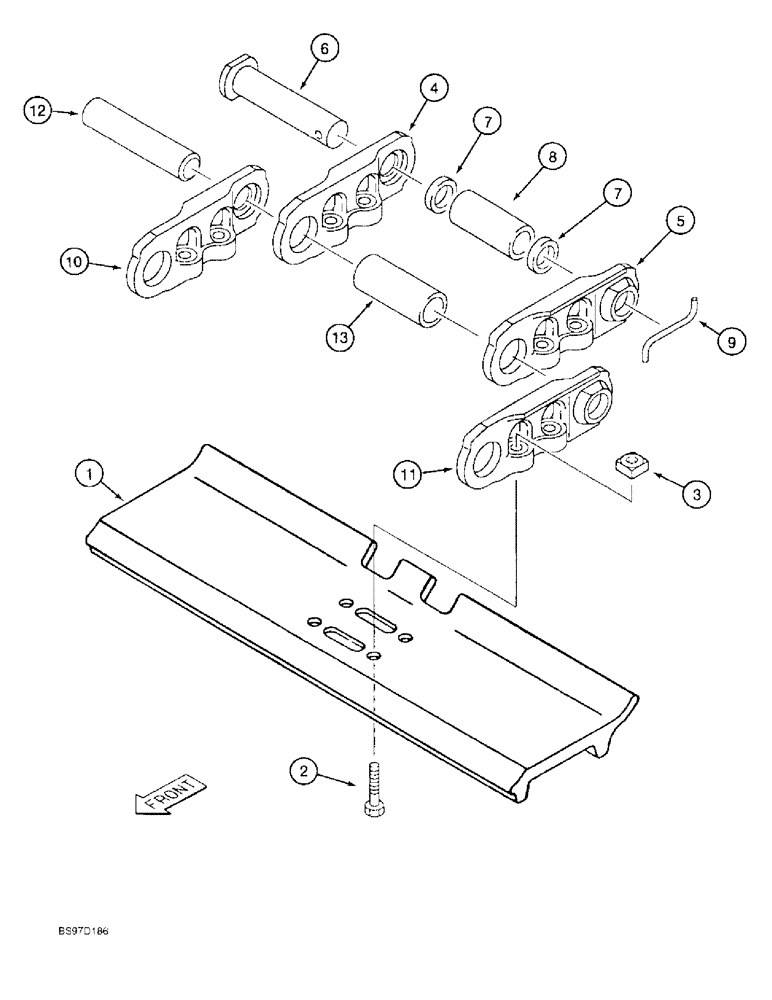

Схема запчастей Case 9050B - (5-04) - TRACK CHAIN AND SHOES, *TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING
8
10
7
2
13
6
1
7
3
12
9
11
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CHAIN ASSEMBLY - track, includes track shoes, Includes: Ref. 1 - 13

2шт.

1

165604A1

TRACK SHOE

SHOE - track, two bar grouser, 711 mm (28 inch) wide

49шт.

2

162104A1

BOLT

BOLT - special

196шт.

3

162105A1

NUT

- special

196шт.

162085A1

CHAIN (CE)

CHAIN ASSEMBLY - track, without track shoes, Includes: Ref. 4 - 13

1шт.

4

162106A1

LINK

- master, right-hand

1шт.

5

162107A1

LINK

- master, left-hand

1шт.

6

157404A1

HEADED PIN

PIN - master link

1шт.

7

157407A1

COLLAR CLAMP

SPACER - bushing

2шт.

8

162108A1

RING

BUSHING - master pin

1шт.

9

151064A1

LINCH PIN

PIN - lock, for master link pin

1шт.

10

165605A1

LINK

- track, right-hand, standard

48шт.

11

165606A1

LINK

- track, left-hand, standard

48шт.

12

157402A1

PIN

- track, for standard track chain link

48шт.

13

165607A1

RING

BUSHING - track, for standard track chain link

48шт.
