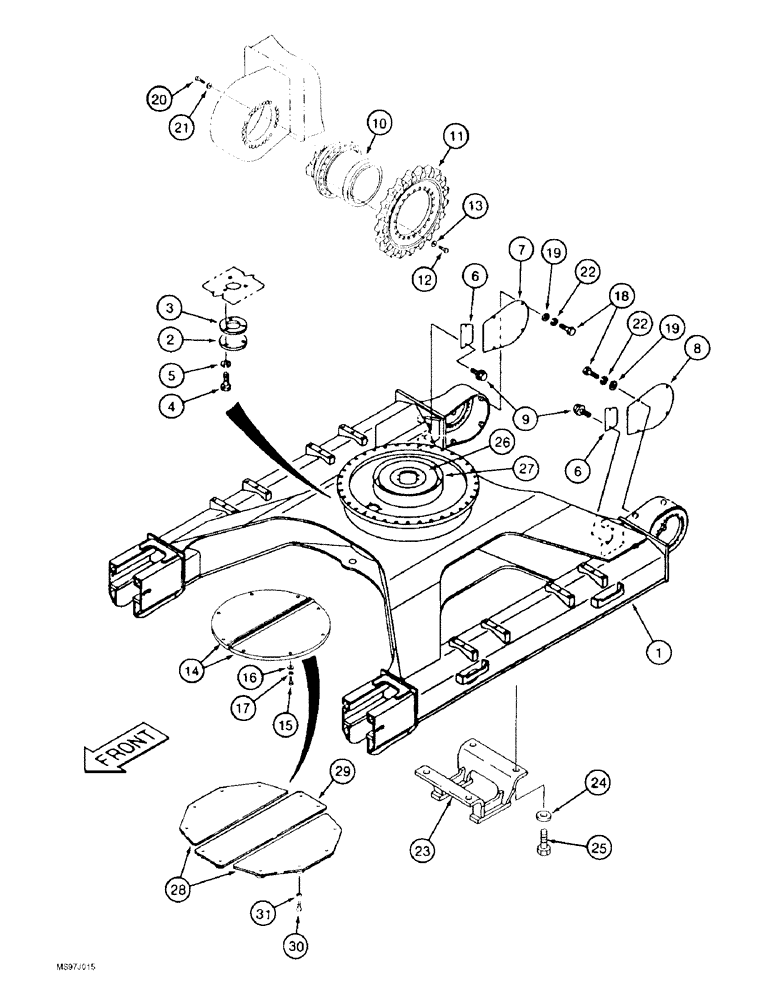

Запчасти Case 9050B (5-02) - TRACK FRAME AND DRIVE SPROCKET, *TIMBER KING MODELS (11) - TRACKS/STEERING

1

164246A1

FRAME

- track and undercarriage, P.I.N. DAC0531001 thru DAC0531007

1шт.

1

173688A1

FRAME

- track and undercarriage, P.I.N. EAC0531007 and after

1шт.

2

150432A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

150436A1

PACKING

GASKET - access cover

1шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

3шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

6

164247A1

COVER

- access, hydraulic lines to track drive motor, P.I.N. DAC0531001 thru DAC0531007

2шт.

6

173502A1

COVER

- access, hydraulic lines to track drive motor, P.I.N. EAC0531007 and after

2шт.

7

164249A1

COVER

- access, right-hand, track drive motor, P.I.N. DAC0531001 thru DAC0531007

1шт.

7

173503A1

COVER

- access, track drive motor, right-hand, P.I.N. EAC0531007 and after

1шт.

8

164248A1

COVER

- access, left-hand, track drive motor, P.I.N. DAC0531001 thru DAC0531007

1шт.

8

173503A1

COVER

- access, track drive motor, left-hand, P.I.N. EAC0531007 and after

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

10

162086A1

MOTOR

ASSEMBLY - track drive, see parts list Figure 6-2

2шт.

11

162095A1

WHEEL GEAR

SPROCKET - track drive

2шт.

12

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

13

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

48шт.

14

162277A1

COVER

- access, clean out, turntable gear, P.I.N. DAC0531001 thru DAC0531007

2шт.

15

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

P.I.N. DAC0531001 thru DAC0531007 Hex, M16 x 45, 10.9

8шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, P.I.N. DAC0531001 thru DAC0531007

8шт.

17

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm, P.I.N. DAC0531001 thru DAC0531007

8шт.

18

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

10шт.

19

150811A1

WASHER

- flat, special, 12 mm

10шт.

20

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

40шт.

21

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

40шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

10шт.

23

151967A1

GUARD ASSY.

GUIDE - track, P.I.N. DAC0531001 thru DAC0531007

2шт.

24

150996A1

WASHER

- special

8шт.

25

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

8шт.

26

173037A1

RING

- guard, inner, P.I.N. EAC0531007 and after

1шт.

27

173038A1

RING

- guard, outer, P.I.N. EAC0531007 and after

1шт.

28

151283A1

COVER

- access, P.I.N. EAC0531007 and after

2шт.

29

151289A1

COVER

- access, P.I.N. EAC0531007 and after

1шт.

30

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

P.I.N. EAC0531007 and after Hex, M16 x 40, 10.9, Full Thd

12шт.

31

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened, P.I.N. EAC0531007 and after

12шт.
