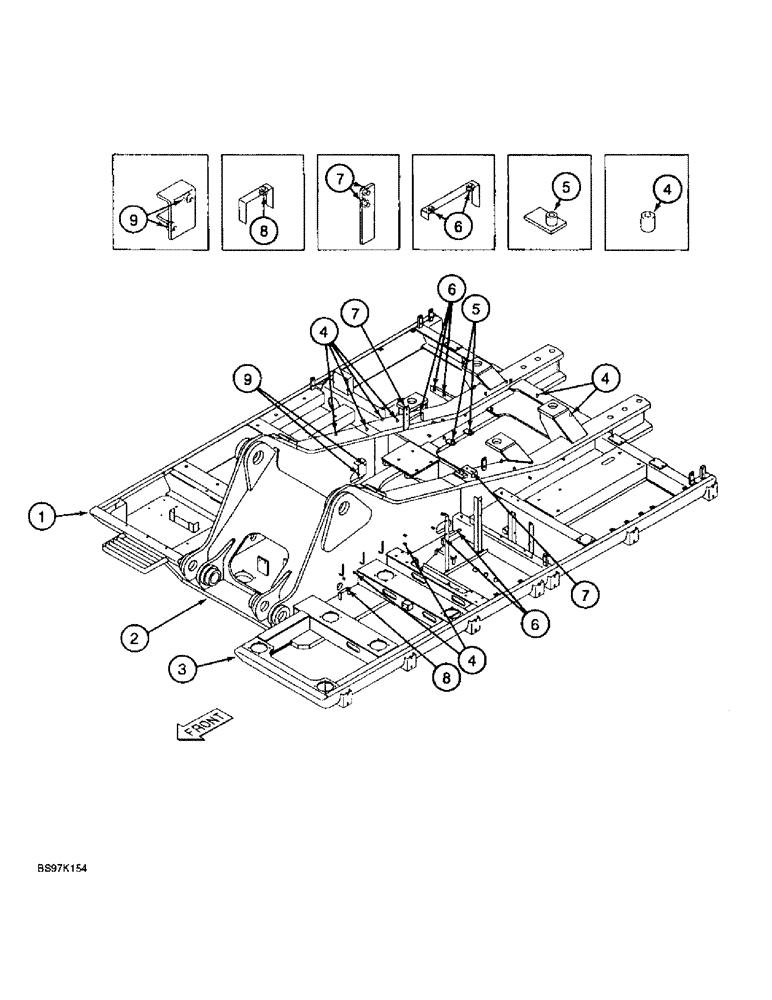

Запчасти Case 9050B (9-6) - COUNTERWEIGHT, TIMBER KING MODELS, PRIOR TO P.I.N. DAC0531001 - DAC0531007 (09) - CHASSIS

1

163826A1

WEIGHT PACKAGE

COUNTERWEIGHT - rear, 8400 kg (18,480 lbs)

1шт.

2

162582A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

3

162583A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

4

162584A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

5

159758A1

BOLT,Spcl, Hex, M27 x 290mm

BOLT - special

6шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

157671A1

PLUG

- special, counterweight

2шт.

8

162585A1

ADJUSTING PLATE

SHIM - counterweight, 0.77 mm (.03 inch) thick

1шт.

9

162586A1

ADJUSTING PLATE

SHIM - counterweight, 1.27 mm (.05 inch) thick

1шт.

10

162587A1

ADJUSTING PLATE

SHIM - counterweight, 2.29 mm (.09 inch) thick

1шт.

11

162588A1

ADJUSTING PLATE

SHIM - counterweight, 4.58 mm (.18 inch) thick

1шт.

12

162589A1

ADJUSTING PLATE

SHIM - counterweight, 6.35 mm (.25 inch) thick

1шт.

13

157544A1

WASHER

- high strength, special

6шт.

14

162590A1

BRACKET

- counterweight mounting

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

3шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.
