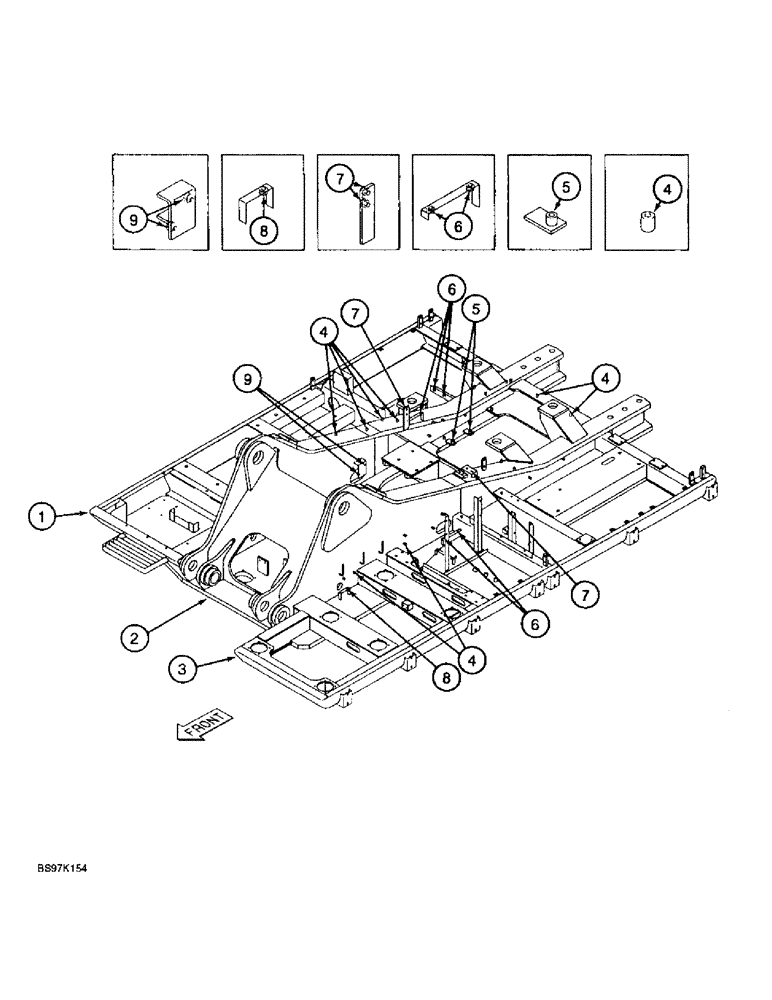

Запчасти Case 9050B (9-4) - TURNTABLE AND WALKWAYS, TIMBER KING MODELS (09) - CHASSIS

173689A1

FRAME ASSY

TURNTABLE ASSEMBLY - excavator, P.I.N. EAC0531007 and after, Includes: Ref. 1 - 9

1шт.

NSS

NOT SOLD SEPARAT

TURNTABLE ASSEMBLY - excavator, P.I.N. DAC0531001 thru DAC0531007

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM - turntable, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - boom mounting

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM - turntable, left-hand

1шт.

4

158811A1

BOSS

- special, weld on

44шт.

5

158918A1

SPECIAL NUT

- special

4шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

11шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

6шт.

8

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10, RH front

1шт.

9

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10.9, RH and LH rear

2шт.
