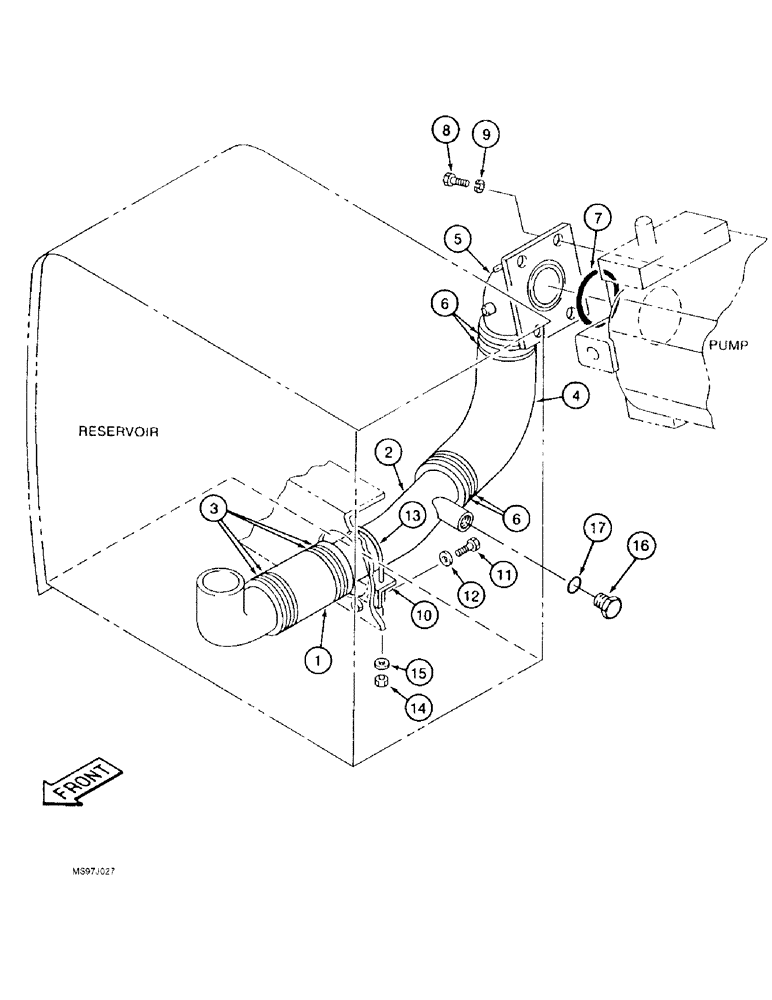

Запчасти Case 9050B (8-08) - RESERVOIR TO PUMP SUCTION LINE, TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (08) - HYDRAULICS

1

152375A1

HOSE,88.90 mm ID x 200.00 mm

- Reservoir end 88.90 mm ID x 200.00 mm

1шт.

2

163774A1

TUBE,89.1 mm OD

- suction line, ported, center section of line

1шт.

3

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

4шт.

4

162304A1

HOSE,235.00 mm

pump end 235.00 mm

1шт.

5

162305A1

TUBE,80.7 mm ID, 89.1 mm OD

FITTING - flanged, pump connection

1шт.

6

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

4шт.

7

154787A1

O-RING

- fitting

1шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

10

162307A1

BRACKET

- support

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

152074A1

U-BOLT,M12 x 104mm W x 120mm L

- special

1шт.

14

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

15

150811A1

WASHER

- flat, special, 12 mm

2шт.

16

162659A1

PLUG

- port, suction line tube, Includes: Ref. 17

1шт.

17

154523A1

O-RING

- plug

1шт.
