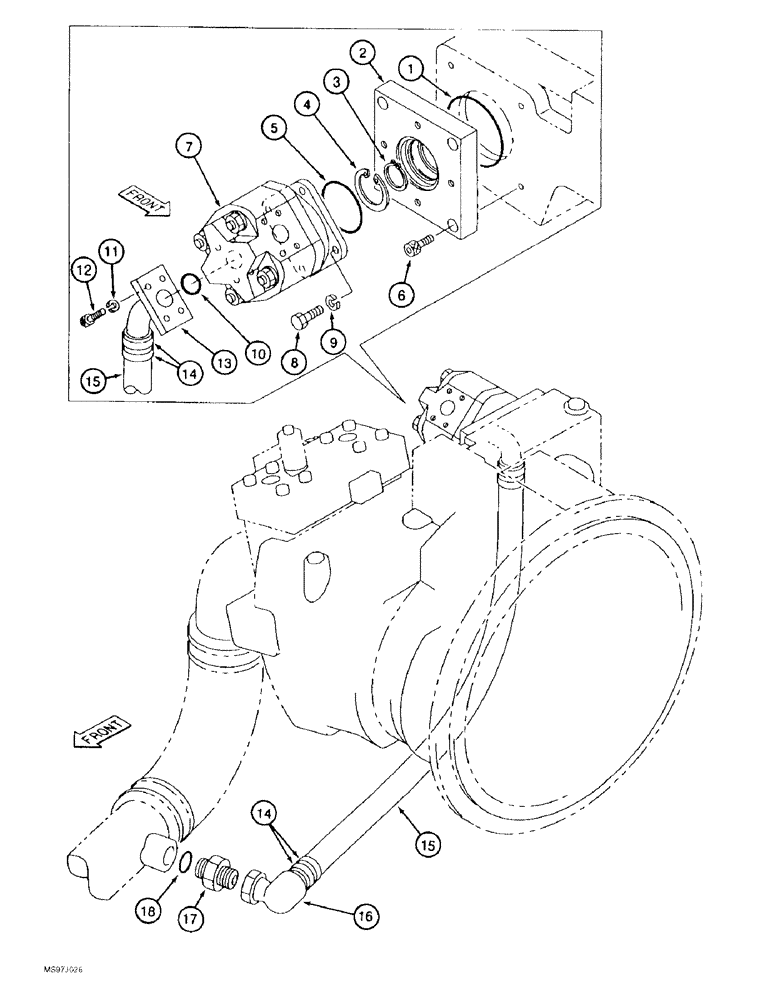

Запчасти Case 9050B (8-02) - AUXILIARY HYDRAULIC PUMP, AND SUCTION LINE, FOR TIMBER KING MODELS PIN DAC0531001 THRU DAC0531007 (08) - HYDRAULICS

160662A1

PUMP

ASSEMBLY - gear, auxiliary, Includes: Ref. 1 - 9

1шт.

162275A1

GEAR

PLATE ASSEMBLY - pump adapter

1шт.

1

154803A1

O-RING

- equipment, Serial Range: pump-plate

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - pump adapter

1шт.

3

800-1145

SNAP RING,M45, Ext

- external retaining, No. 45

1шт.

4

800-2185

SNAP RING,M85 x 3, Int

RING, SNAP, M85 x 3, Int

1шт.

5

154731A1

O-RING

- plate to auxiliary pump

1шт.

6

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

7

157458A1

GEAR

PUMP ASSEMBLY - auxiliary, component information not available at time of printing

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M12 x 30, 10.9

4шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

10

154569A1

O-RING

- suction tube at auxiliary pump

1шт.

11

112309A1

LOCK WASHER

- lock, special

4шт.

12

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 25 mm, class 12.9

4шт.

13

163773A1

TUBE

- flanged

1шт.

14

157917A1

COLLAR

CLAMP - hose

4шт.

15

164584A1

HYDRAULIC HOSE,27.00 mm ID x 900.00 mm

Suction, Auxillary Pump 27.00 mm ID x 900.00 mm

1шт.

16

164583A1

TUBE,27.2 mm OD

ELBOW - special, 90 degree, hose barbed one end

1шт.

17

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 18

1шт.

18

154523A1

O-RING

- adapter

1шт.
