(6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, *TIMBER KING MODELS

Запчасти Case 9050B (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, *TIMBER KING MODELS (06) - POWER TRAIN

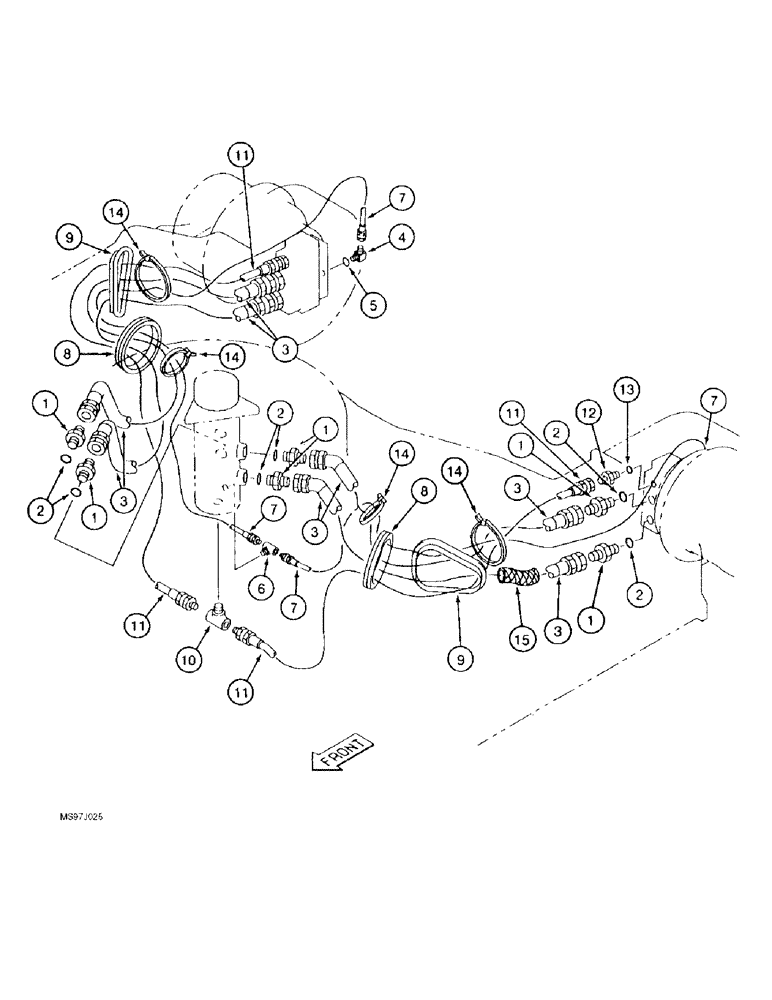

Схема запчастей Case 9050B - (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, *TIMBER KING MODELS (06) - POWER TRAIN
2
14
7
1
9
14
12
11
1
3
7
8
1
11
8
2
3
3
9
14
2
10
2
7
5
1
13
6
15
3
11
3
11
4
14
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, at swivel, Includes: Ref. 2

8шт.

2

154523A1

O-RING

- adapter

8шт.

3

158756A1

HYDRAULIC HOSE

HOSE - 2520 mm (99-1/4 inch) long

4шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Inlcudes: Ref. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

2шт.

6

162276A1

TEE

- special

1шт.

7

152275A1

HOSE,63mm ID x 2900mm L

63.00 mm ID x 2900.00 mm

2шт.

8

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

9

159658A1

REDUCER

GUARD - hose

2шт.

10

158757A1

TEE

- special, in bottom of swivel

1шт.

11

158758A1

HOSE

- 2530 mm (99-5/8 inch) long

2шт.

12

158759A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 13

2шт.

13

154487A1

O-RING

- adapter

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

15

159498A1

GUARD

- hose

4шт.
