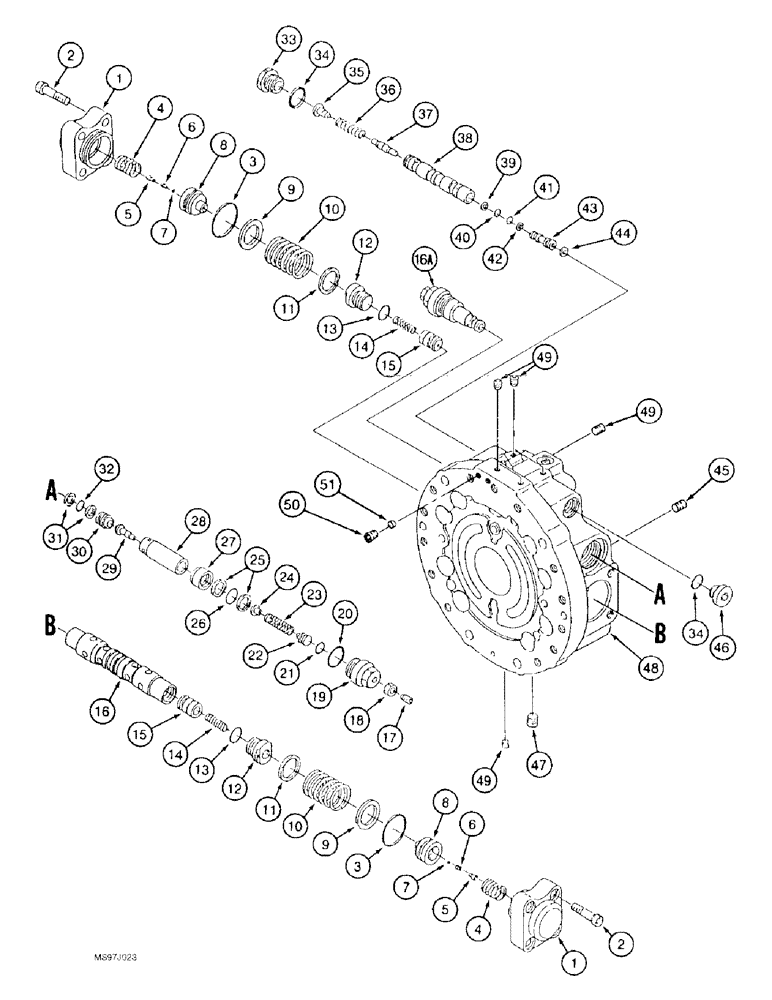

Запчасти Case 9050B (6-10) - TRACK DRIVE MOTOR, BASE PLATE ASSEMBLY AND VALVES, *TIMBER KING MODELS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
BASE PLATE ASSEMBLY - track drive motor, Includes: Ref. 1 - 51
1шт.
163382A1
CAP
ASSEMBLY - special, plunger, Includes: Ref. 1 - 8
2шт.
1
NSS
NOT SOLD SEPARAT
CAP - plunger
1шт.
2
861-12040
HEX SOC SCREW,M12 x 40mm, Cl 12.9
SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9
4шт.
3
154589A1
O-RING
- seal, plunger cap
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
4
NSS
NOT SOLD SEPARAT
SPRING - piston, outer
1шт.
5
NSS
NOT SOLD SEPARAT
GUIDE - spring
1шт.
6
NSS
NOT SOLD SEPARAT
SPRING - piston, inner
1шт.
7
NSS
NOT SOLD SEPARAT
BALL - steel
1шт.
8
NSS
NOT SOLD SEPARAT
PISTON - plunger
1шт.
9
160202A1
SPRING SEAT
SEAT - spring
2шт.
10
160261A1
SPRING
- plunger
2шт.
11
156110A1
SPRING SEAT
SEAT - spring
2шт.
12
NSS
NOT SOLD SEPARAT
PLUG - plunger
2шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
13
154495A1
O-RING
- plug
2шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - check valve
2шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
15
NSS
NOT SOLD SEPARAT
VALVE - check
2шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
16
NSS
NOT SOLD SEPARAT
PLUNGER - valve
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
16a
163383A1
VALVE
ASSEMBLY - relief, Includes: Ref. 17 - 32
2шт.
17
164476A1
SET OF SCREWS
SCREW - set
1шт.
18
829-1312
NUT,M12 x 1.75, Cl 10
- hex, 12 mm - 1.75, class 10, Set screw
1шт.
19
NSS
NOT SOLD SEPARAT
PLUG - valve
1шт.
20
155225A1
O-RING
- seal
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
21
155063A1
O-RING
- seal
1шт.
22
NSS
NOT SOLD SEPARAT
GUIDE - spring
1шт.
23
NSS
NOT SOLD SEPARAT
SPRING - free piston
1шт.
24
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
25
153977A1
BACK-UP RING
RING - backup
2шт.
Part of Seal Kit, P/N 165698A1
1шт.
26
154495A1
O-RING
- seal
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
27
NSS
NOT SOLD SEPARAT
PISTON - free
1шт.
28
NSS
NOT SOLD SEPARAT
HOUSING - relief
1шт.
29
NSS
NOT SOLD SEPARAT
POPPET - relief housing
1шт.
30
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
31
153964A1
BACK-UP RING
RING - backup
2шт.
Part of Seal Kit, P/N 165698A1
1шт.
32
154479A1
O-RING
- seal
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
33
165679A1
PLUG
CAP - end, valve spool
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
35
165690A1
GUIDE
- spring
1шт.
36
160265A1
SPRING
- spool
1шт.
37
NSS
NOT SOLD SEPARAT
SPOOL C - valve
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
38
NSS
NOT SOLD SEPARAT
SPOOL A - valve
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
39
153937A1
BACK-UP RING
RING - backup
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
40
154443A1
O-RING
- seal, replaces 159988A1, O-ring
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
42
153940A1
BACK-UP RING
RING - backup
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
Part of Seal Kit, P/N 165698A1
1шт.
43
160197A1
FILTER
- valve
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
44
165712A1
RING, SNAP
RING - snap
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
45
151026A1
PLUG
- port
3шт.
46
155483A1
PLUG
- port
1шт.
47
151030A1
PLUG
- port
1шт.
48
NSS
NOT SOLD SEPARAT
PLATE - base
1шт.
Part of Base Plate Kit, P/N 165701A1
1шт.
49
155497A1
PLUG
- port
12шт.
50
156880A1
ORIFICE
PLUG - orifice, base plate
2шт.
51
NSS
NOT SOLD SEPARAT
ORIFICE - base plate
2шт.
165698A1
SEAL KIT
KIT - seal, motor, Includes: Ref. 3, 13, 20, 25, 26, 31, 32, 34, 39, 40, 41, 42 and Ref. 1, 6, 22, 23, 27, 33 and 37 on Figure 6-8
1шт.
165701A1
KIT
- base plate, Includes: Ref. 12, 13, 14, 15, 16, 37, 38, 39, 40, 41, 42, 43, 44 and 48
1шт.
