Запчасти Case 9050B (6-08) - TRACK DRIVE MOTOR ASSEMBLY, SHAFT, CYLINDER BLOCK AND PISTONS *TIMBER KING MODELS (06) - POWER TRAIN

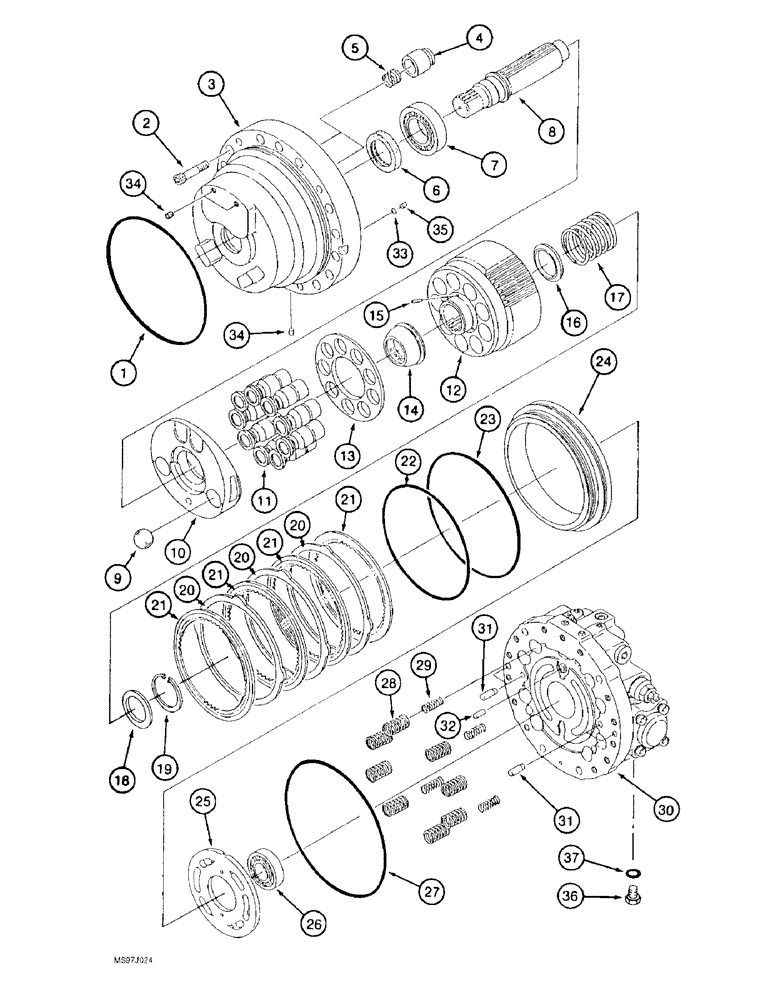

Схема запчастей Case 9050B - (6-08) - TRACK DRIVE MOTOR ASSEMBLY, SHAFT, CYLINDER BLOCK AND PISTONS *TIMBER KING MODELS (06) - POWER TRAIN
27
26
37
31
34
12
21
16
9
22
3
21
29
36
25
31
6
24
35
7
20
23
8
14
21
10
18
5
21
32
11
13
15
20
20
4
28
30
1
17
19
2
33
34

Артикул

Название

Примечание

Количество

165685A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 37

2шт.

1

163954A1

O-RING

- housing

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

2

861-14110

HEX SOC SCREW,M14 x 110mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 110 mm, class 12.9

3шт.

165700A1

KIT

- motor housing, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - motor

2шт.

5

165680A1

PLUG

SPRING - piston

2шт.

6

165719A1

OIL SEAL

SEAL - oil

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

7

165707A1

BEARING, ROLLER,50 mm ID x 90 mm OD x 20 mm

BEARING - roller

1шт.

8

165671A1

SHAFT

- motor

1шт.

9

165706A1

BALL

- steel

2шт.

10

165692A1

PLATE

- swash

1шт.

LS00156

SET OF PARTS

KIT - cylinder block, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

165699A1

KIT

- retainer plate, piston, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - piston retainer

1шт.

14

NSS

NOT SOLD SEPARAT

SEPARATOR - piston

1шт.

15

165682A1

COTTER PIN

PIN - retainer

3шт.

16

165693A1

SPRING SEAT

SEAT - spring

1шт.

17

165705A1

SPRING

- cylinder block

1шт.

18

165694A1

SPRING SEAT

COLLAR - spring seat

1шт.

19

165713A1

RING, SNAP

RING - snap, special

1шт.

20

165696A1

PLATE

- friction

3шт.

21

165697A1

DISC

PLATE - separator

4шт.

22

165721A1

SEALING RING

RING - seal, brake piston, inner

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

23

165720A1

OIL SEAL

RING - seal, brake piston, outer

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

24

165695A1

JACK PISTON

PISTON - brake

1шт.

25

165691A1

LARGE PLATE

PLATE - valve

1шт.

26

165708A1

BEARING, ROLLER, CYL,35 mm ID x 72 mm OD x 17 mm

BEARING - roller

1шт.

27

155220A1

O-RING

- housing to base plate

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

28

156090A1

SPRING

- valve, brake piston, outer

8шт.

29

156092A1

SPRING

- valve, brake piston, inner

4шт.

30

REF

INSTRUCTION

PLATE ASSEMBLY - base, parts list Figure 6-10

1шт.

31

155579A1

COTTER PIN

PIN - dowel

4шт.

32

155578A1

PIN

- dowel

1шт.

33

154463A1

O-RING

- orifice

1шт.

Part of Seal Kit, P/N 165698A1

1шт.

34

155479A1

PLUG

- port

6шт.

35

NSS

NOT SOLD SEPARAT

PLUG - orifice, housing

1шт.

36

155483A1

PLUG

- port

2шт.

37

154487A1

O-RING

- plug

2шт.

Part of Seal Kit, P/N 165698A1

1шт.

165698A1

SEAL KIT

KIT - seal, motor, Includes: Ref. 1, 6, 22, 23, 27, 33 and 37, and Ref. 3, 13, 20, 25, 26, 31, 32, 34 and 39 - 42 on Figure 6-10

1шт.
