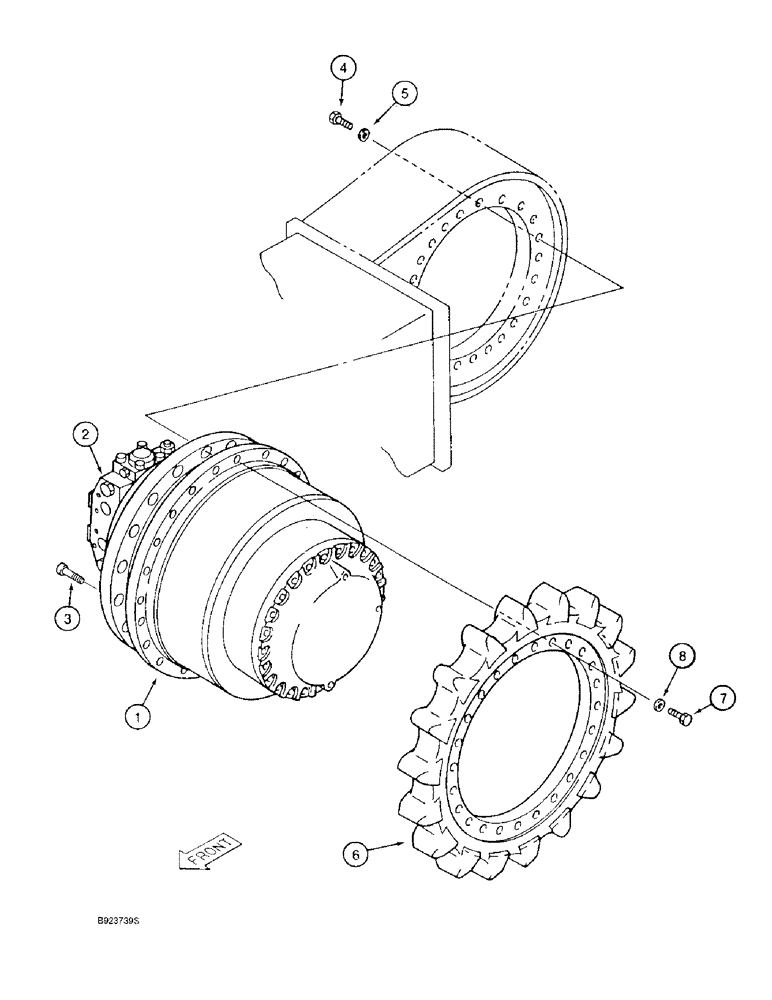

Запчасти Case 9050B (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

162086A1

MOTOR

ASSEMBLY - track drive, with transmission, Includes: Ref. 1 - 3

2шт.

1

165686A1

MOTO-REDUCTION GEAR

TRANSMISSION ASSEMBLY - final drive, without track drive motor, parts list Figure 6-4

1шт.

2

165685A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, parts list Figure 6-8

1шт.

3

861-14110

HEX SOC SCREW,M14 x 110mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 110 mm, class 12.9

3шт.

4

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

40шт.

5

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

40шт.

6

162095A1

WHEEL GEAR

SPROCKET - track drive

2шт.

7

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

8

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special, 20 mm

48шт.
