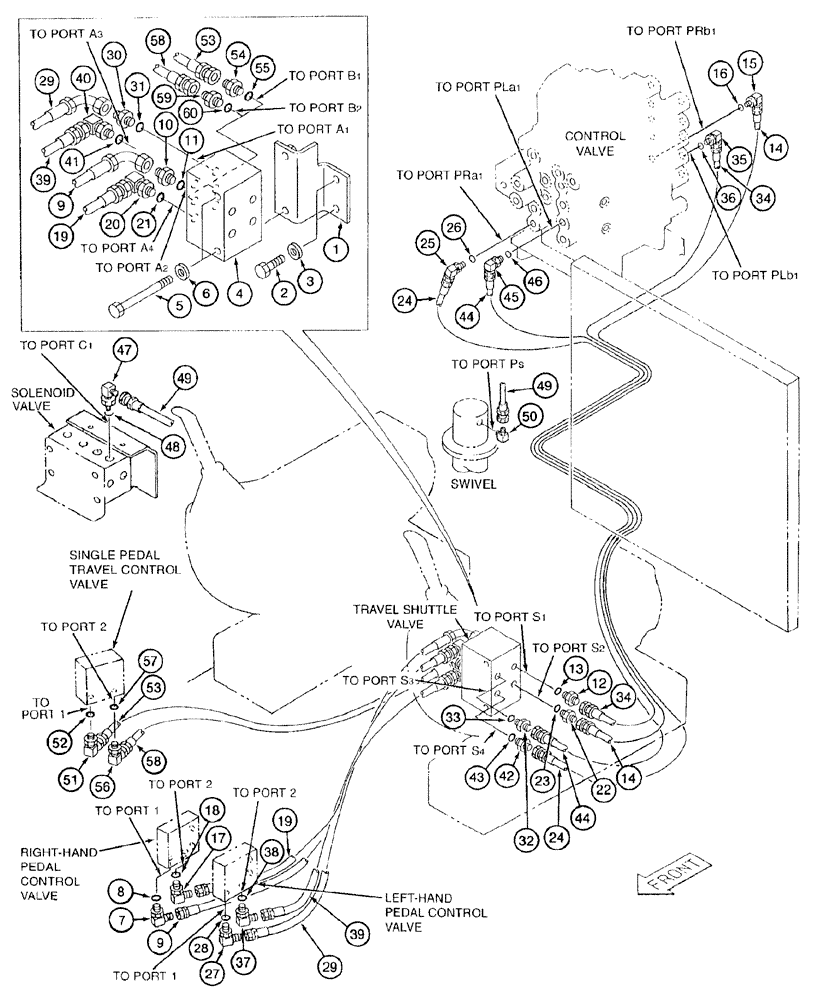

Запчасти Case 9050B (8-090) - TRAVEL CONTROL LINES,PIN EAC0501122 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
159042A1
BRACKET
valve mounting
1шт.
3
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
2шт.
4
KHJ17130
VALVE SECTION
ASSEMBLY - shuttle, one pedal travel, parts list figure 8-214; Replaces 160355A1
1шт.
5
828-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9
2шт.
6
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
2шт.
7
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 8
1шт.
8
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
9
159043A1
HOSE ASSY.
470 mm (18-1/2 inch) long, right-hand forward travel line (right-hand pedal control valve port "1" to travel shuttle valve port "A2")
1шт.
10
162554A1
FITTING
special, right-hand travel lines, Includes: Ref. 11
1шт.
11
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
12
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, right-hand travel lines, Includes: Ref. 13
1шт.
13
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
14
161293A1
HOSE
3600 mm (141-3/4 inch) long, RH forward travel line (Travel shuttle valve port "S2" to control valve port "PRb1") (Also activated with single-pedal travel)
1шт.
15
156554A1
ELBOW
90 degree, special, right-hand travel lines, Includes: Ref. 16
1шт.
16
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
17
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 18
1шт.
18
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
19
156735A1
HOSE,6.3 mm ID x 350.00 mm
350 mm (13-3/4 inch) long, right-hand backward travel line (right-hand pedal control valve port "2" to travel shuttle valve port "A4")
1шт.
20
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 21
1шт.
21
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
22
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, right-hand travel lines, Includes: Ref. 23
1шт.
23
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
24
159005A1
HOSE
3250 mm (127-15/16 inch) long, right-hand backward travel line (single-pedal shuttle valve port "S4" to control valve port "PRa1") (also activated with single-pedal travel)
1шт.
25
156554A1
ELBOW
90 degree, special, right-hand travel lines, Includes: Ref. 26
1шт.
26
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
27
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 28
1шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
29
165112A1
HOSE ASSY.
580 mm (22-7/8 inch) long, left-hand forward travel line (left-hand pedal control valve port "1" to travel shuttle valve port "A1")
1шт.
30
162554A1
FITTING
special, right-hand travel lines, Includes: Ref. 31
1шт.
31
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
32
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, right-hand travel lines, Includes: Ref. 33
1шт.
33
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
34
161293A1
HOSE
3600 mm (141-3/4 inch) long, LH forward travel line (Travel shuttle valve port "S1" to control valve port "PLb1") (Also activated with single-pedal travel)
1шт.
35
156554A1
ELBOW
90 degree, special, right-hand travel lines, Includes: Ref. 36
1шт.
36
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
37
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 38
1шт.
38
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
39
152793A1
HOSE ASSY.
450 mm (17-3/4 inch) long, left-hand backward travel line (left-hand pedal control valve port "2" to travel shuttle valve port "A3")
1шт.
40
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand travel lines, Includes: Ref. 41
1шт.
41
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
42
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, right-hand travel lines, Includes: Ref. 43
1шт.
43
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand travel lines
1шт.
44
151904A1
HOSE,6.3mm ID x 3100mm L
LH backward travel line (Single-pedal shuttle valve port "S" to control valve port "PLa1") (Also activated with single-pedal travel)
1шт.
45
156554A1
ELBOW
90 degree, special, right-hand travel lines, Includes: Ref. 46
1шт.
46
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand travel lines
1шт.
47
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, high speed signal line, Includes: Ref. 48
1шт.
48
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, high speed signal line
1шт.
49
157790A1
HOSE,6.3mm ID x 3000mm L
3000 mm (118-1/8 inch) long, high speed travel signal line (solenoid valve port "C1" to swivel port "Ps")
1шт.
50
153596A1
ADAPTER
ELBOW - 90 degree, high speed signal line
1шт.
51
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, single-pedal travel lines, Includes: Ref. 52
1шт.
52
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, single-pedal travel lines
1шт.
53
152775A1
HOSE ASSY.
500 mm (19-3/4 inch) long, single-pedal forward travel line (single-pedal control valve port "1" to travel shuttle valve port "B1")
1шт.
54
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, single-pedal travel lines, Includes: Ref. 55
1шт.
55
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, single-pedal travel lines
1шт.
56
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, single-pedal travel lines, Includes: Ref. 57
1шт.
57
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, single-pedal travel lines
1шт.
58
151862A1
HOSE,63.00 mm ID x 400.00 mm
Single-pedal backward travel line (Single-pedal control valve port "2" to travel shuttle valve port "B2")
1шт.
59
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, single-pedal travel lines, Includes: Ref. 60
1шт.
60
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, single-pedal travel lines
1шт.
