(8-088) - SWIVEL AND SWING MOTOR DRAIN LINES

Запчасти Case 9050B (8-088) - SWIVEL AND SWING MOTOR DRAIN LINES (08) - HYDRAULICS

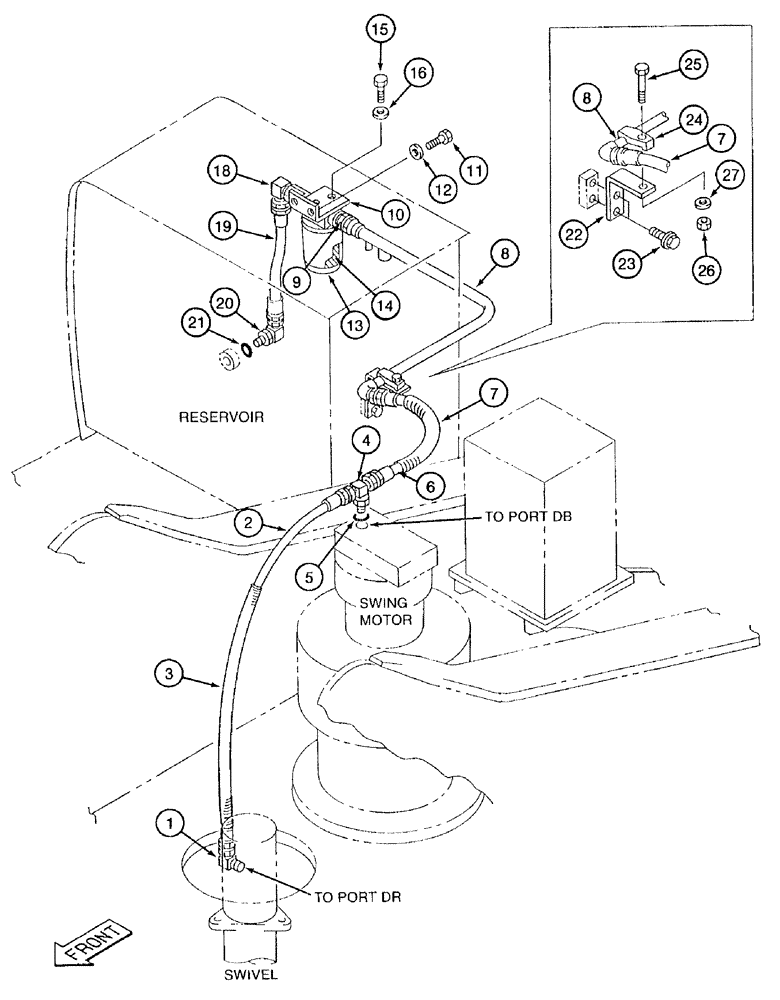

Схема запчастей Case 9050B - (8-088) - SWIVEL AND SWING MOTOR DRAIN LINES (08) - HYDRAULICS
4
8
18
14
21
26
5
23
7
12
24
3
7
15
13
2
22
9
6
25
16
1
11
8
19
20
27
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153438A1

ELBOW

90 degree, special

1шт.

2

163115A1

HYDRAULIC HOSE,19.00 mm ID x 1100.00 mm

Swivel port "DR" to tee in swing motor port "DB"

1шт.

3

157866A1

PLASTIC-RUBBER TUBE,28 mm ID, 34 mm OD, 1000 mm Length

SLEEVE - corrugated, 600 mm (23-5/8 inch) long

1шт.

4

163114A1

TEE

in swing motor port "DB", Includes: Ref. 5

1шт.

5

154487A1

O-RING

tee

1шт.

6

162356A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

From tee in swing motor port "DB" to filter supply tube

1шт.

7

157864A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 600 mm (23-5/8 inch) long

1шт.

8

162358A1

TUBE ASSY.,21.6 mm ID, 27.2 mm OD

filter supply

1шт.

9

159088A1

ADAPTER

straight, used with 150792A1 filter

1шт.

9a

169040A1

ADAPTER

straight, with O-ring, used with 169041A1 filter, not shown

1шт.

10

173100A1

BRACKET

mounting

1шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

12

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

150792A1

FILTER ASSY

ASSEMBLY - oil, ported for tube fittings, see ref 9 and 18

1шт.

13a

169041A1

FILTER ASSY

ASSEMBLY - oil, ported for O-ring fittings, see ref 9A and 18A, not shown, Includes: Ref. 14

1шт.

14

150794A1

HYDRAULIC OIL FILTER

ELEMENT - for 150792A1 or 169041A1 filter assembly

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

16

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

18

150724A1

ADAPTER

ELBOW - 90 degree, used with 150792A1 filter

1шт.

18a

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

90 degree, with O-ring, used with 169041A1 filter, not shown

1шт.

19

162359A1

HYDRAULIC HOSE,25.40 mm ID x 380.00 mm

Filter to reservoir

1шт.

20

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

90 degree, Includes: Ref. 21

1шт.

21

154523A1

O-RING

elbow

1шт.

22

162357A1

BRACKET

mounting

1шт.

23

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

2шт.

24

151486A1

CLAMP BRACKET

tube

1шт.

25

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

26

829-1412

NUT,M12, Cl 10.9

1шт.

27

150811A1

WASHER

flat, special, 12 mm

1шт.
