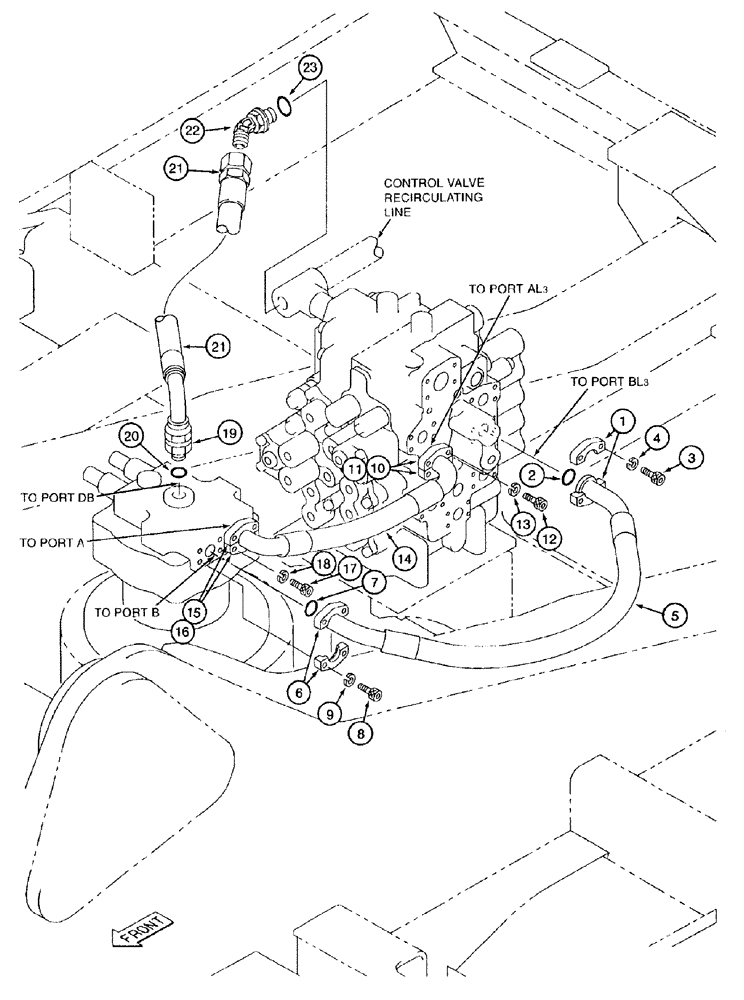

Запчасти Case 9050B (8-086) - SWING MOTOR POWER CIRCUIT (08) - HYDRAULICS

1

A12306

FLANGE

CLAMP - split flange

2шт.

2

155211A1

O-RING

split flange

1шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

173706A1

HOSE

right-hand swing power line (control valve port "BL3" to swing motor port "B")

1шт.

6

A12306

FLANGE

CLAMP - split flange

2шт.

7

155210A1

O-RING

seal, split flange

1шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

A12306

FLANGE

CLAMP - split flange

2шт.

11

155211A1

O-RING

split flange

1шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

173705A1

HOSE

left-hand swing power line (control valve port "AL3" to swing motor port "A")

1шт.

15

A12306

FLANGE

CLAMP - split flange

2шт.

16

155210A1

O-RING

seal, split flange

1шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, Includes: Ref. 20

1шт.

20

154523A1

O-RING

adapter

1шт.

21

173789A1

HOSE

return line from swing motor (swing motor port "DB" to control valve recirculating line)

1шт.

22

157587A1

ELBOW

45 degree, if used, shown

1шт.

22

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

90 degree, if used, not shown, Includes: Ref. 23

1шт.

23

154523A1

O-RING

elbow

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
