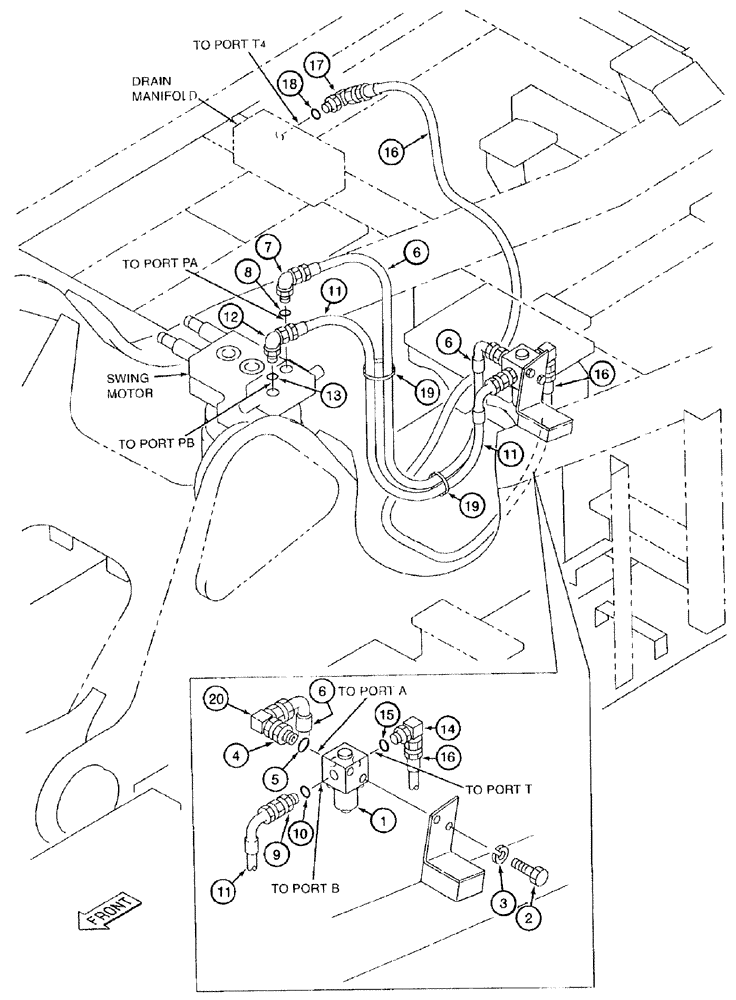

Запчасти Case 9050B (8-084) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

159205A1

VALVE

ASSEMBLY - solenoid, free swing, parts list on figure 8-178

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

162366A1

ADAPTER

special, with orifice, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

6

162365A1

HYDRAULIC HOSE,6.30 mm ID x 1200.00 mm

Metering line (From solenoid valve port "A" to swing motor port "PA")

1шт.

7

158784A1

ELBOW

90 degree, special, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

11

162365A1

HYDRAULIC HOSE,6.30 mm ID x 1200.00 mm

(From solenoid valve port "B" to swing motor port "PB")

1шт.

12

158784A1

ELBOW

90 degree, special, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

16

157853A1

HOSE,6.3 mm ID x 2050.00 mm

2050 mm (80-1 1/16 inch) long (from solenoid valve port "T" to drain manifold port "T4")

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

19

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.

20

163814A1

ELBOW

90 degree, special

1шт.
