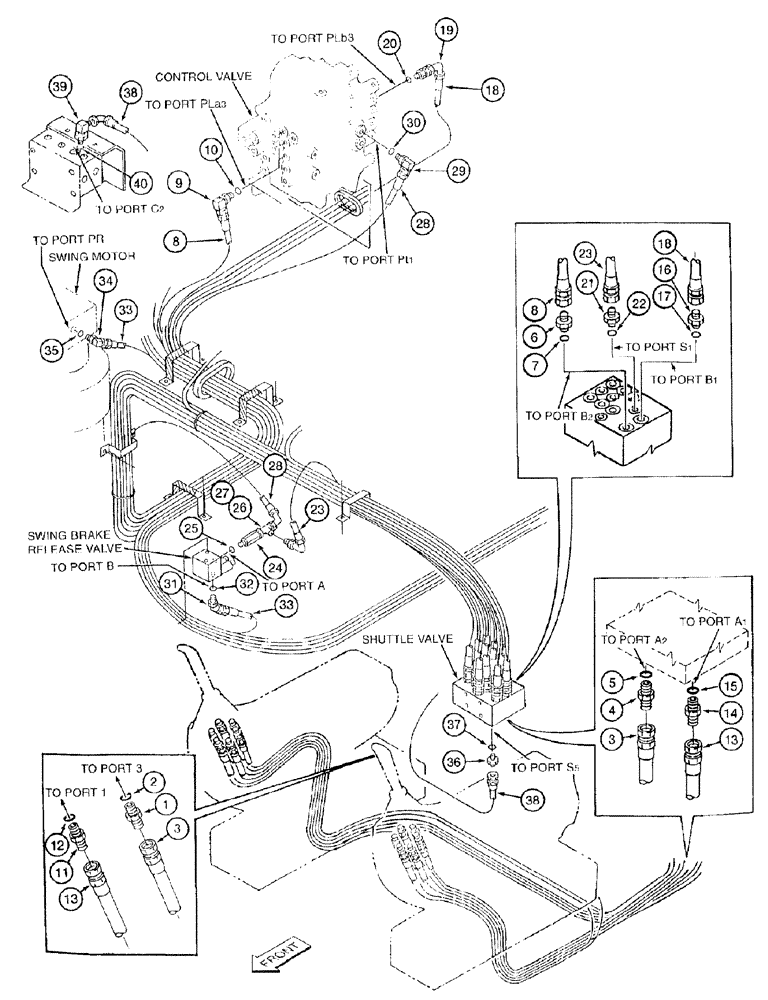

Запчасти Case 9050B (8-080) - SWING CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152747A1
ADAPTER
straight, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter
1шт.
3
159215A1
HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm
LH swing line (LH manual control valve port "3" to shuttle valve port "A2")
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, Includes: Ref. 5
1шт.
5
154475A1
O-RING
adapter
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, Includes: Ref. 7
1шт.
7
154475A1
O-RING
adapter
1шт.
8
157972A1
HOSE ASSY.
2900 mm (114-3/16 inch) long, left-hand swing line (shuttle valve port "B2" to control valve port "PLa3")
1шт.
9
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
90 degree, Includes: Ref. 10
1шт.
10
154475A1
O-RING
elbow
1шт.
11
152747A1
ADAPTER
straight, right-hand swing lines, Includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand swing lines
1шт.
13
159216A1
HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm
RH swing line (LH controller port "1" to shuttle valve port "A1")
1шт.
14
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, right-hand swing lines, Includes: Ref. 15
1шт.
15
154475A1
O-RING
adapter, right-hand swing lines
1шт.
16
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, right-hand swing lines, Includes: Ref. 17
1шт.
17
154475A1
O-RING
adapter, right-hand swing lines
1шт.
18
159010A1
HYDRAULIC HOSE,9.50 mm ID x 3300.00 mm
RH swing line (Shuttle valve port "B1" to control valve port "PLb3")
1шт.
19
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, right-hand swing lines, Includes: Ref. 20
1шт.
20
154475A1
O-RING
adapter, right-hand swing lines
1шт.
21
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, right-hand swing lines, Includes: Ref. 22
1шт.
22
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand swing lines
1шт.
23
255423A1
HOSE ASSY.
700 mm (27-9/16 inch) long, swing brake release signal line (shuttle valve port "S1" to tee at swing brake release valve port "A"), right-hand
1шт.
24
162525A1
STUD
ADAPTER - straight, special, right-hand swing lines, Includes: Ref. 25
1шт.
25
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, right-hand swing lines
1шт.
26
159497A1
TEE
special, right-hand swing lines, Includes: Ref. 27
1шт.
27
154467A1
O-RING,10.8mm ID x 2.4mm Width
tee, right-hand swing lines
1шт.
28
161166A1
HOSE ASSY.
2150 mm (84-5/8 inch) long, swing brake release drain line (boom priority override) (tee at port "A" of swing brake release valve to control valve port "Pt1"), right-hand
1шт.
29
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand swing lines, Includes: Ref. 30
1шт.
30
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand swing lines
1шт.
31
150933A1
ELBOW
45 degree, right-hand swing lines, Includes: Ref. 32
1шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand swing lines
1шт.
33
152773A1
HOSE ASSY.
1850 mm (72-13/16 inch) long, swing brake release signal line (swing brake release valve port "B" to swing motor port "PR"), right-hand
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, right-hand swing lines, Includes: Ref. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, right-hand swing lines
1шт.
36
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, swing shut-off line, Includes: Ref. 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, swing shut-off line
1шт.
38
162650A1
HOSE,3500.00 mm
swing shut-off signal line (from shuttle valve port "S5" to solenoid valve port "C2")
1шт.
39
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, swing shut-off line, Includes: Ref. 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, swing shut-off line
1шт.
Выбрано товаров: 40
