Запчасти Case 9050B (8-078) - BUCKET CYLINDER LINES, P.I.N. EAC0501270 AND AFTER, ALL ARMS, MODELS WITH 4.03 M (133") ARM ONLY (08) - HYDRAULICS

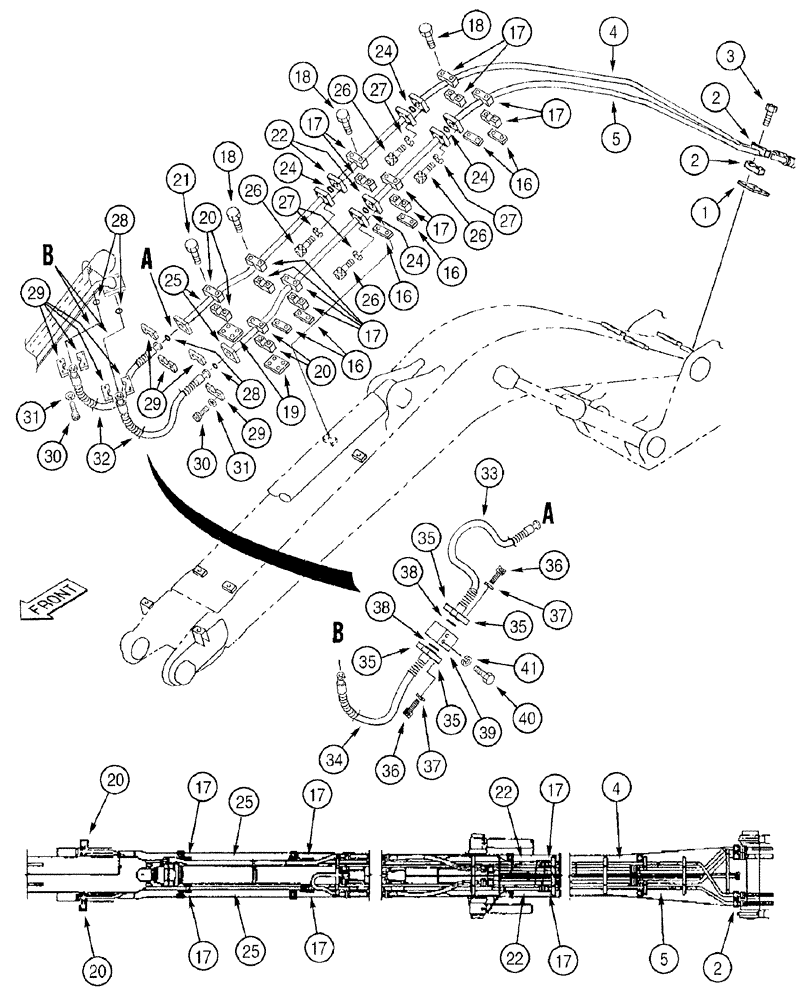

Схема запчастей Case 9050B - (8-078) - BUCKET CYLINDER LINES, P.I.N. EAC0501270 AND AFTER, ALL ARMS, MODELS WITH 4.03 M (133") ARM ONLY (08) - HYDRAULICS
26
29
31
30
2
28
2
35
35
18
24
1
36
20
16
29
17
20
4
17
35
25
22
33
39
3
19
24
21
17
25
20
27
29
22
37
20
38
26
16
24
17
2
35
32
34
17
37
26
17
30
18
17
16
17
27
24
17
16
31
17
5
41
22
36
26
28
17
40
25
27
5
4
38
18

Артикул

Название

Примечание

Количество

1

171806A1

PLATE

support, tube clamp, four hole, all arms

2шт.

2

171808A1

CLAMP

tube, all arms

4шт.

3

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

All arms

8шт.

4

173893A1

TUBE

bucket, close line, all arms

1шт.

5

173894A1

TUBE

bucket, open line, all arms

1шт.

16

171805A1

PLATE

support, tube clamp, two hole, all arms

6шт.

17

171808A1

CLAMP

tube, all arms

6шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

All arms

12шт.

19

171806A1

PLATE

support, tube clamp, four hole, tube, all arms

2шт.

20

171808A1

CLAMP

tube, all arms

4шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

All arms

8шт.

22

173896A1

TUBE

bucket line, all arms

2шт.

24

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Tube, all arms

4шт.

25

171809A1

TUBE

bucket line, all arms

2шт.

26

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

All arms

16шт.

27

892-11012

LOCK WASHER,M12

All Arms

16шт.

28

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Hose, all arms

4шт.

29

150561A1

FLANGE

split, all arms

8шт.

30

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

hex socket, 12 - 1.75 x 50 mm, class 12.9, all arms

16шт.

31

112312A1

LOCK WASHER

lock, 12 mm, all arms

16шт.

32

173905A1

HOSE ASSY.

2.63 M (8 foot 8 inch) arm only,all

2шт.

32

173903A1

HOSE ASSY.

3.23 M (10 foot 7 inch) arm only, all

2шт.

33

173907A1

HOSE ASSY.

at top of arm to manifold, models with 4.03 M (13 foot 3 inch) arm only

2шт.

34

173908A1

HOSE ASSY.

manifold to cylinder, models with 4.03 M (13 foot 3 inch) arm only

2шт.

35

150561A1

FLANGE

split, models with 4.03 M (13 foot 3 inch) arm only

8шт.

36

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

hex socket, 12 - 1.75 x 50 mm, class 12.9, models with 4.03 M (13 foot 3 inch) arm only

16шт.

37

112312A1

LOCK WASHER

lock, 12 mm, model with 4.03 M (13 foot 3 inch) arm only

16шт.

38

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Hose, models with 4.03 M (13 foot 3 inch) arm only

4шт.

39

171822A1

MANIFOLD

hydraulic, models with 4.03 M (13 foot 3 inch) arm only

2шт.

40

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Models with 4.03 M (13 foot 3 inch) arm only

4шт.

41

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

Models with 4.03 M (13 foot 3 inch) arm only

4шт.

42

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Not shown, Models with 4.03 M (13 foot 3 inch) arm only

4шт.

Выбрано товаров: 32
