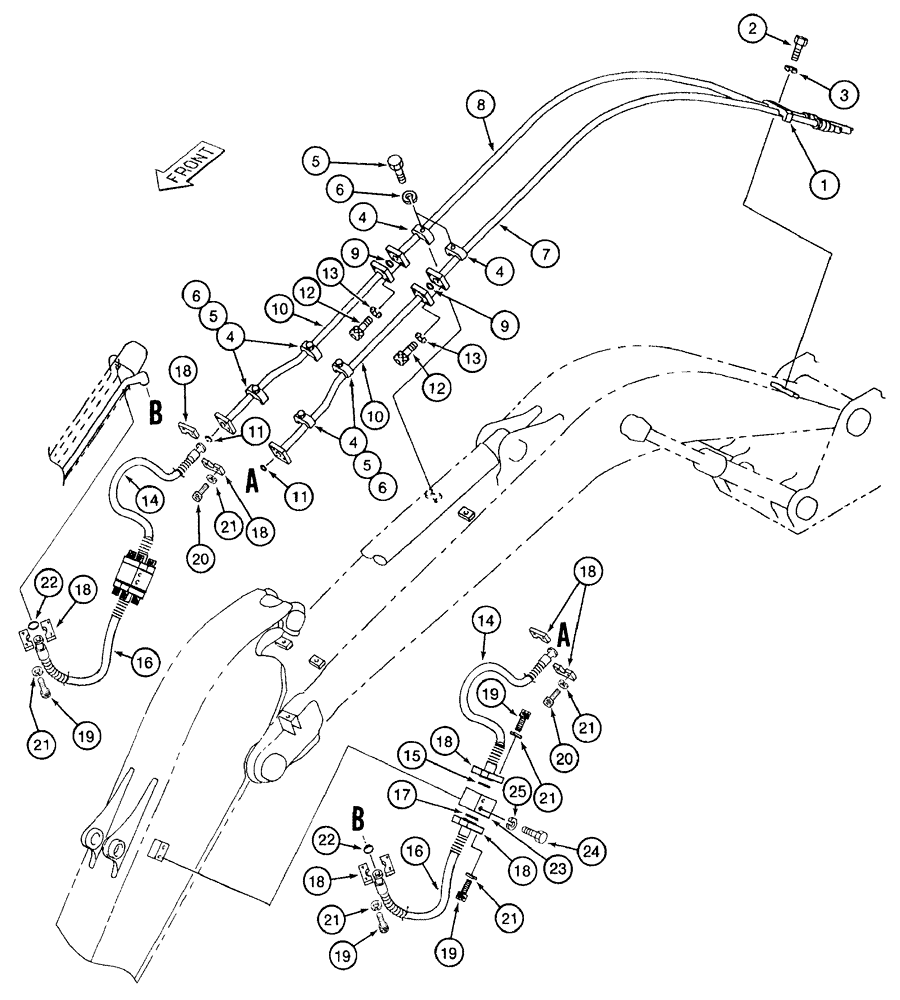

Запчасти Case 9050B (8-076) - BUCKET CYLDR LINES,PRIOR TO PIN EAC0501270,4.03M(133") ARM, BUCKET-OPEN & CLOSE LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162595A1
CLAMP
bucket cylinder lines
2шт.
2
827-16080
BOLT,Hex, M16 x 2 x 80mm, Cl 10.9
1шт.
3
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
1шт.
4
150777A1
COLLAR
bucket cylinder lines
6шт.
5
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
6шт.
6
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
6шт.
7
162599A1
TUBE,26 mm ID, 34 mm OD
bucket-open line, left-hand side of boom, and bucket-close lines
1шт.
8
162598A1
TUBE,26 mm ID, 34 mm OD
bucket-close line, right-hand side of boom, and bucket-open
1шт.
9
154548A1
O-RING
tube, bucket-open and bucket-close lines
2шт.
10
173115A1
HYD TUBE
hydraulic, bucket-open and bucket-close opens
2шт.
11
162246A1
O-RING
tube, bucket-open and bucket-close lines
2шт.
12
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Bucket-open and bucket-close lines
8шт.
13
112309A1
LOCK WASHER
lock, special, bucket-open and bucket-close lines
8шт.
14
173016A1
HOSE ASSY.
1830 mm (72 inch) long, bucket-open and bucket-close lines, Includes: Ref. 15
2шт.
15
162246A1
O-RING
hose, bucket-open and bucket-close lines
1шт.
16
173015A1
HOSE ASSY.
2000 mm (78-3/4 inch) long, bucket-open and bucket-close lines, Includes: Ref. 17
2шт.
17
162246A1
O-RING
hose, bucket-open and bucket-close lines
1шт.
18
A12306
FLANGE
CLAMP - split flange, bucket-open and bucket-close lines
16шт.
19
862-10040
HEX SOC SCREW,M10 x 40mm, Cl 12.9
Bucket-open and bucket-close lines
24шт.
20
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Bucket-open and bucket-close lines
8шт.
21
112309A1
LOCK WASHER
lock, special, bucket-open and bucket-close lines
32шт.
22
162246A1
O-RING
hose, bucket-open and bucket-close lines
2шт.
23
173121A1
MANIFOLD
hydraulic, bucket-open and bucket-close lines
2шт.
24
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
Bucket-open and bucket-close lines
4шт.
25
892-11012
LOCK WASHER,M12
Bucket-Open and Bucket-Close Lines
4шт.
Выбрано товаров: 25
