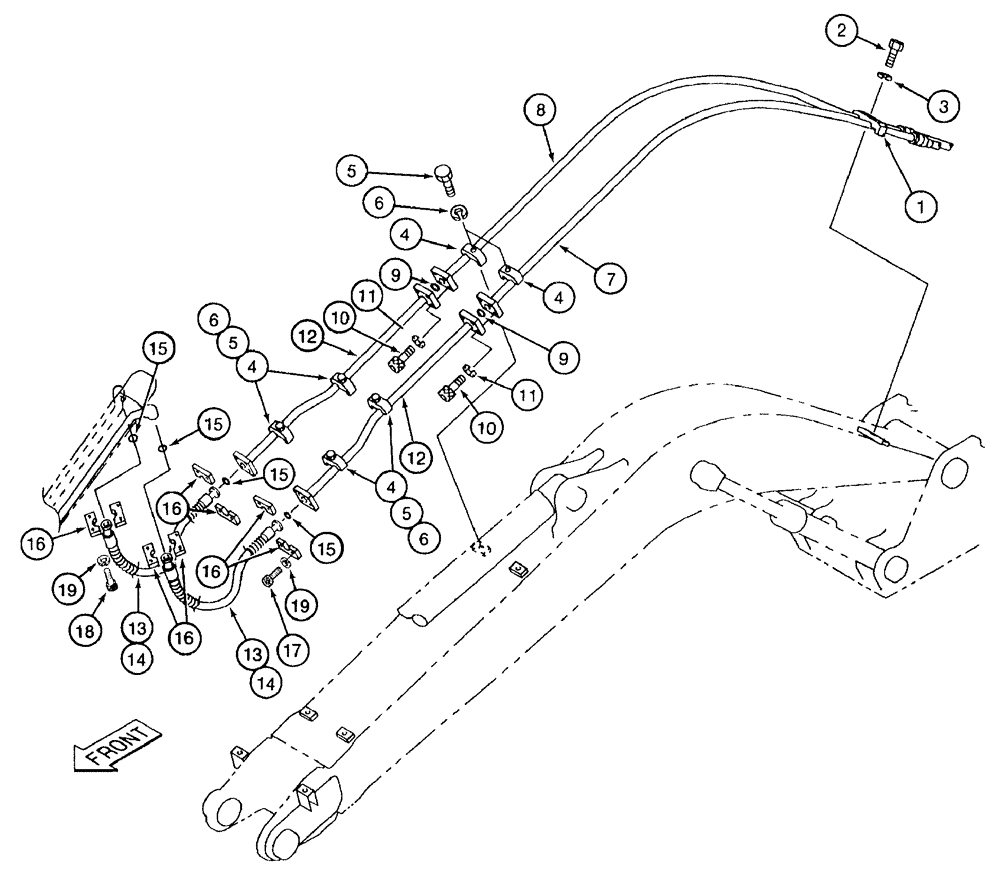

Запчасти Case 9050B (8-074) - BUCKET CYLDR LINES,PRIOR TO PIN EAC0501270,2.63M(88") & 3.23M(107") ARMS,BUCKET-OPEN & CLOSE LINES (08) - HYDRAULICS

1

162595A1

CLAMP

bucket cylinder lines

2шт.

2

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

4

150777A1

COLLAR

bucket cylinder lines

6шт.

5

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

6шт.

7

162599A1

TUBE,26 mm ID, 34 mm OD

bucket-open line, left-hand side of boom, and bucket-close

1шт.

8

162598A1

TUBE,26 mm ID, 34 mm OD

bucket-close line, right-hand side of boom, and bucket-open

1шт.

9

154548A1

O-RING

tube, bucket-open and bucket-close lines

2шт.

10

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

Bucket-open and bucket-close lines

8шт.

11

112309A1

LOCK WASHER

lock, special, bucket-open and bucket-close lines

8шт.

12

173115A1

HYD TUBE

hydraulic, bucket-open and bucket-close lines

2шт.

13

173015A1

HOSE ASSY.

2000 mm (78-3/4 inch) long, for 2.63 M (8 foot 8 inch) arm, bucket-open and bucket-close lines

2шт.

14

173016A1

HOSE ASSY.

1830 mm (72 inch) long, for 3.23 M (10 foot 7 inch) arm, bucket-open and bucket-close lines, Includes: Ref. 15

2шт.

15

162246A1

O-RING

hose, bucket-open and bucket-close lines

4шт.

16

A12306

FLANGE

CLAMP - split flange, bucket-open and bucket-close lines

8шт.

17

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

Bucket-open and bucket-close lines

8шт.

18

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

Bucket-open and bucket-close lines

8шт.

19

112309A1

LOCK WASHER

lock, special, bucket-open and bucket-close lines

16шт.
