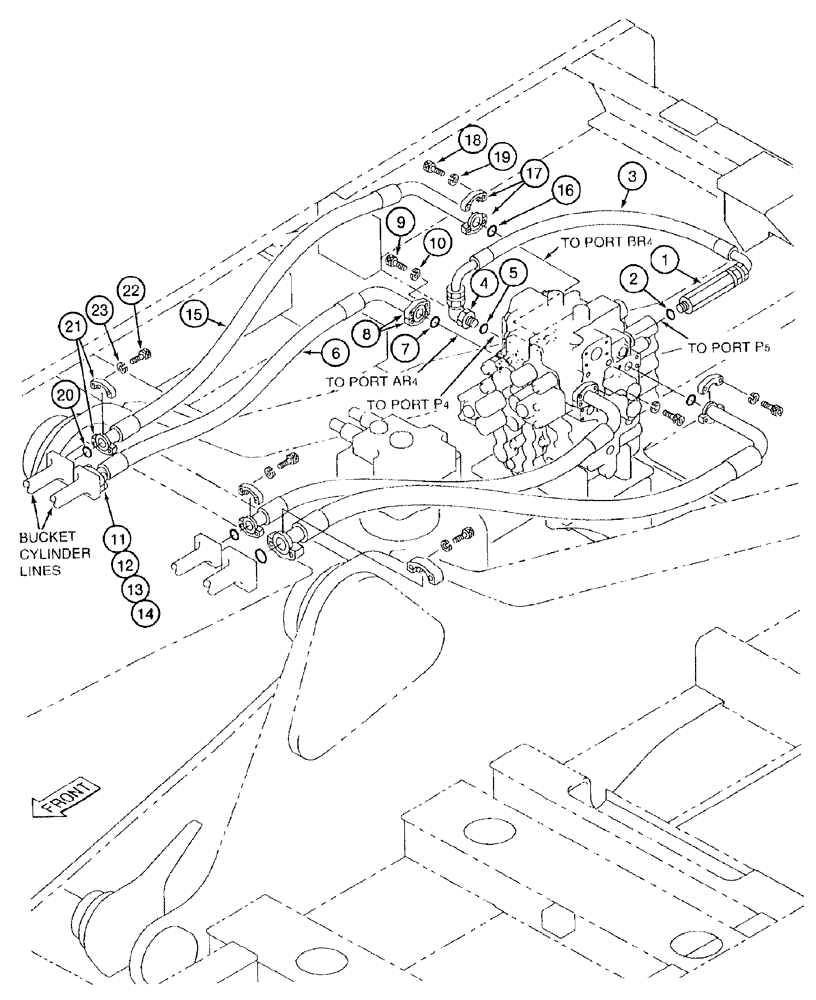

Запчасти Case 9050B (8-072) - BUCKET CYLINDER SUPPLY LINES, P.I.N. EAC0501270 AND AFTER, BUCKET-OPEN LINES, BUCKET-CLOSE LINES (08) - HYDRAULICS

1

162330A1

STUD

ADAPTER - straight, special, bucket cylinder supply lines, Includes: Ref. 2

1шт.

2

154503A1

O-RING

adapter, bucket cylinder supply lines

1шт.

3

162332A1

HYDRAULIC HOSE,19.00 mm ID x 580.00 mm

Dual flow line (From control valve port "P5" to control valve port "P4"), Bucket cylinder supply line

1шт.

4

159372A1

ELBOW

90 degree, special, bucket cylinder supply line, Includes: Ref. 5

1шт.

5

154503A1

O-RING

elbow, bucket cylinder supply line

1шт.

6

170811A1

HOSE ASSY.

1500 mm (59 inch) long, bucket-open line (control valve port "AR4" to bucket cylinder line)

1шт.

7

155211A1

O-RING

hose, bucket-open lines

1шт.

8

A12306

FLANGE

CLAMP - split flange, bucket-open lines

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

Bucket-open lines

4шт.

10

112309A1

LOCK WASHER

lock, special, bucket-open lines

4шт.

11

155211A1

O-RING

hose, bucket-open lines

1шт.

12

150561A1

FLANGE

split, bucket-open lines

2шт.

13

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

hex socket, 12 - 1.75 x 50 mm, class 12.9, bucket-open lines

4шт.

14

112312A1

LOCK WASHER

lock, 12 mm, bucket-open lines

4шт.

15

170810A1

HOSE ASSY.

1630 mm (64-1/4 inch) long, bucket-close line (control valve port "BR4" to bucket cylinder line)

1шт.

16

155211A1

O-RING

hose, bucket-close lines

1шт.

17

A12306

FLANGE

CLAMP - split flange, bucket-close lines

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

Bucket-close lines

4шт.

19

112309A1

LOCK WASHER

lock, special, bucket-close lines

4шт.

20

155211A1

O-RING

hose, bucket-close lines

1шт.

21

150561A1

FLANGE

split, bucket-close lines

2шт.

22

862-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

hex socket, 12 - 1.75 x 50 mm, class 12.9, bucket-close lines

4шт.

23

112312A1

LOCK WASHER

lock, 12 mm, bucket-close lines

4шт.
