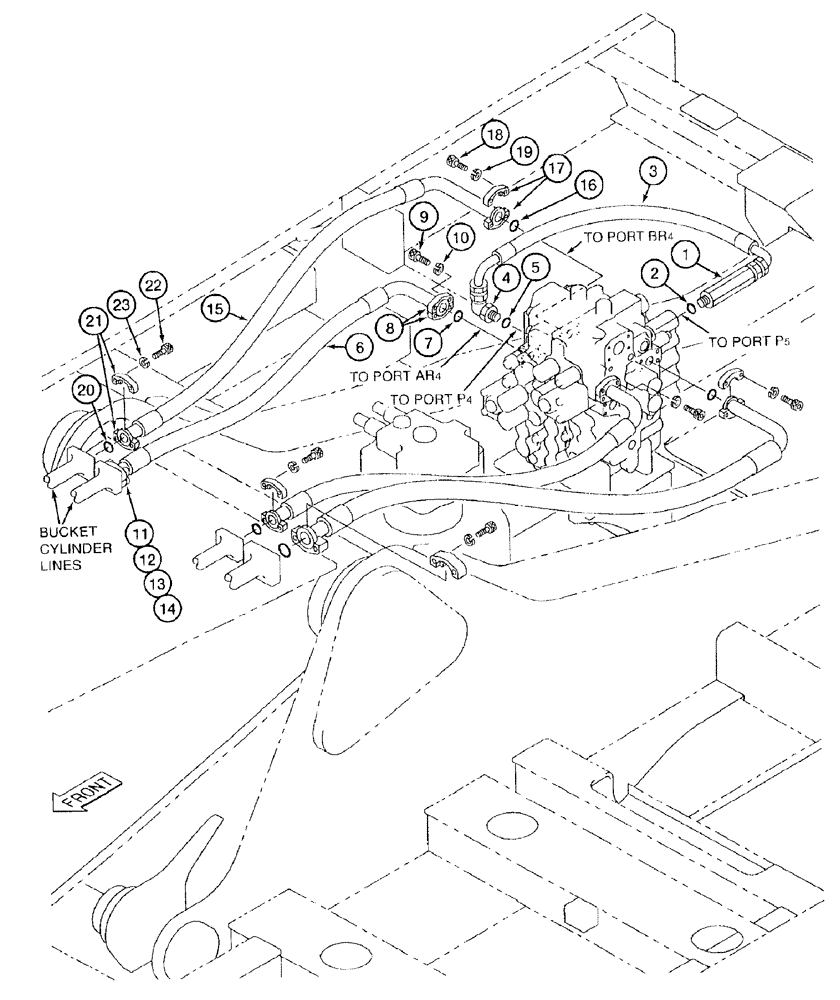

Запчасти Case 9050B (8-070) - BUCKET CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0501270, BUCKET-OPEN LINES, BUCKET-CLOSE LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162330A1
STUD
ADAPTER - straight, special, bucket cylinder supply lines, Includes: Ref. 2
1шт.
3
162332A1
HYDRAULIC HOSE,19.00 mm ID x 580.00 mm
Dual flow line (From control valve port "P5" to control valve port "P4"), Bucket cylinder supply lines
1шт.
4
159372A1
ELBOW
90 degree, special, bucket cylinder supply lines, Includes: Ref. 5
1шт.
6
173264A1
HOSE ASSY.
1550 mm (61 inch) long, bucket-open line (control valve port "AR4" to bucket cylinder line)
1шт.
8
A12306
FLANGE
CLAMP - split flange, bucket-open lines
2шт.
10
112309A1
LOCK WASHER
lock, special, bucket-open lines
4шт.
12
A12306
FLANGE
CLAMP - split flange, bucket-open lines
2шт.
13
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Bucket-open lines
4шт.
14
112309A1
LOCK WASHER
lock, special, bucket-open lines
4шт.
15
173265A1
HOSE ASSY.
1440 mm (56-11/16 inch) long, bucket-close line (control valve port "BR4" to bucket cylinder line)
1шт.
17
A12306
FLANGE
CLAMP - split flange, bucket-close lines
2шт.
19
112309A1
LOCK WASHER
lock, special, bucket-close lines
4шт.
21
A12306
FLANGE
CLAMP - split flange, bucket-close lines
2шт.
22
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Bucket-close lines
4шт.
23
112309A1
LOCK WASHER
lock, special, bucket-close lines
4шт.
9
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
Bucket-open lines
4шт.
18
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
Bucket-close lines
4шт.
Выбрано товаров: 23
