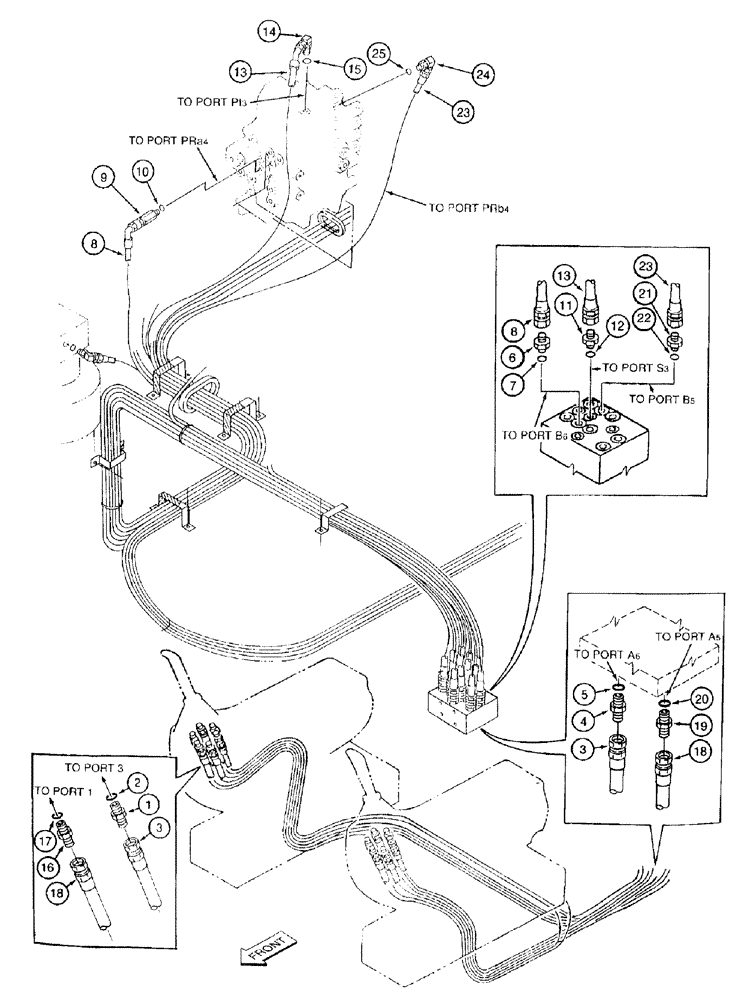

Запчасти Case 9050B (8-068) - BUCKET CONTROL LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

159211A1

HYDRAULIC HOSE

2000 mm (78-3/4 inch) long, bucket-open line (right-hand manual control valve port "3" to shuttle valve port "A6")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

adapter

1шт.

8

163423A1

HYDRAULIC HOSE

2920 mm (114-15/16 inch) long, Bucket-open line (Shuttle valve port "B6" to control valve port "PRa4")

1шт.

9

159226A1

ADAPTER

straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

13

163420A1

HYDRAULIC HOSE

3200 mm (126 inch) long, Bucket-open/close signal line (Shuttle valve port "S3" to control valve port "Pt3")

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

16

152747A1

ADAPTER

straight, bucket-close lines, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, bucket-close lines

1шт.

18

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

Bucket-close line (RH controller port "1" to shuttle valve port "A5")

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, bucket-close lines, Includes: Ref. 20

1шт.

20

154475A1

O-RING

adapter, bucket-close lines

1шт.

21

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, bucket-close lines, Includes: Ref. 22

1шт.

22

154475A1

O-RING

adapter, bucket-close lines

1шт.

23

157973A1

HOSE

3500 mm (137-3/4 inch) long, bucket-close line (shuttle valve port "B5" to control valve port "PRb4")

1шт.

24

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, bucket-close lines, Includes: Ref. 25

1шт.

25

154475A1

O-RING

adapter, bucket-close lines

1шт.
