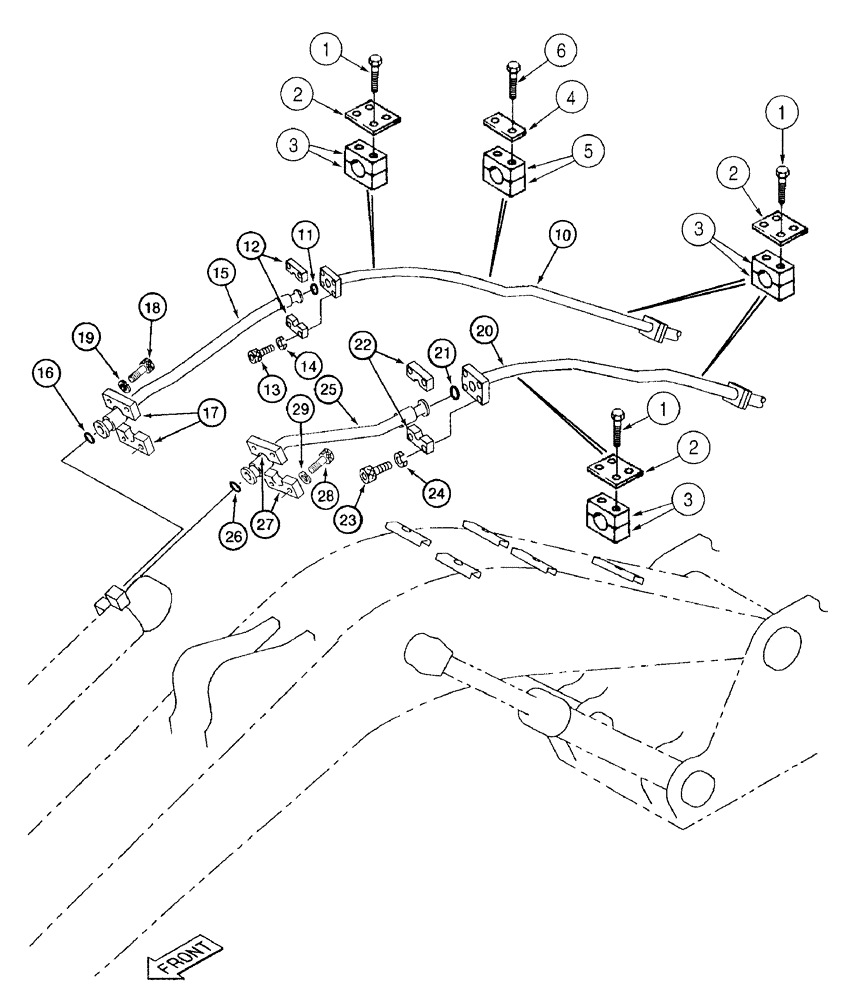

Запчасти Case 9050B (8-066) - ARM CYLINDER LINES, P.I.N. EAC0501270 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
Tube
16шт.
2
171806A1
PLATE
support, tube clamp, four hole
4шт.
3
171807A1
CLAMP
tube, arm cylinder lines
8шт.
4
171805A1
PLATE
support, tube clamp, two hole
2шт.
5
171807A1
CLAMP
tube
2шт.
6
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
4шт.
10
173891A1
TUBE
arm-out line
1шт.
12
150124A1
FLANGE
split, arm-out lines
2шт.
13
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-out lines
4шт.
14
150336A1
SPRING WASHER
lock, 14 mm, arm-out lines
4шт.
15
173022A1
HOSE ASSY.
1130 mm (44-1/2 inch) long, arm-out lines
1шт.
17
150124A1
FLANGE
split, arm-out lines
2шт.
18
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-out lines
4шт.
19
150336A1
SPRING WASHER
straight, bucket-close lines, arm-out lines
4шт.
20
173892A1
TUBE
arm-in lines
1шт.
22
150124A1
FLANGE
split, arm-in lines
2шт.
23
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-in lines
4шт.
24
150336A1
SPRING WASHER
lock, 14 mm, arm-in lines
4шт.
25
173022A1
HOSE ASSY.
1130 mm (44-1/2 inch) long, arm-in lines
1шт.
27
150124A1
FLANGE
split, arm-in lines
2шт.
28
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-in lines
4шт.
29
150336A1
SPRING WASHER
lock, 14 mm, arm-in lines
4шт.
Выбрано товаров: 26
