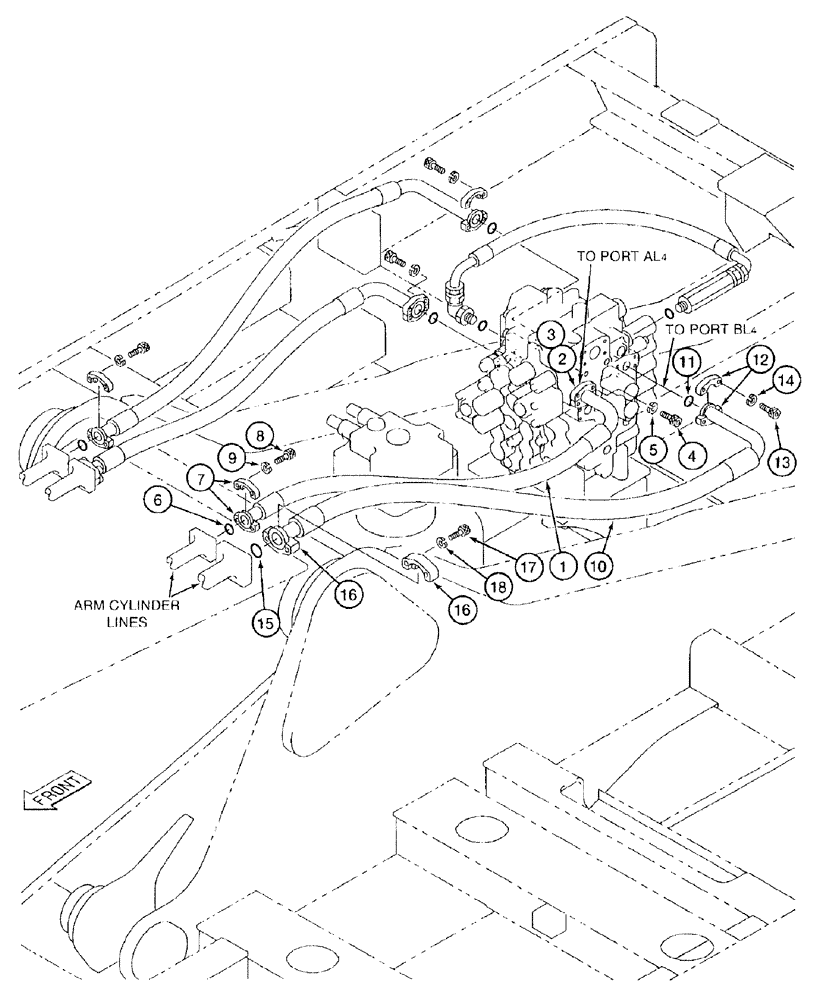

Запчасти Case 9050B (8-062) - ARM CYLINDER SUPPLY LINES, P.I.N. EAC0501270 AND AFTER, ARM-OUT LINES, ARM-IN LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
173719A1
HOSE ASSY.
arm-out line (control valve port "AL4" to arm cylinder line)
1шт.
3
A12306
FLANGE
CLAMP - split flange, arm-out lines
2шт.
4
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
Arm-out lines
4шт.
5
112309A1
LOCK WASHER
lock, special, arm-out lines
4шт.
7
150124A1
FLANGE
split, arm-out lines
2шт.
8
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-out lines
4шт.
9
150336A1
SPRING WASHER
lock, 14 mm, arm-out lines
4шт.
10
173262A1
HOSE ASSY.,31.75mm ID x 1560mm L
1560 mm (61-3/8 inch) long, arm-out line (control valve port "BL4" to arm cylinder line), arm-in lines
1шт.
12
A12306
FLANGE
CLAMP - split flange, arm-in lines
2шт.
13
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
Arm-in lines
4шт.
14
112309A1
LOCK WASHER
lock, special, arm-in lines
4шт.
16
150124A1
FLANGE
split, arm-in lines
2шт.
17
861-14055
HEX SOC SCREW,M14 x 55mm, Cl 12.9
Arm-in lines
4шт.
18
150336A1
SPRING WASHER
lock, 14 mm, arm-in lines
4шт.
Выбрано товаров: 18
