(8-060) - ARM CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0501270, ARM-OUT LINES, ARM-IN LINES

Запчасти Case 9050B (8-060) - ARM CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0501270, ARM-OUT LINES, ARM-IN LINES (08) - HYDRAULICS

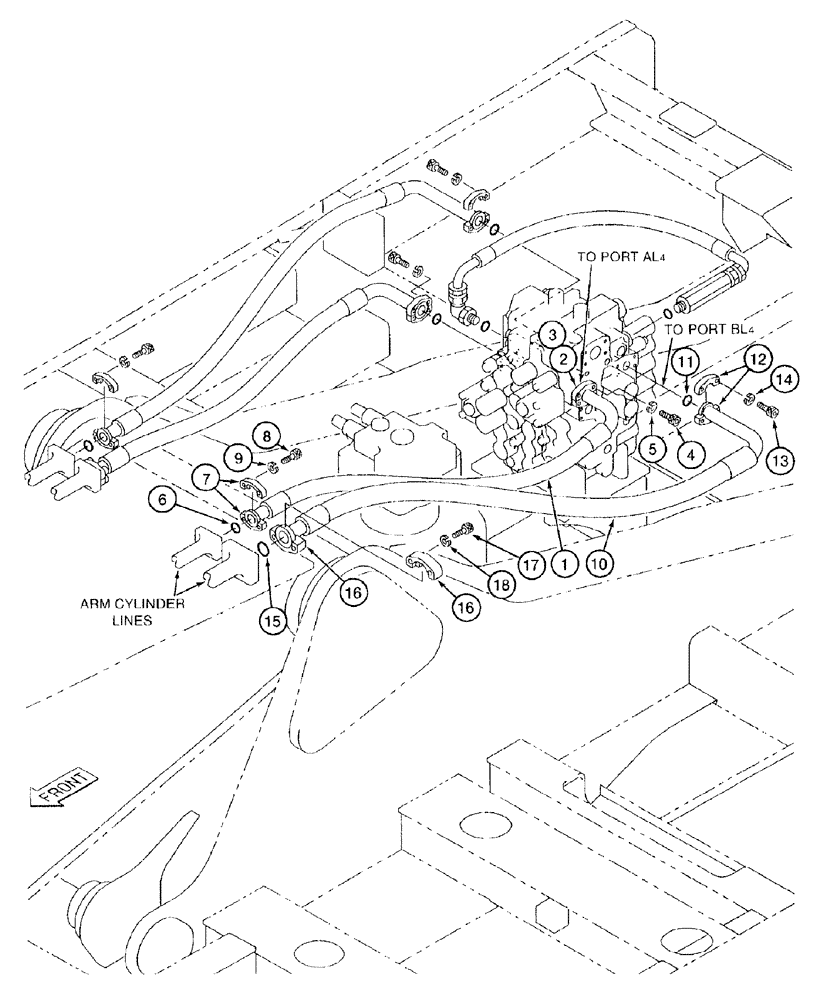

Схема запчастей Case 9050B - (8-060) - ARM CYLINDER SUPPLY LINES, PRIOR TO P.I.N. EAC0501270, ARM-OUT LINES, ARM-IN LINES (08) - HYDRAULICS
12
7
18
4
11
17
9
14
2
3
13
15
16
5
10
8
16
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

173264A1

HOSE ASSY.

1550 mm (61 inch) long, arm-out line (control valve port "AL4" to arm cylinder line)

1шт.

2

155211A1

O-RING

hose, arm-out lines

1шт.

3

A12306

FLANGE

CLAMP - split flange, arm-out lines

2шт.

5

112309A1

LOCK WASHER

lock, special, arm-out lines

4шт.

6

162246A1

O-RING

hose, arm-out lines

1шт.

7

A12306

FLANGE

CLAMP - split flange, arm-out lines

2шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

Arm-out lines

4шт.

9

112309A1

LOCK WASHER

lock, special, arm-out lines

4шт.

10

173262A1

HOSE ASSY.,31.75mm ID x 1560mm L

1560 mm (61-3/8 inch) long arm-out line (control valve port "BL4" to arm cylinder line), arm-in lines

1шт.

11

155211A1

O-RING

hose, arm-in lines

1шт.

12

A12306

FLANGE

CLAMP - split flange, arm-in lines

2шт.

14

112309A1

LOCK WASHER

lock, special, arm-in lines

4шт.

15

164450A1

O-RING

hose, arm-in lines

1шт.

16

150124A1

FLANGE

split, arm-in lines

2шт.

17

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

hex socket, 14 - 2.0 x 50 mm, class 12.9, arm-in lines

4шт.

18

150336A1

SPRING WASHER

lock, 14 mm, arm-in lines

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Arm-out lines

4шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Arm-in lines

4шт.
