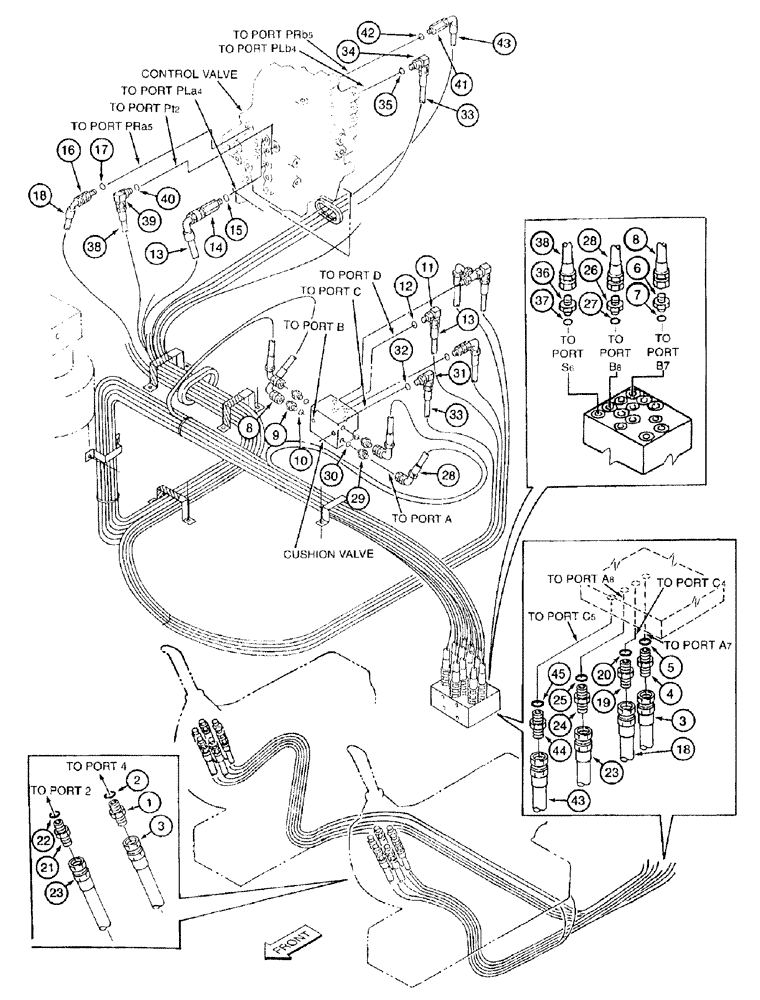

Запчасти Case 9050B (8-056) - ARM CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
straight, arm-out lines, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, arm-out lines
1шт.
3
159217A1
HYDRAULIC HOSE
1850 mm (72-13/16 inch) long, arm-out line (left-hand manual control valve port "4" to shuttle valve port "A7")
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, arm-out lines, Includes: Ref. 5
1шт.
5
154475A1
O-RING
adapter, arm-out lines
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, arm-out lines, Includes: Ref. 7
1шт.
7
154475A1
O-RING
adapter, arm-out lines
1шт.
8
159223A1
HOSE ASSY.
1100 mm (44-3/16 inch) long, arm-out line (shuttle valve port "B7" to cushion valve port "B")
1шт.
9
160074A1
PLUG
ADAPTER - straight, arm-out lines
1шт.
10
154486A1
O-RING
adapter, arm-out lines
1шт.
11
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
90 degree, arm-out lines, Includes: Ref. 12
1шт.
12
154475A1
O-RING
elbow, arm-out lines
1шт.
13
159228A1
HOSE ASSY.
1750 mm (68-7/8 inch) long, arm-out line, (cushion valve port "D" to control valve port "PLa4")
1шт.
14
159226A1
ADAPTER
straight, arm-out lines, Includes: Ref. 15
1шт.
15
154475A1
O-RING
adapter, arm-out lines
1шт.
16
153378A1
ADAPTER
straight, arm-out lines, Includes: Ref. 17
1шт.
17
154475A1
O-RING
adapter, arm-out lines
1шт.
18
159009A1
HOSE ASSY.
2600 mm (102-5/16 inch) long, arm-out signal line (control valve port "PRa5" to shuttle valve port "C4")
1шт.
19
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, arm-out lines, Includes: Ref. 20
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, arm-out lines
1шт.
21
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
straight, arm-in lines, Includes: Ref. 22
1шт.
22
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, arm-in lines
1шт.
23
159216A1
HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm
Arm-in line (LH manual control valve port "2" to shuttle valve port "A8")
1шт.
24
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, arm-in lines, Includes: Ref. 25
1шт.
25
154475A1
O-RING
adapter, arm-in lines
1шт.
26
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
straight, arm-in lines, Includes: Ref. 27
1шт.
27
154475A1
O-RING
adapter, arm-in lines
1шт.
28
159224A1
HOSE ASSY.
900 mm (35-7/16 inch) long, arm-in line (shuttle valve port "B8" to cushion valve port "A")
1шт.
29
160074A1
PLUG
ADAPTER - straight, arm-in lines
1шт.
30
154486A1
O-RING
adapter, arm-in lines
1шт.
31
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
90 degree, arm-in lines, Includes: Ref. 32
1шт.
32
154475A1
O-RING
elbow, arm-in lines
1шт.
33
159079A1
HYDRAULIC HOSE
2350 mm (92-1/2 inch) long, Arm-in line (Cushion valve port "C" to control valve port "PLb4")
1шт.
34
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
90 degree, arm-in lines, Includes: Ref. 35
1шт.
35
154475A1
O-RING
adapter, arm-in lines
1шт.
36
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, arm-in lines, Includes: Ref. 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, arm-in lines
1шт.
38
152275A1
HOSE,63mm ID x 2900mm L
Arm-in signal line (Shuttle valve port "S6" to control valve port "Pt2")
1шт.
39
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, arm-in lines, Includes: Ref. 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, arm-in lines
1шт.
41
162528A1
STUD
ADAPTER - straight, special, arm-in lines, Includes: Ref. 42
1шт.
42
154475A1
O-RING
adapter, arm-in lines
1шт.
43
159433A1
HOSE ASSY.
2700 mm (106-5/16 inch) long, arm-in signal line (control valve port "PRb5" to shuttle valve port "C5")
1шт.
44
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, arm-in lines, Includes: Ref. 45
1шт.
45
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, arm-in lines
1шт.
Выбрано товаров: 45
