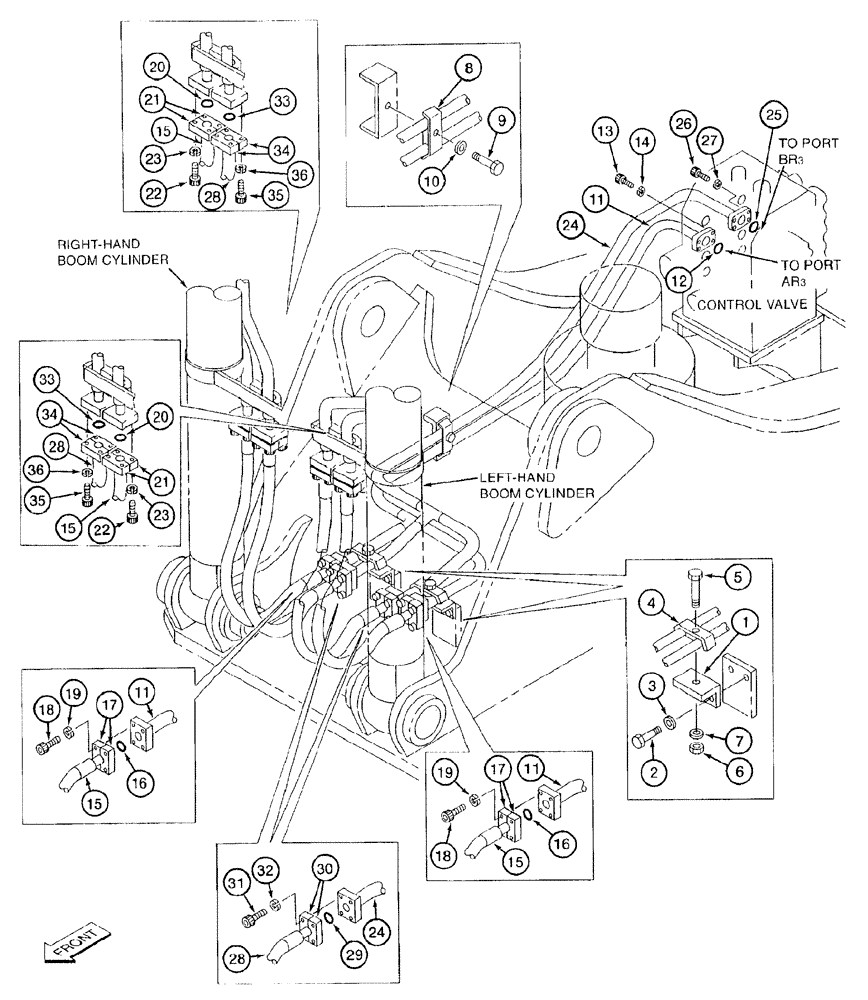

Запчасти Case 9050B (8-054) - BOOM CYLINDER LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
173758A1
BRACKET
mounting, was 170143A1
2шт.
2
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
Full Thd
4шт.
4
162308A1
COLLAR
tube
2шт.
5
827-12090
BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9
2шт.
6
829-1412
NUT,M12, Cl 10.9
2шт.
8
152974A1
COLLAR
tube
1шт.
9
828-12060
BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9
1шт.
11
173089A1
TUBE
boom-up (connects to control valve port "AR3")
1шт.
13
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
4шт.
14
112309A1
LOCK WASHER
lock, special
4шт.
15
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
Boom-up lines
2шт.
17
A12306
FLANGE
CLAMP - split flange
4шт.
18
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
8шт.
19
112309A1
LOCK WASHER
lock, special
8шт.
21
A12306
FLANGE
CLAMP - split flange
4шт.
22
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
8шт.
23
112309A1
LOCK WASHER
lock, special
8шт.
24
173088A1
TUBE
boom-down (connects to control valve port "BR3"), lines
1шт.
26
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Boom down lines
4шт.
27
112309A1
LOCK WASHER
lock, special, boom down lines
4шт.
28
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
Boom-down lines
2шт.
30
A12306
FLANGE
CLAMP - split flange, boom down lines
4шт.
31
862-10045
HEX SOC SCREW,M10 x 45mm, Cl 12.9
Boom down lines
8шт.
32
112309A1
LOCK WASHER
lock, special, boom down lines
8шт.
34
A12306
FLANGE
CLAMP - split flange, boom down lines
4шт.
35
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
Boom down lines
8шт.
36
112309A1
LOCK WASHER
lock, special, boom down lines
8шт.
Выбрано товаров: 36
