(8-046) - PEDAL CONTROL VALVE PRESSURE AND RETURN LINES

Запчасти Case 9050B (8-046) - PEDAL CONTROL VALVE PRESSURE AND RETURN LINES (08) - HYDRAULICS

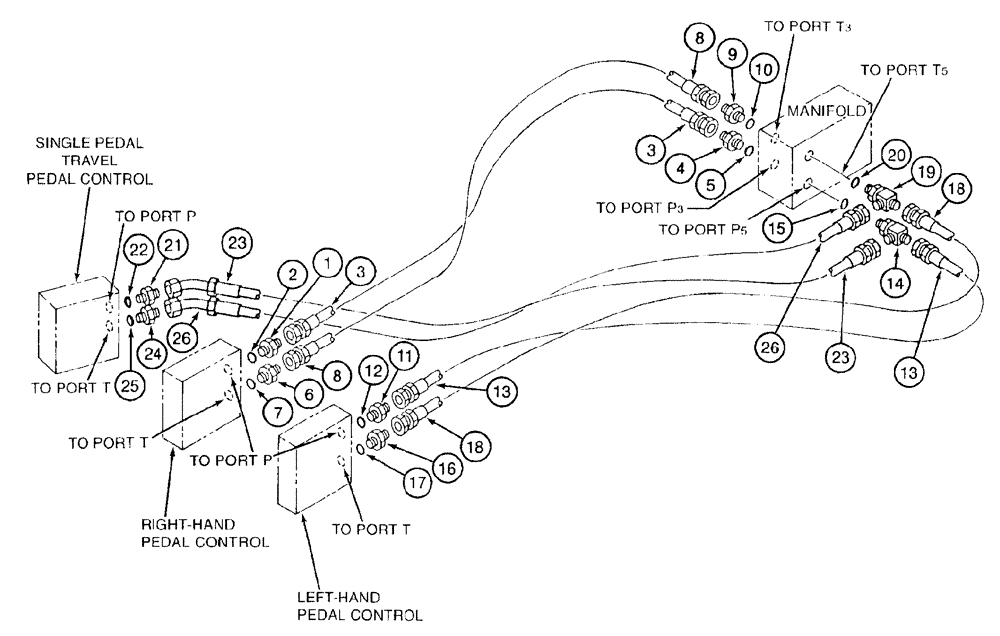

Схема запчастей Case 9050B - (8-046) - PEDAL CONTROL VALVE PRESSURE AND RETURN LINES (08) - HYDRAULICS
25
26
12
26
2
14
3
21
9
8
18
24
4
23
3
20
1
18
11
6
8
13
22
17
10
7
5
19
13
15
16
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

151888A1

HOSE,63.00 mm ID x 1350.00 mm

RH pedal-to-manifold pressure line (Pedal control valve port "P" to manifold port "P3")

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

6

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

8

151888A1

HOSE,63.00 mm ID x 1350.00 mm

RH pedal-to-manifold return line (Pedal control valve port "T" to manifold port "T3")

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

13

152517A1

HOSE,63mm ID x 1100mm L

LH pedal-to-manifold pressure line (Pedal control valve port "P" to tee in manifold port "P5")

1шт.

14

159497A1

TEE

special

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee

1шт.

16

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

18

152517A1

HOSE,63mm ID x 1100mm L

LH pedal-to-manifold return line (Pedal control valve port "T" to tee in manifold port "T5")

1шт.

19

159497A1

TEE

special

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

23

159045A1

HOSE ASSY.

1150 mm (45-1/4 inch) long, single pedal travel pedal-to-manifold pressure line (pedal control valve port "P" to tee in manifold port "P5")

1шт.

24

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

26

159045A1

HOSE ASSY.

1150 mm (45-1/4 inch) long, single pedal travel pedal-to-manifold return line (pedal control valve port "T" to tee in manifold port "T5")

1шт.
