(8-042) - PILOT PRESSURE DISTRIBUTION LINES

Запчасти Case 9050B (8-042) - PILOT PRESSURE DISTRIBUTION LINES (08) - HYDRAULICS

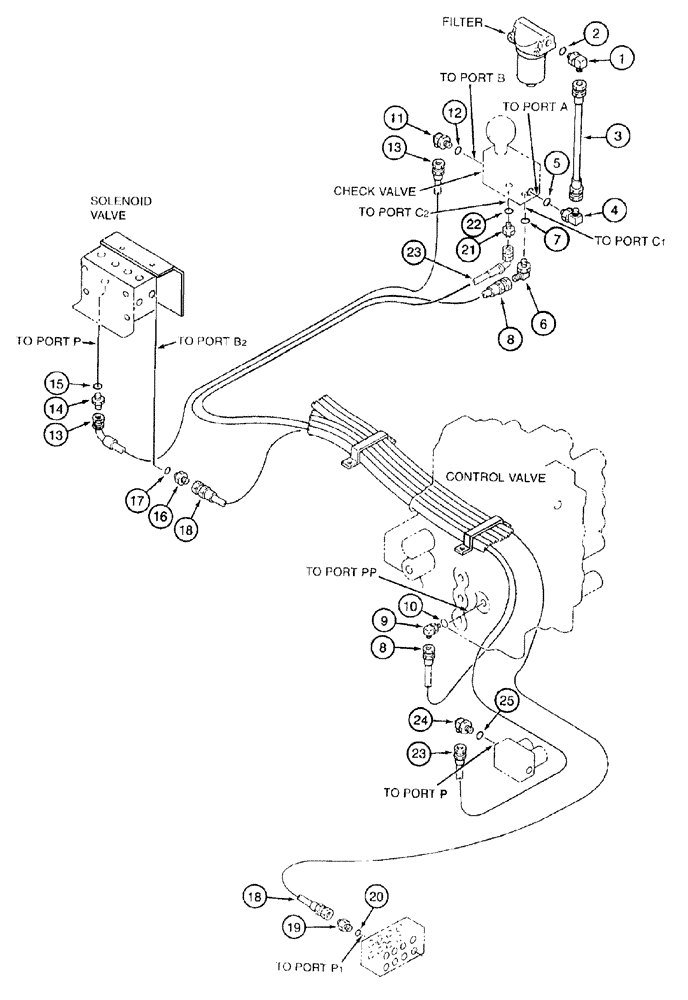

Схема запчастей Case 9050B - (8-042) - PILOT PRESSURE DISTRIBUTION LINES (08) - HYDRAULICS
13
18
12
19
16
14
1
21
25
23
6
8
17
13
7
3
4
24
2
22
10
23
15
8
5
9
20
11
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

157935A1

ELBOW

90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 2

1шт.

2

154487A1

O-RING

elbow

1шт.

3

163108A1

HOSE,9.50 mm ID x 320.00 mm

pilot pressure supply line (filter discharge port to check valve port "A")

1шт.

4

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 5

1шт.

5

154475A1

O-RING

elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

8

152299A1

HOSE,63.00 mm ID x 2950.00 mm

Pilot pressure supply line (Check valve port "C1" to control valve port "PP")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

11

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 12

1шт.

12

154475A1

O-RING

elbow

1шт.

13

159228A1

HOSE ASSY.

1750 mm (68-7/8 inch) long, pilot pressure supply line (control valve port "B to eight-spool solenoid valve port "P")

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 15

1шт.

15

154475A1

O-RING

adapter

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 17

1шт.

17

154475A1

O-RING

adapter

1шт.

18

157973A1

HOSE

3500 mm (137-3/4 inch) long, pilot pressure supply line (solenoid valve port "P1" to pressure and return manifold port "B2")

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 20

1шт.

20

154475A1

O-RING

adapter

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

23

163418A1

HYDRAULIC HOSE

4000 mm (157-1/2 inch) long, Pilot pressure supply line (Check valve port "C2" to swing brake release valve port "P")

1шт.

24

156554A1

ELBOW

90 degree, special, Includes: Ref. 25

1шт.

25

154475A1

O-RING

adapter

1шт.
