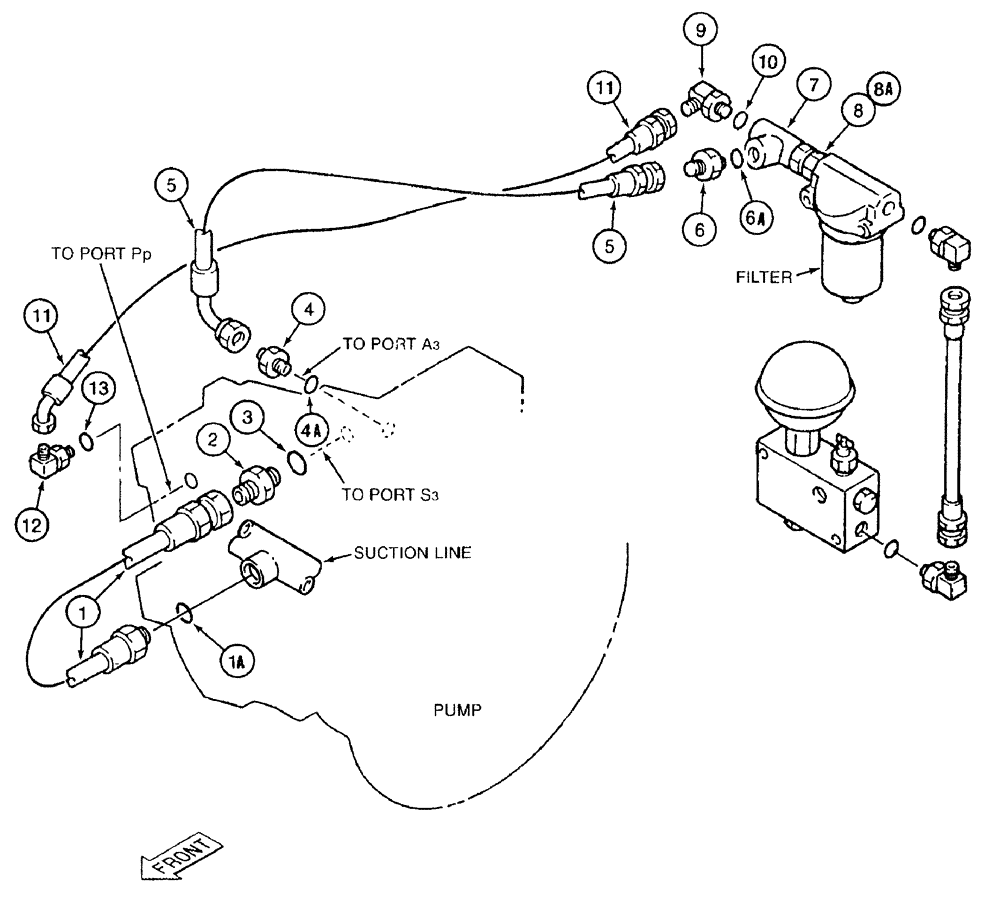

Запчасти Case 9050B (8-040) - PUMP PILOT SUPPLY LINES (08) - HYDRAULICS

1

162560A1

HYDRAULIC HOSE,19.00 mm ID x 880.00 mm

Gear pump supply line (From port in suction line to pump port "S3"), Includes Ref. 1A

1шт.

1a

154503A1

O-RING

hose

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 3

1шт.

3

154503A1

O-RING

adapter

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 4A

1шт.

4a

154487A1

O-RING

adapter

1шт.

5

162561A1

HOSE,12.70 mm ID x 450.00 mm

pilot pressure supply line (pump port "A3" to tee in filter inlet port)

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 6A

1шт.

6a

154487A1

O-RING

adapter

1шт.

7

162566A1

TEE

special

1шт.

8

162569A1

ADAPTER

ADAPTER - special, includes O-ring, Includes: Ref. 8A

1шт.

8a

154487A1

O-RING

adapter (not shown)

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

11

255423A1

HOSE ASSY.

700 mm (27-9/16 inch) long, pilot pressure signal line (pump port "Pp" to tee in filter inlet port)

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.
