(8-034) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, OPERATORS CAB

Запчасти Case 9050B (8-034) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, OPERATORS CAB (08) - HYDRAULICS

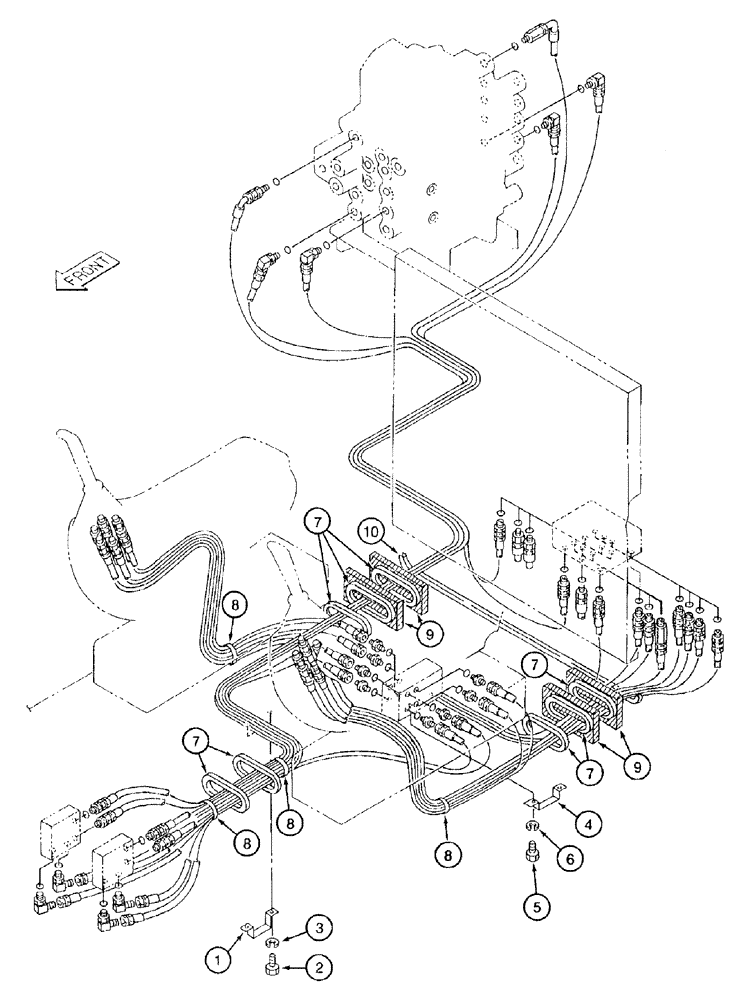

Схема запчастей Case 9050B - (8-034) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, OPERATORS CAB (08) - HYDRAULICS
10
8
2
4
7
9
8
7
5
7
8
1
7
8
3
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159025A1

CLAMP

support

1шт.

2

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

3

892-11008

LOCK WASHER,8mm ID

2шт.

4

159250A1

CLAMP

support

1шт.

5

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

159251A1

GROMMET

rubber

8шт.

8

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

9

162652A1

SEAL

CUSHION

4шт.

10

163419A1

SEAL

GROMMET - rubber

1шт.
