Запчасти Case 9050B (8-032) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

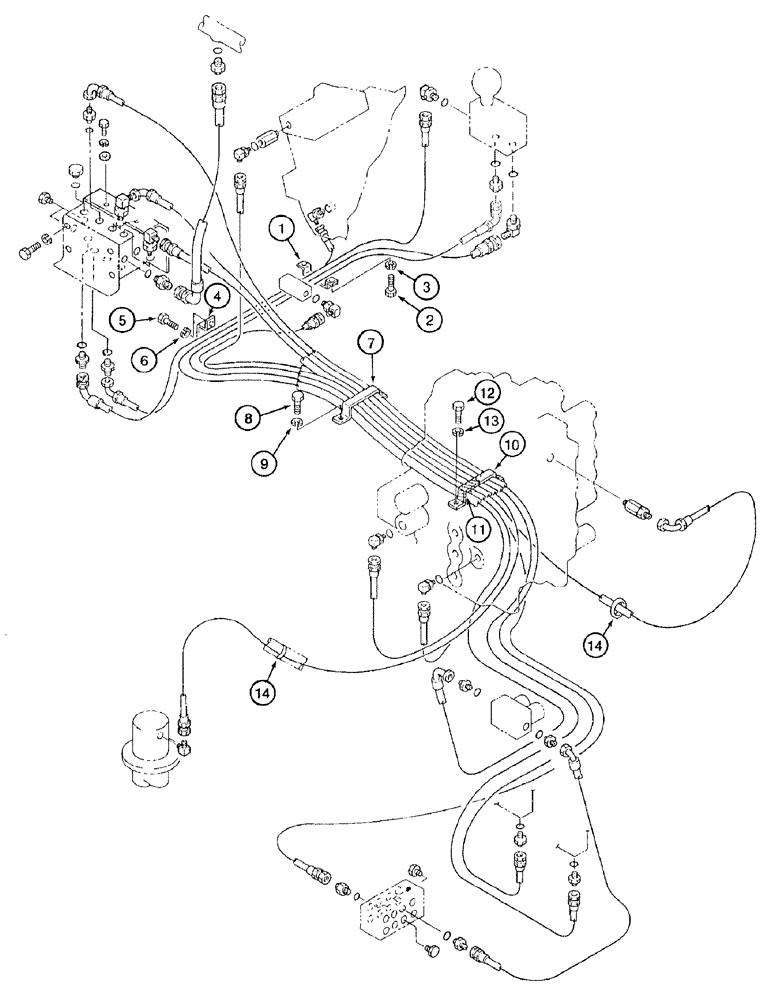

Схема запчастей Case 9050B - (8-032) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS
13
11
14
14
5
3
6
8
7
1
10
12
9
2
4

Артикул

Название

Примечание

Количество

1

159250A1

CLAMP

support

1шт.

2

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

3

892-11008

LOCK WASHER,8mm ID

2шт.

4

159033A1

CLAMP

support

1шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

159036A1

CLAMP

support

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

159036A1

CLAMP

support

1шт.

11

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

Выбрано товаров: 14
