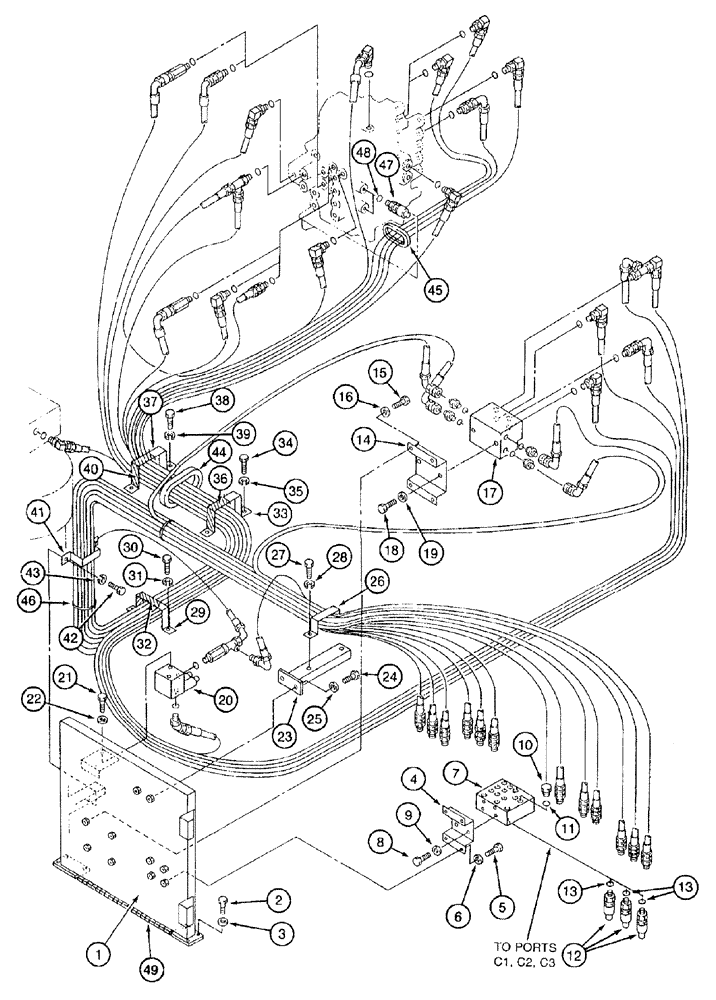

Запчасти Case 9050B (8-028) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

1

173452A1

BRACKET

component mounting

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

6шт.

3

150811A1

WASHER

flat, special, 12 mm

6шт.

4

162535A1

BRACKET

mounting

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

7

162077A1

VALVE

ASSEMBLY - shuttle, pilot control, parts list figure 8-214

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

9

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

10

159002A1

PLUG

port, Includes, Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

12

153412A1

SOCKET

ADAPTER - straight, 1/4 PT x 7/16-20 inch O-ring boss, pressure switch (in manifold ports "C1", "C2", and "C3"), Includes: Ref. 13

3шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

14

162536A1

BRACKET

mounting

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

16

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - cushion, see page 8-181 for components

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

20

161311A1

VALVE

ASSEMBLY - swing brake release, parts list figure 8-182

1шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

22

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

23

159248A1

BRACKET

support

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

25

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

26

159038A1

CLAMP

support

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

29

159040A1

CLAMP

support

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

31

892-11008

LOCK WASHER,8mm ID

2шт.

32

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

33

159040A1

CLAMP

support

1шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

35

892-11008

LOCK WASHER,8mm ID

2шт.

36

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

37

159040A1

CLAMP

support

1шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

39

892-11008

LOCK WASHER,8mm ID

2шт.

40

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

41

159025A1

CLAMP

support

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

43

892-11008

LOCK WASHER,8mm ID

2шт.

44

162522A1

RUBBER BLOCK

GROMMET - rubber

1шт.

45

162533A1

RUBBER BLOCK

GROMMET - rubber

1шт.

46

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.

47

159026A1

SOCKET

FITTING - hydraulic, special

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

fitting

2шт.

49

163342A1

SEAL

CUSHION - rubber

1шт.
