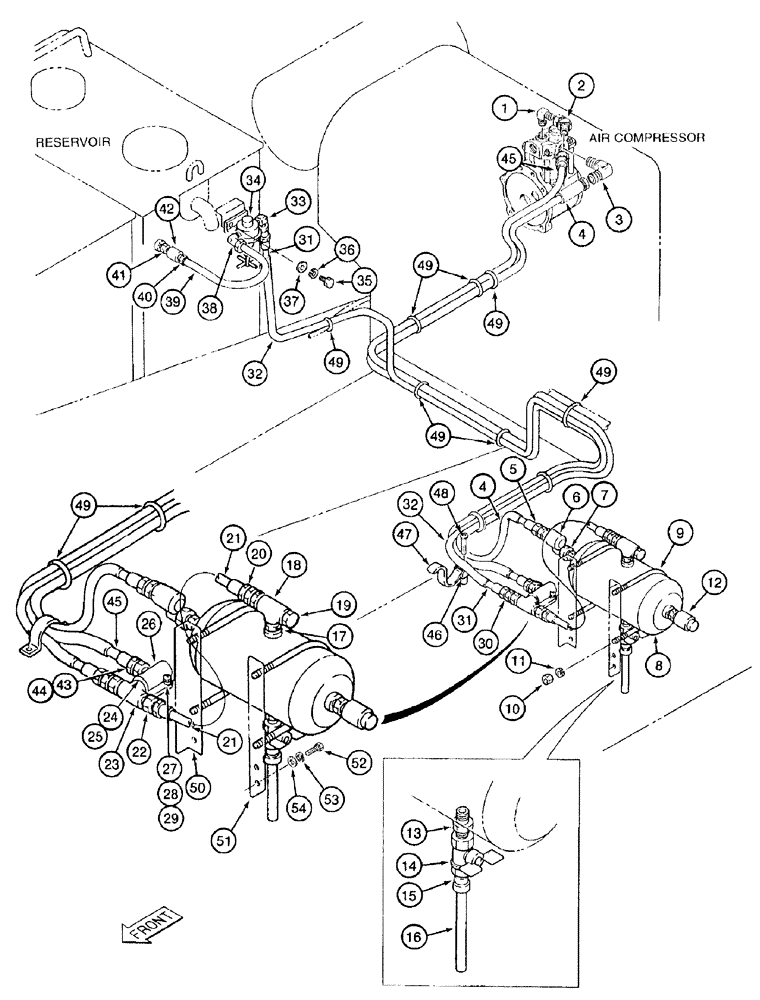

Запчасти Case 9050B (8-020) - RESERVOIR PRESSURIZATION SYSTEM, PRIOR TO P.I.N. EAC0501196 (08) - HYDRAULICS

1

170992A1

ELBOW

90 degree

1шт.

2

170993A1

ELBOW

45 degree

1шт.

3

170994A1

ELBOW

90 degree

1шт.

4

170990A1

HOSE ASSY.

3226 mm (127 inch) long, air tank supply line

1шт.

5

170995A1

CONNECTOR, ELEC

CONNECTOR straight

1шт.

6

153057A1

VALVE

check, component parts not serviced separately

1шт.

7

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER - straight

1шт.

8

153058A1

AIR TANK

1шт.

9

150119A1

U-BOLT,M8 x 170mm W x 105mm L

BOLT "U" tank mounting

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

892-11008

LOCK WASHER,8mm ID

4шт.

12

153060A1

VALVE

relief, safety

1шт.

13

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

14

158923A1

DRAIN VALVE

shutoff

1шт.

15

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight, component parts not serviced separately

1шт.

16

248758A1

TUBE

drain

1шт.

17

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

18

152135A1

TEE

special

1шт.

19

150990A1

PLUG

pipe

1шт.

20

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight

1шт.

21

248746A1

TUBE

HOSE - 419 mm (16-1/2 inch) long, pressurizing supply

1шт.

22

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight

1шт.

23

152135A1

TEE

special

1шт.

24

153065A1

SOCKET

ADAPTER - special

2шт.

25

152510A1

GASKET

adapter

2шт.

26

153063A1

GOVERNOR

air line

1шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

30

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight

1шт.

31

248757A1

TUBE

2903 mm (114-5/16 inch) long, reservoir pressurizing line

1шт.

32

249540A1

TUBE

SLEEVE - corrugated, 2802 mm (110-5/16 inch) long

1шт.

33

171134A1

ELBOW

90 degree

1шт.

34

152845A1

VALVE

ASSEMBLY - pressure reducing, parts list figure 8-186

1шт.

35

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

36

892-11006

LOCK WASHER,M6

2шт.

37

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

38

152948A1

ELBOW

ASSEMBLY - 90 degree

1шт.

39

248746A1

TUBE

419 mm (16-1/2 inch) long reservoir pressurizing line

1шт.

40

152946A1

HYD CONNECTOR

CONNECTOR ASSEMBLY - straight

1шт.

41

150914A1

SOCKET

FITTING - straight

1шт.

42

152460A1

VALVE

check

1шт.

43

150914A1

SOCKET

FITTING - straight

1шт.

44

170997A1

ADAPTER

ADAPTER - straight

1шт.

45

170991A1

HOSE ASSY.

2921 mm (115 inch) long, compressor unloading signal line

1шт.

46

150860A1

COLLAR

BRACKET - support

2шт.

47

150496A1

MOUNTING CLIP

tie, 250 mm long

2шт.

48

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

49

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

50

173073A1

BRACKET

mounting

1шт.

51

173072A1

BRACKET

mounting

1шт.

52

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

53

892-11012

LOCK WASHER,M12

4шт.

54

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
