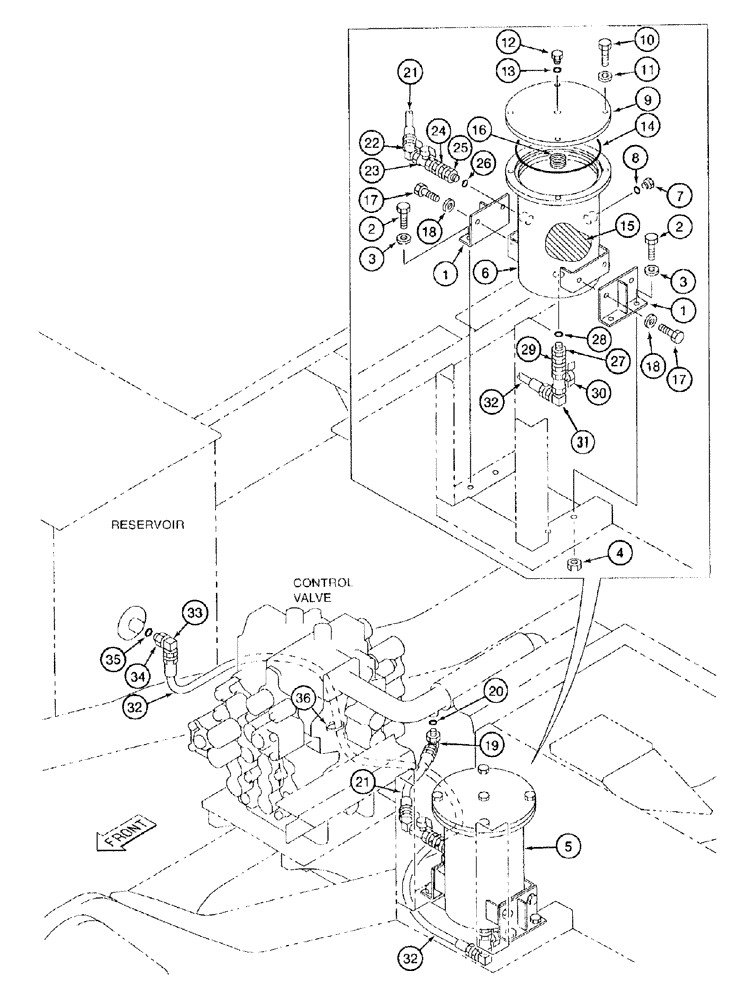

Запчасти Case 9050B (8-018) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

1

159286A1

BRACKET

mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, Includes: Ref. 6 - 16A

1шт.

6

159281A1

BODY

HOUSING - bypass filter

1шт.

7

159002A1

PLUG

port

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

9

159283A1

COVER

bypass filter

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

11

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

12

159285A1

PLUG

port

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

14

154859A1

O-RING

bypass filter

1шт.

15

159282A1

HYDRAULIC OIL FILTER

ELEMENT - bypass, metal, 160 mm diameter, see ref 16 spring

1шт.

15a

KHJ1879

FILTER, ELEMENT

ELEMENT, FILTER paper, 164 mm diameter, see ref 16A spring, not shown

1шт.

16

159837A1

SPRING

compression, 33.6 mm O.D., used with metal element

1шт.

16a

KHJ1908

SPRING

compression, 37.3 mm O.D., used with paper element, not shown

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

18

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

21

156735A1

HOSE,6.3 mm ID x 350.00 mm

350 mm (13-3/4 inch) long, filter inlet line

1шт.

22

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

23

158923A1

DRAIN VALVE

line shut-off

1шт.

24

153601A1

ADAPTER

straight

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

29

153601A1

ADAPTER

straight

1шт.

30

158923A1

DRAIN VALVE

line shut-off

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

32

150966A1

HOSE ASSY.

2000 mm (78-3/4 inch) long filter discharge line

1шт.

33

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

34

160356A1

SOCKET

BUSHING - threaded, Includes: Ref. 35

1шт.

35

154487A1

O-RING

bushing

1шт.

36

150498A1

MOUNTING CLIP

tie

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
