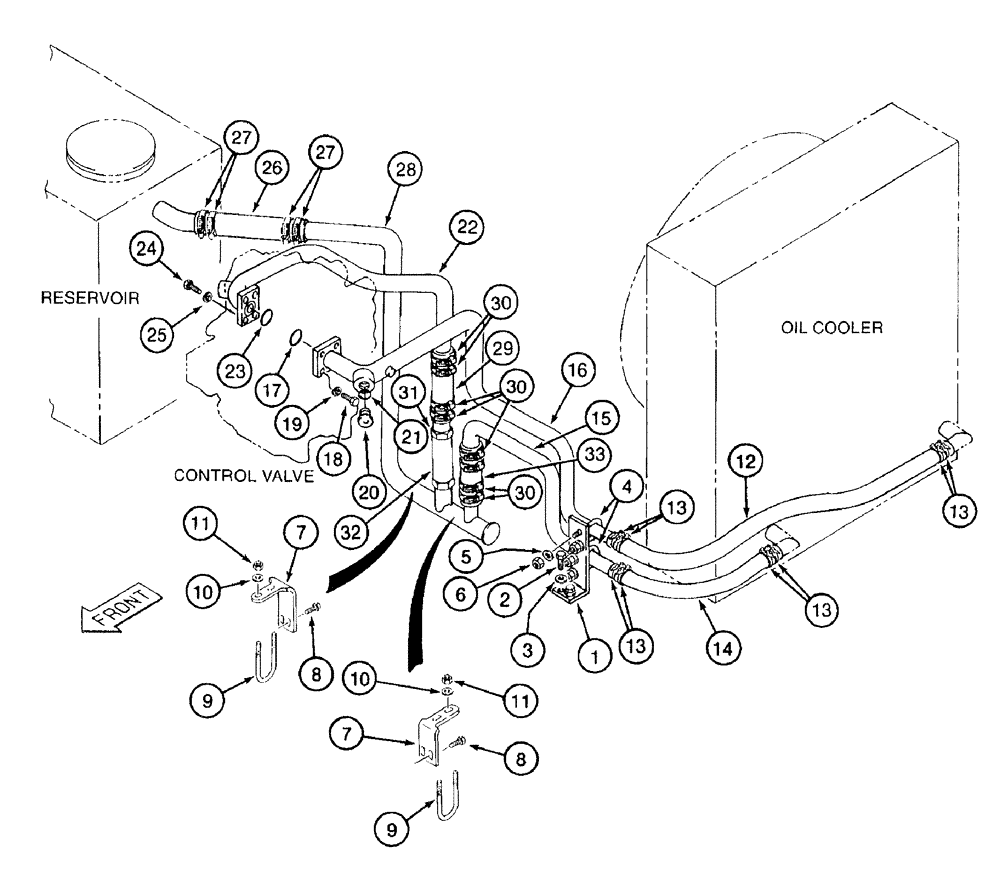

Запчасти Case 9050B (8-016) - COOLING SYSTEM (08) - HYDRAULICS

1

173097A1

BRACKET

support

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

2шт.

3

150811A1

WASHER

flat, special, 12 mm

2шт.

4

173105A1

U-BOLT

BOLT "U" 3/8 inch NC, tube mounting

2шт.

5

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

6

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

4шт.

7

173103A1

BRACKET

support

2шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

4шт.

9

173102A1

U-BOLT

BOLT "U" 3/8 inch NC, tube mounting

2шт.

10

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

11

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

4шт.

12

173098A1

HOSE

1454 mm (57-1/4 inch) long, oil cooler, (from oil cooler inlet to item 16 tube)

1шт.

13

170318A1

CLAMP

hose

8шт.

14

173087A1

HOSE

924 mm (36-3/8 inch) long, oil cooler, (from oil cooler outlet to item 15 tube)

1шт.

15

173095A1

TUBE

oil cooler (installed between items 14 hose and 33 hose)

1шт.

16

173788A1

TUBE

oil cooler (from item 12 hose to control valve) was 173096A1

1шт.

16a

214389

PLUG,3/4" - 16 ORB

Not shown, Includes Ref. 16B

1шт.

16b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Plug, not shown

1шт.

17

154607A1

O-RING

tube

1шт.

19

892-11010

LOCK WASHER,M10

4шт.

20

162335A1

PLUG

port, Includes: Ref. 21

1шт.

21

154559A1

O-RING

plug

1шт.

22

173787A1

TUBE

oil cooler (from item 29 hose to control valve) was 173094A1

1шт.

23

154607A1

O-RING

tube

1шт.

25

892-11010

LOCK WASHER,M10

4шт.

26

173092A1

HOSE

240 mm (9-1/2 inch) long, oil cooler (from item 28, Serial Range: tube-reservoir)

1шт.

27

170285A1

CLAMP

hose

4шт.

28

173682A1

TUBE

oil cooler (connects to item 26 hose at reservior)

1шт.

28a

152924A1

PLUG

tube, not shown

1шт.

28b

154503A1

O-RING

plug, not shown

1шт.

29

173104A1

HOSE

178 mm (7 inch) long, oil cooler (installed between items 22 tube and 31 tube)

1шт.

30

170318A1

CLAMP

hose

8шт.

31

173085A1

TUBE,50.8 mm ID, 54.97 mm OD

oil cooler (installed between item 29 hose and check valve)

1шт.

32

153460A1

VALVE

check

1шт.

33

173104A1

HOSE

178 mm (7 inch) long, oil cooler (installed between items 15 tube and 28 tube)

1шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
