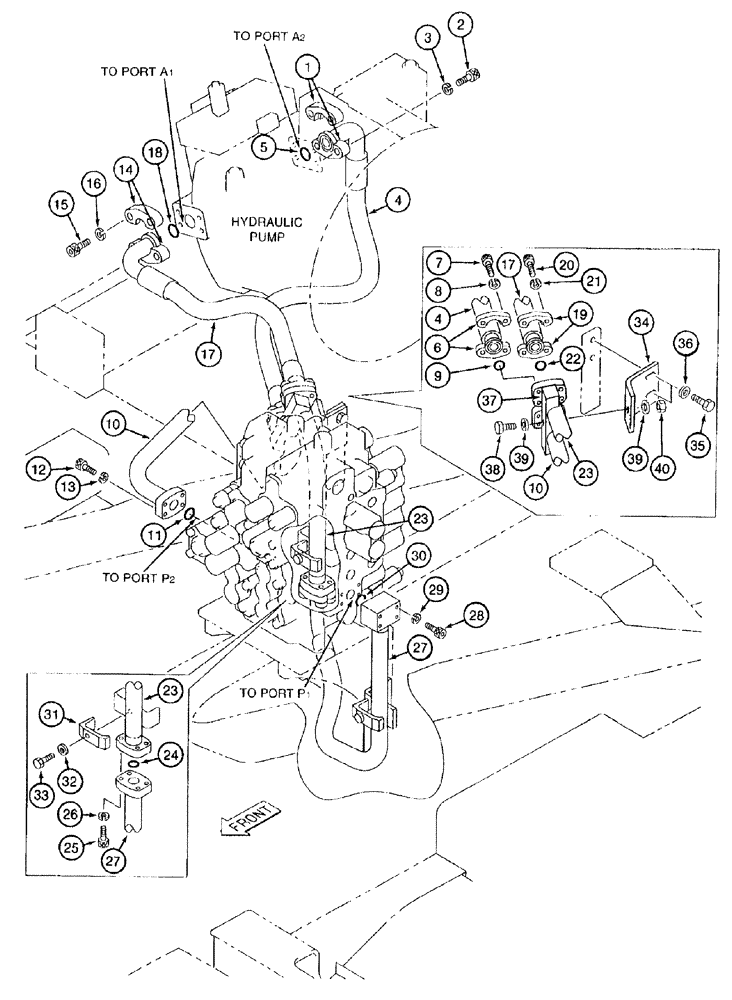

Запчасти Case 9050B (8-012) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

150124A1

FLANGE

split

2шт.

2

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Special

4шт.

4

173708A1

HOSE

at pump port "A2"

1шт.

5

153626A1

O-RING

hose

1шт.

6

A12306

FLANGE

CLAMP - split flange

2шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

8

112309A1

LOCK WASHER

lock, special

4шт.

9

155211A1

O-RING

hose

1шт.

10

173076A1

TUBE

valve supply at control valve port "P2"

1шт.

11

155211A1

O-RING

tube

1шт.

12

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

13

112309A1

LOCK WASHER

lock, special

4шт.

14

150124A1

FLANGE

split

2шт.

15

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Special

4шт.

17

173707A1

HOSE

valve supply at pump port "A1"

1шт.

18

153626A1

O-RING

hose

1шт.

19

A12306

FLANGE

CLAMP - split flange

2шт.

20

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

21

112309A1

LOCK WASHER

lock, special

4шт.

22

155211A1

O-RING

hose

1шт.

23

173077A1

TUBE,34 mm OD

valve supply

1шт.

24

155211A1

O-RING

hose

1шт.

25

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

26

112309A1

LOCK WASHER

lock, special

4шт.

27

173075A1

TUBE

valve supply at control valve port "P1"s

1шт.

28

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

hex socket, 10 - 1.5 x 65 mm, class 12.9

4шт.

29

112309A1

LOCK WASHER

lock, special

4шт.

30

155211A1

O-RING

tube

1шт.

31

152974A1

COLLAR

tube

1шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

33

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

34

173074A1

BRACKET

mounting

1шт.

35

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

2шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

37

152997A1

COLLAR

tube

1шт.

38

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

39

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

40

829-1412

NUT,M12, Cl 10.9

1шт.
