(8-008) - AUXILIARY HYDRAULIC PUMP AND SUCTION LINE, FOR TIMBER KING MODELS, P.I.N. EAC0531007 AND AFTER

Запчасти Case 9050B (8-008) - AUXILIARY HYDRAULIC PUMP AND SUCTION LINE, FOR TIMBER KING MODELS, P.I.N. EAC0531007 AND AFTER (08) - HYDRAULICS

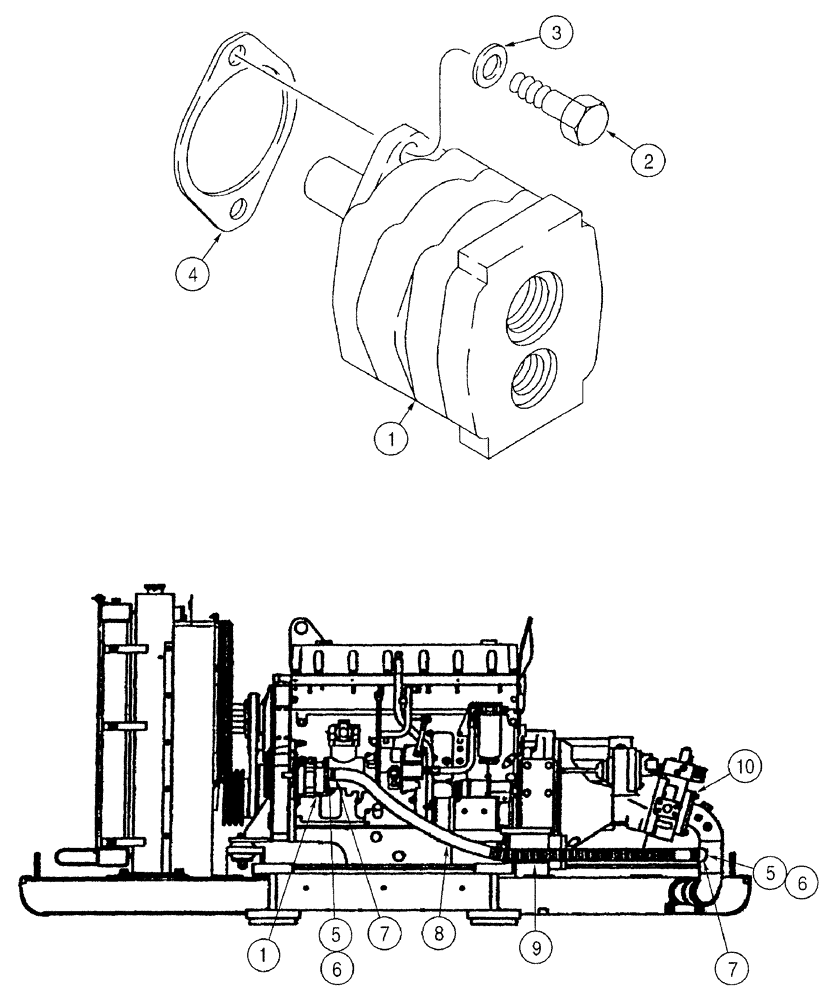

Схема запчастей Case 9050B - (8-008) - AUXILIARY HYDRAULIC PUMP AND SUCTION LINE, FOR TIMBER KING MODELS, P.I.N. EAC0531007 AND AFTER (08) - HYDRAULICS
9
4
2
1
5
5
1
10
6
3
7
8
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

170755A1

PUMP

ASSEMBLY - auxiliary, parts list figure 8-10

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

2шт.

3

170910A1

WASHER

special

2шт.

4

171022A1

GASKET

pump mounting

1шт.

5

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

2шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

170097A1

CLAMP

hose

2шт.

8

170978A1

HOSE,31.75 mm ID x 1625.00 mm

1625 mm (64 inch) long

1шт.

9

170979A1

PROTECTOR

GUARD - hose

1шт.

10

173101A1

TUBE

flanged, pump suction, see figure 8-6 for related parts

1шт.
