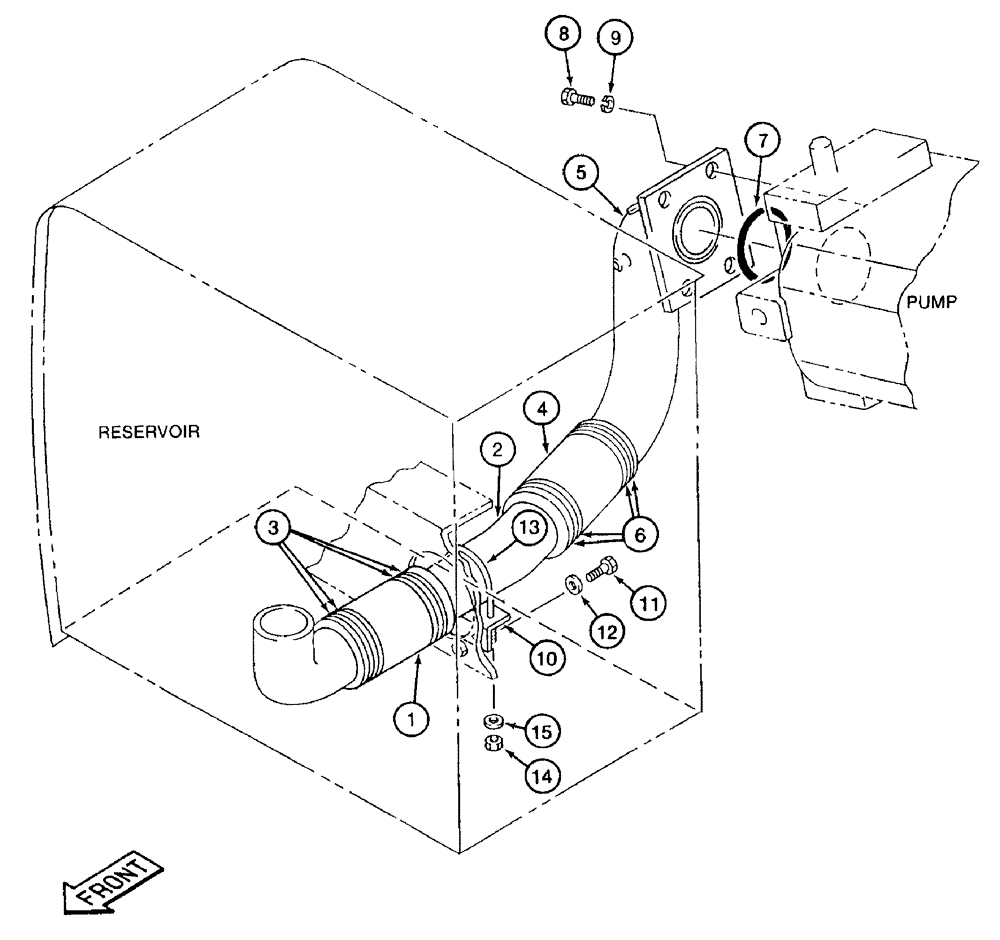

Запчасти Case 9050B (8-006) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

173722A1

HOSE

pump suction, reservoir end

1шт.

2

173099A1

TUBE,88.9 mm OD

center section of line

1шт.

3

171516A1

CLAMP

adjustable

4шт.

4

173722A1

HOSE

pump suction, pump end

1шт.

5

173101A1

TUBE

flanged, pump suction, at pump

1шт.

6

171516A1

CLAMP

adjustable

4шт.

7

154787A1

O-RING

fitting

1шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

162307A1

BRACKET

support

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

13

152074A1

U-BOLT,M12 x 104mm W x 120mm L

BOLT "U" special

1шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

150811A1

WASHER

flat, special, 12 mm

2шт.
