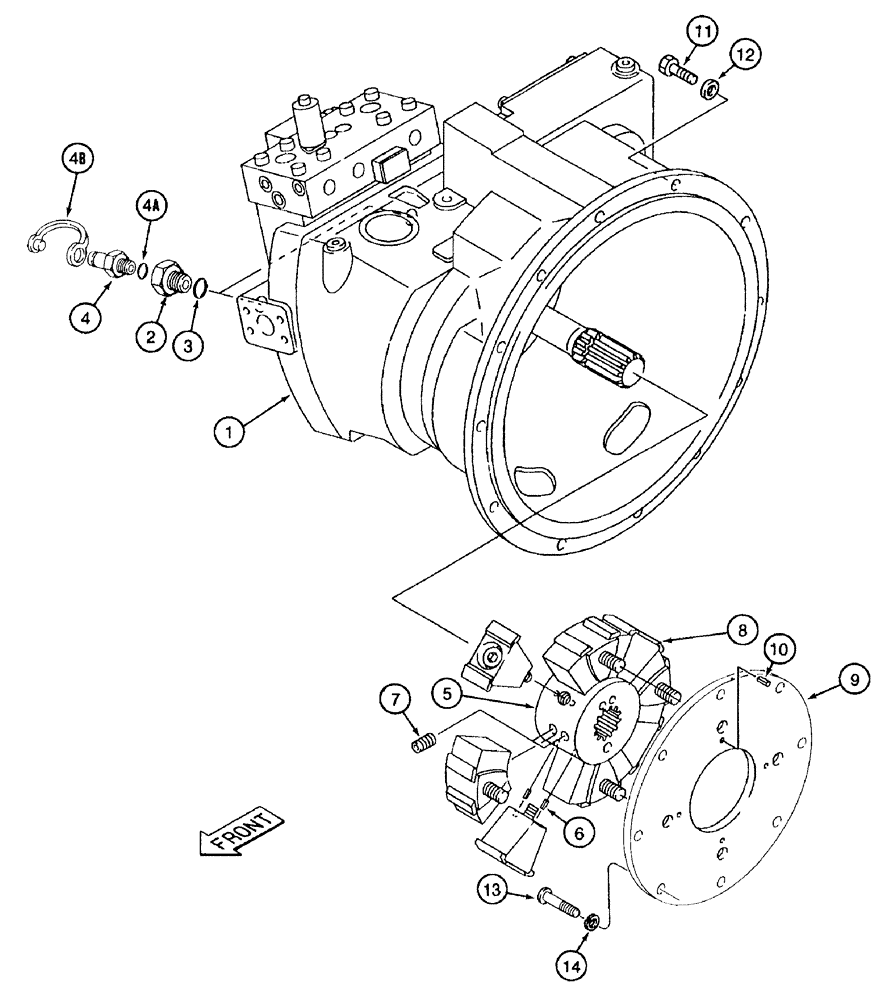

Запчасти Case 9050B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

165169A1

PUMP, HYDRAULIC

ASSEMBLY - parts list figures 8-136 - 8-150

1шт.

1

165169A1R

REMAN-HYD PUMP

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), ASSEMBLY (10/96-)

1шт.

1

165169A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

151136A1

BUSHING

ADAPTER - straight, special, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

2шт.

1541849C1

COUPLING

ASSEMBLY - diagnostic, Includes: Ref. 4 - 4B

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

4b

S301201

CAP

dust

1шт.

5

REF

INSTRUCTION

HUB - coupling, order ref 8 below

1шт.

6

738-1816

LOCK PIN,M8 x 16, Slotted

roll, 8 x 16 mm

8шт.

7

877-52030

SET SCREW,Hex Skt, M20 x 30mm, Dog Pt

set, hex socket, 20 - 2.5 x 30 mm, dog point

2шт.

8

165634A1

COUPLING

ASSEMBLY - pump, component parts not serviced separately

1шт.

9

173451A1

PLATE

coupling

1шт.

10

738-1816

LOCK PIN,M8 x 16, Slotted

roll, 8 x 16 mm

4шт.

11

170945A1

BOLT

hex, special

12шт.

12

150811A1

WASHER

flat, special, 12 mm

12шт.

13

173234A1

CAPSCREW

special

8шт.

14

170910A1

WASHER

special

8шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Coupling

1шт.
