(6-024) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS MODELS WITHOUT TIMBER KING

Запчасти Case 9050B (6-024) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS MODELS WITHOUT TIMBER KING (06) - POWER TRAIN

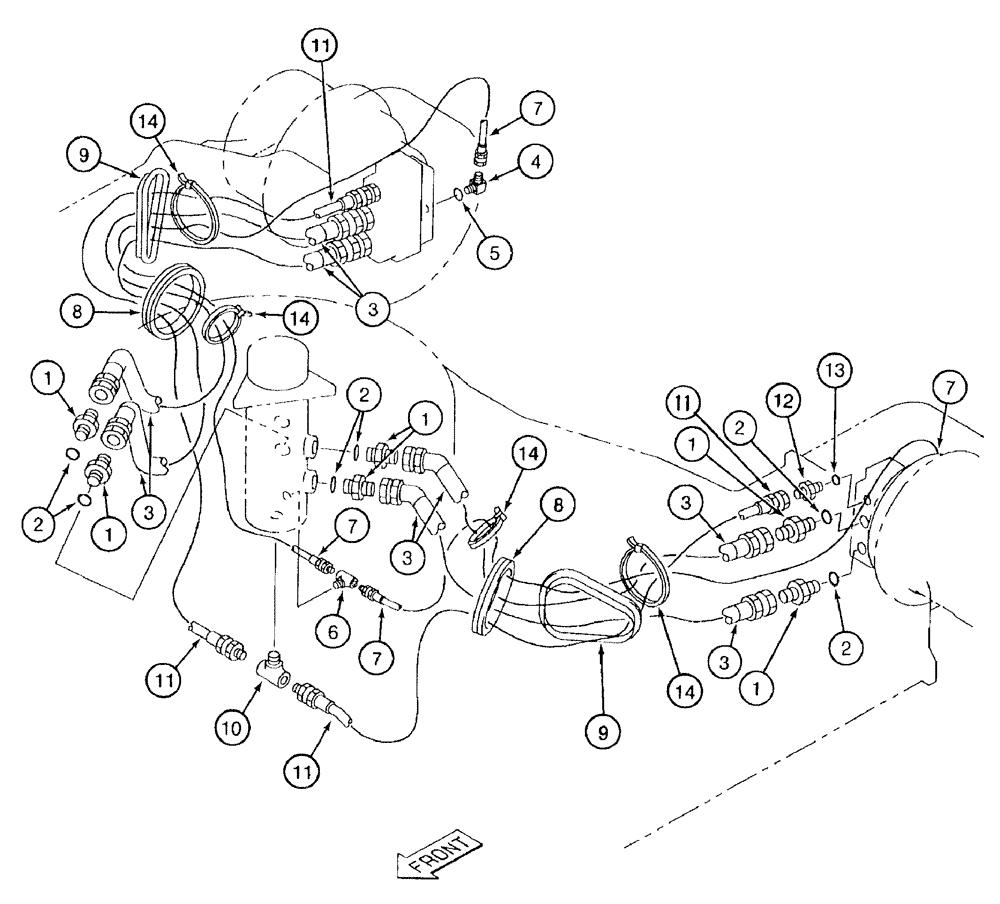

Схема запчастей Case 9050B - (6-024) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS MODELS WITHOUT TIMBER KING (06) - POWER TRAIN
7
1
3
10
3
14
7
1
7
8
3
2
11
1
9
11
14
14
7
4
14
11
1
13
2
3
1
9
3
8
2
12
11
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, at swivel, Includes: Ref. 2

8шт.

2

154523A1

O-RING

adapter

8шт.

3

151914A1

HOSE ASSY.

2330 mm (91-3/4 inch) long

4шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

2шт.

6

162276A1

TEE

special

1шт.

7

157996A1

HOSE,6.3mm ID x 2750mm L

2750 mm (110 inch) long

2шт.

8

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

9

159658A1

REDUCER

GUARD - hose

2шт.

10

152195A1

TEE

special, in bottom of swivel

1шт.

11

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

2шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 13

2шт.

13

154487A1

O-RING

adapter

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.
