Запчасти Case 9050B (6-020) - TRACK DRIVE MOTOR, BASE PLATE ASSEMBLY AND VALVES, TIMBER KING MODELS (06) - POWER TRAIN

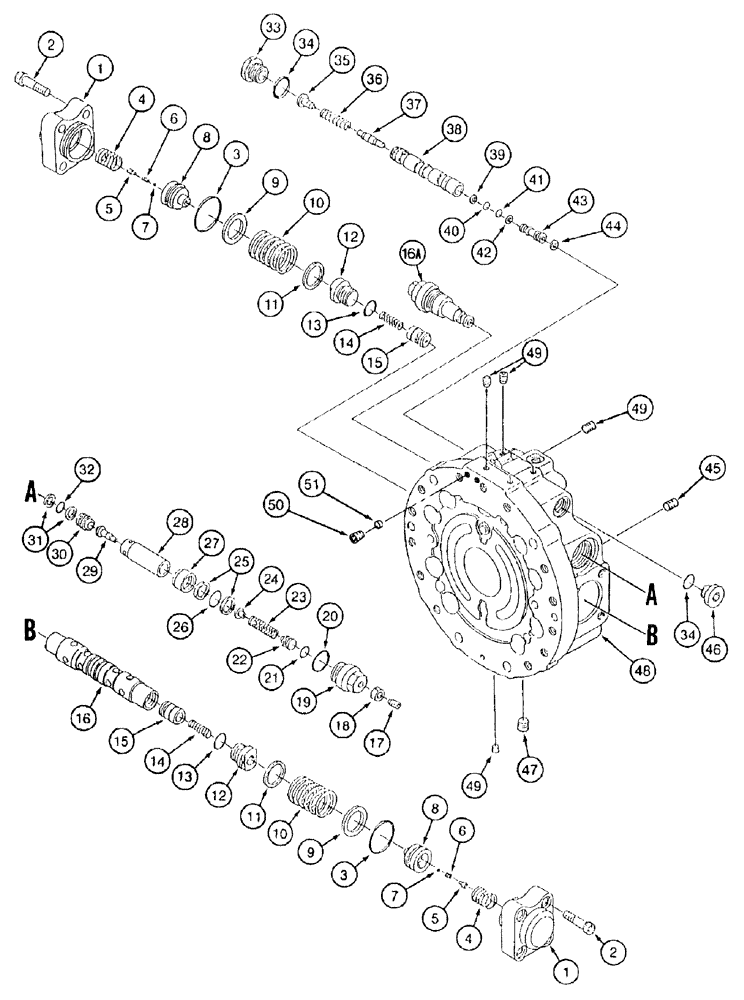

Схема запчастей Case 9050B - (6-020) - TRACK DRIVE MOTOR, BASE PLATE ASSEMBLY AND VALVES, TIMBER KING MODELS (06) - POWER TRAIN
50
2
38
8
6
33
5
45
51
37
10
5
15
42
44
4
32
25
1
13
2
11
39
34
29
9
7
34
27
8
24
36
3
40
13
23
48
16a
3
49
4
10
21
12
47
31
22
20
30
7
19
17
49
16
14
14
11
35
46
6
15
18
26
43
12
9
1
41
49
28

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

BASE PLATE ASSEMBLY - track drive motor, Includes: Ref. 1 - 51

1шт.

160143A1

CAP

ASSEMBLY - special, plunger, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

CAP - plunger

1шт.

2

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

3

154589A1

O-RING

seal, plunger cap

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - piston, outer

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - piston, inner

1шт.

7

NSS

NOT SOLD SEPARAT

BALL - steel

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - plunger

1шт.

9

160202A1

SPRING SEAT

2шт.

10

160261A1

SPRING

plunger

2шт.

11

156110A1

SPRING SEAT

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG - plunger

2шт.

Part of the plate base kit P/N 165701A1

1шт.

13

154495A1

O-RING

plug

2шт.

Part of the plate base kit P/N 165701A1

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - check valve

2шт.

Part of the plate base kit P/N 165701A1

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - check

2шт.

Part of the plate base kit P/N 165701A1

1шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

Part of the plate base kit P/N 165701A1

1шт.

16a

163383A1

VALVE

ASSEMBLY - relief, Includes: Ref. 17 - 32

2шт.

17

164476A1

SET OF SCREWS

SCREW - set

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

Set screw

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

20

155225A1

O-RING

seal

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

21

155063A1

O-RING

seal

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - free piston

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

25

153977A1

BACK-UP RING

2шт.

Part of the Seal Kit P/N 165698A1

1шт.

26

154495A1

O-RING

seal

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - free

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - relief

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET - relief housing

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

31

153964A1

BACK-UP RING

2шт.

Part of the Seal Kit P/N 165698A1

1шт.

32

154479A1

O-RING

seal

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

33

165679A1

PLUG

CAP - end, valve spool

1шт.

34

154487A1

O-RING

port plug

2шт.

Part of the Seal Kit P/N 165698A1

1шт.

35

165690A1

GUIDE

spring

1шт.

36

160265A1

SPRING

spool

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL C - valve

1шт.

Part of the plate base kit P/N 165701A1

1шт.

38

NSS

NOT SOLD SEPARAT

SPOOL A - valve

1шт.

Part of the plate base kit P/N 165701A1

1шт.

39

153937A1

BACK-UP RING

1шт.

Part of the plate base kit P/N 165701A1

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

40

154443A1

O-RING

seal, replaces 159988A1, O-ring

1шт.

Part of the plate base kit P/N 165701A1

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

41

154447A1

O-RING

seal

1шт.

Part of the plate base kit P/N 165701A1

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

42

153940A1

BACK-UP RING

1шт.

Part of the plate base kit P/N 165701A1

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

43

160197A1

FILTER

valve

1шт.

Part of the plate base kit P/N 165701A1

1шт.

44

165712A1

RING, SNAP

RING SNAP

1шт.

Part of the plate base kit P/N 165701A1

1шт.

45

151026A1

PLUG

port

3шт.

46

155483A1

PLUG

port

1шт.

47

151030A1

PLUG

port

1шт.

48

NSS

NOT SOLD SEPARAT

PLATE - base

1шт.

Part of the plate base kit P/N 165701A1

1шт.

49

155497A1

PLUG

port

12шт.

50

156880A1

ORIFICE

PLUG - base plate

2шт.

51

NSS

NOT SOLD SEPARAT

ORIFICE - base plate

2шт.

165698A1

SEAL KIT

motor, Includes: items 3, 20, 25, 26, 31, 32, 34, 39, 40, 41 & 42 and on figure 6-18

1шт.

165701A1

KIT

base plate, Includes: items 12 thru 16, 37 thru 44 & 48

1шт.
