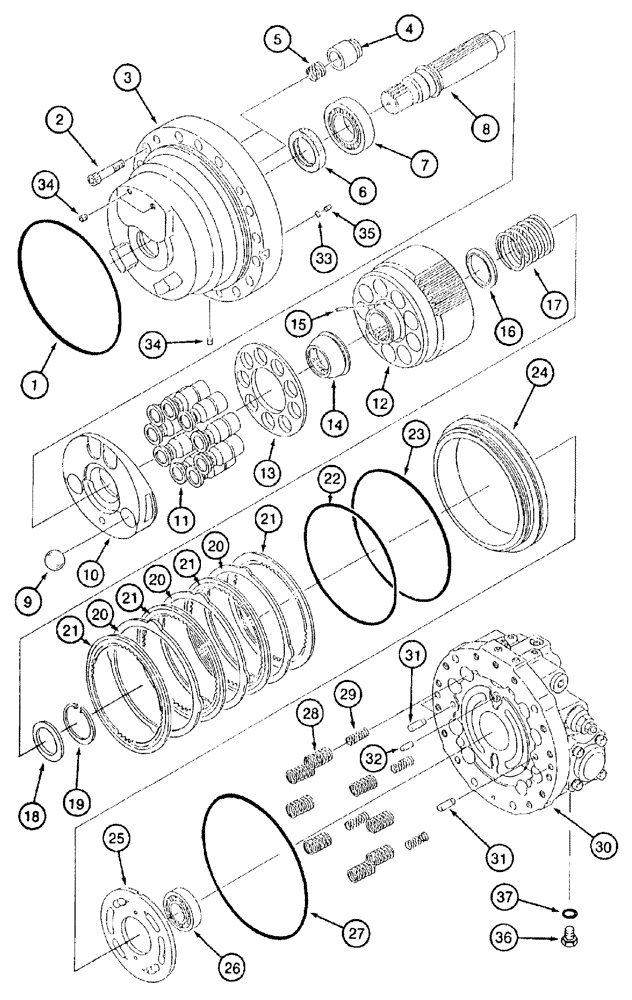

Запчасти Case 9050B (6-018) - TRACK DRIVE MOTOR ASSEMBLY, SHAFT, CYLINDER BLOCK AND PISTONS, TIMBER KING MODELS (06) - POWER TRAIN

165685A1

MOTOR, HYDRAULIC

ASSEMBLY - track drive, Includes: Ref. 1 - 37

2шт.

1

163954A1

O-RING

housing

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

2

861-14110

HEX SOC SCREW,M14 x 110mm, Cl 12.9

hex socket, 14 - 2.0 x 110 mm, class 12.9

3шт.

165700A1

KIT

motor housing, Includes: Ref. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - motor

2шт.

5

165680A1

PLUG

SPRING - piston

2шт.

6

165719A1

OIL SEAL

oil

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

7

165707A1

BEARING, ROLLER,50 mm ID x 90 mm OD x 20 mm

1шт.

8

165671A1

SHAFT

motor

1шт.

9

165706A1

BALL

steel

2шт.

10

165692A1

PLATE

swash

1шт.

LS00156

SET OF PARTS

cylinder block, Includes: Ref. 11 - 12

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

165699A1

KIT

retainer plate, piston, Includes: Ref. 13 - 14

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - piston retainer

1шт.

14

NSS

NOT SOLD SEPARAT

SEPARATOR - piston

1шт.

15

165682A1

COTTER PIN

retainer

3шт.

16

165693A1

SPRING SEAT

1шт.

17

165705A1

SPRING

cylinder block

1шт.

18

165694A1

SPRING SEAT

COLLAR

1шт.

19

165713A1

RING, SNAP

RING SNAP special

1шт.

20

165696A1

PLATE

friction

3шт.

21

165697A1

DISC

PLATE - separator

4шт.

22

165721A1

SEALING RING

brake piston, inner

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

23

165720A1

OIL SEAL

brake piston, outer

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

24

165695A1

JACK PISTON

brake

1шт.

25

165691A1

LARGE PLATE

PLATE, LARGE valve

1шт.

26

165708A1

BEARING, ROLLER, CYL,35 mm ID x 72 mm OD x 17 mm

1шт.

27

155220A1

O-RING

housing to base plate

1шт.

28

156090A1

SPRING

valve, brake piston, outer

8шт.

29

156092A1

SPRING

valve, brake piston, inner

4шт.

30

REF

INSTRUCTION

PLATE ASSEMBLY - base, parts list figure 6-20

1шт.

31

155579A1

COTTER PIN

dowel

4шт.

32

155578A1

PIN

COTTER PIN dowel

1шт.

33

154463A1

O-RING

orifice

1шт.

Part of the Seal Kit P/N 165698A1

1шт.

34

155479A1

PLUG

port

6шт.

35

NSS

NOT SOLD SEPARAT

PLUG - orifice, housing

1шт.

36

155483A1

PLUG

port

2шт.

37

154487A1

O-RING

plug

2шт.

Part of the Seal Kit P/N 165698A1

1шт.

165698A1

SEAL KIT

motor, Includes items 1, 6, 22, 23, 27, 33, 37 and on figure 6-20

1шт.
