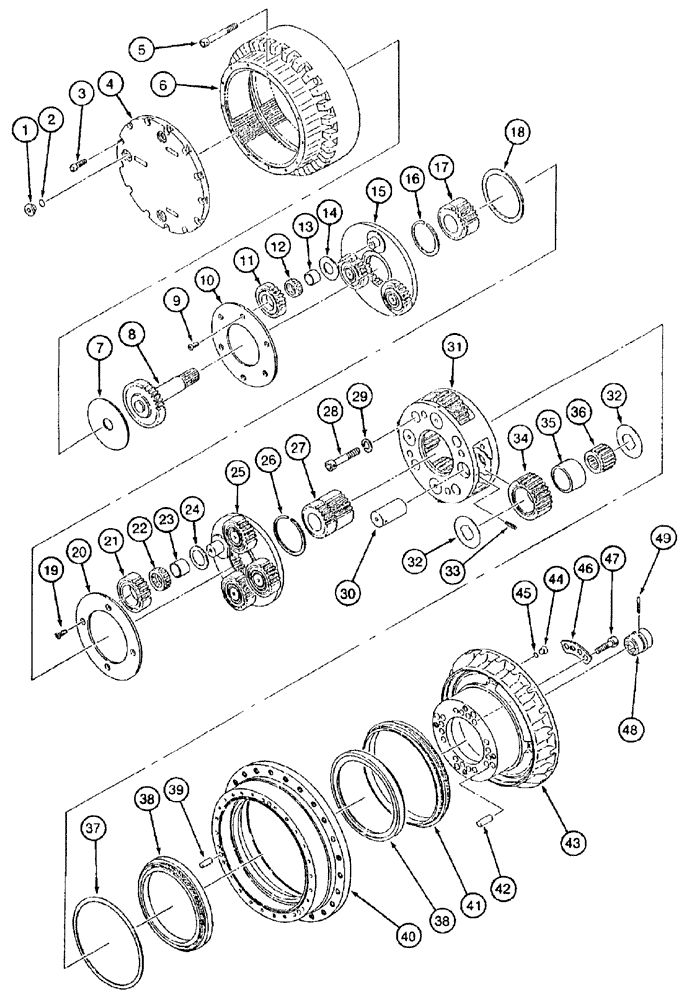

Запчасти Case 9050B (6-014) - FINAL DRIVE TRANSMISSION, TIMBER KING MODELS (06) - POWER TRAIN

165686A1

MOTO-REDUCTION GEAR

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 49

1шт.

1

165681A1

PLUG

port

3шт.

2

154503A1

O-RING

plug

3шт.

Part of the Seal Kit P/N 165702A1

1шт.

3

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

hex socket, 10 - 1.5 x 20 mm, class 12.9

13шт.

4

165715A1

COVER

end

1шт.

5

861-14110

HEX SOC SCREW,M14 x 110mm, Cl 12.9

hex socket, 14 - 2.0 x 110 mm, class 12.9

26шт.

6

165670A1

GEAR

ring

1шт.

7

165704A1

SET OF PARTS

thrust plate

1шт.

8

165667A1

PINION

GEAR - drive

1шт.

165687A1

HOLDER

CARRIER ASSEMBLY - planetary gear, A, Includes: Ref. 9 - 15

1шт.

9

156195A1

SCREW

special

3шт.

10

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - planetary

3шт.

12

NSS

NOT SOLD SEPARAT

BEARING - needle

3шт.

13

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

3шт.

14

NSS

NOT SOLD SEPARAT

WASHER - thrust

3шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - planetary gear, A

1шт.

16

155643A1

RING, SNAP

RING SNAP sun gear retaining

1шт.

17

165668A1

SUN GEAR

1шт.

18

165678A1

PLATE, THRUST

1шт.

165688A1

HOLDER

CARRIER ASSEMBLY - planetary gear, B, Includes: Ref. 19 - 25

1шт.

19

156195A1

SCREW

special

4шт.

20

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR - planetary

4шт.

22

NSS

NOT SOLD SEPARAT

BEARING - needle

4шт.

23

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

4шт.

24

NSS

NOT SOLD SEPARAT

WASHER - thrust

4шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - planetary gear, B

1шт.

26

165714A1

RING, SNAP

RING SNAP sun gear retaining

1шт.

27

165669A1

SUN GEAR

1шт.

28

861-20110

HEX SOC SCREW,M20 x 110mm, Cl 12.9

4шт.

29

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

4шт.

165716A1

HOLDER

CARRIER ASSEMBLY - planetary gear, C, Includes: Ref. 30 - 36

1шт.

30

NSS

NOT SOLD SEPARAT

SHAFT - gear, C

4шт.

31

NSS

NOT SOLD SEPARAT

CARRIER - planetary gear, C

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust

8шт.

33

738-1850

LOCK PIN,M8 x 50 Slotted

roll, 8 x 50 mm

4шт.

34

NSS

NOT SOLD SEPARAT

GEAR - planetary

4шт.

35

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

4шт.

36

NSS

NOT SOLD SEPARAT

BEARING - needle

4шт.

37

165703A1

SHIM KIT

1шт.

38

156120A1

BEARING, BALL,280mm ID x 370mm OD x 40mm W

2шт.

39

165684A1

COTTER PIN

dowel

3шт.

40

NSS

NOT SOLD SEPARAT

HOUSING - final drive

1шт.

41

155298A1

SEAL

face

1шт.

Part of the Seal Kit P/N 165702A1

1шт.

42

165683A1

COTTER PIN

dowel

4шт.

43

NSS

NOT SOLD SEPARAT

FLANGE - transmission

1шт.

44

155480A1

PLUG

valve

4шт.

45

154475A1

O-RING

plug

4шт.

Part of the Seal Kit P/N 165702A1

1шт.

46

156337A1

PLATE, SPACER

PLATE,SPACER lock, 3/4 diameter

4шт.

47

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

hex socket, 18 - 2.5 x 50 mm, class 12.9

16шт.

165689A1

COUPLING

ASSEMBLY - final drive, Includes: Ref. 48 - 49

1шт.

48

NSS

NOT SOLD SEPARAT

COUPLING - final drive

1шт.

49

738-1663

LOCK PIN,M6 x 63, Slotted

roll, 6 x 63 mm

1шт.

165702A1

SEAL KIT

Includes: items 2, 41, 45

1шт.
