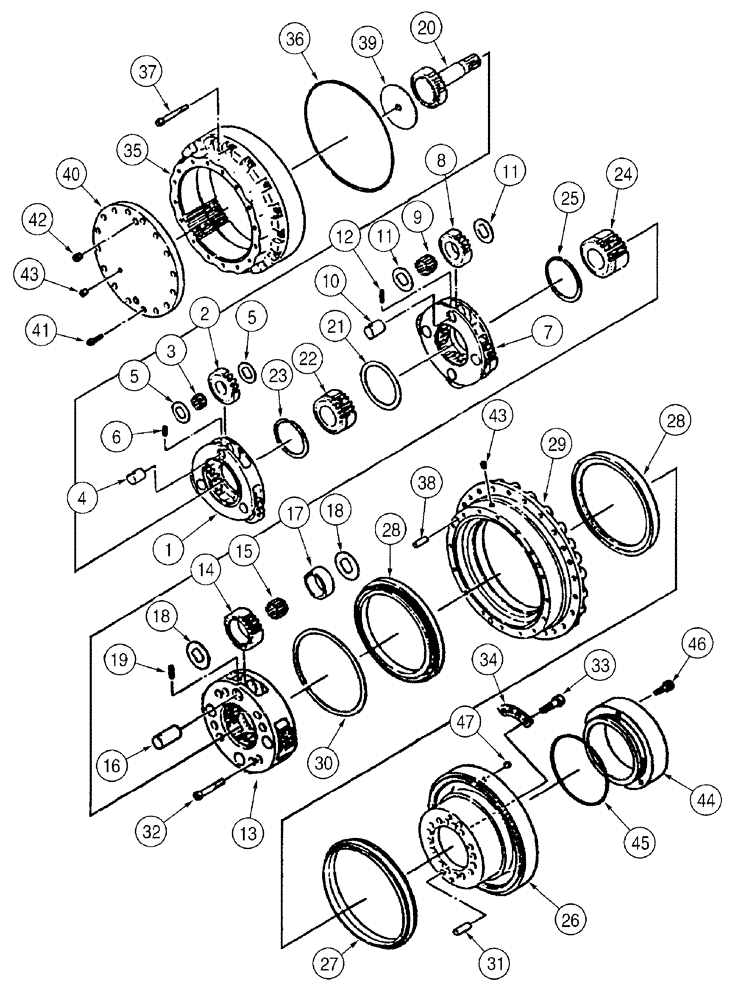

Запчасти Case 9050B (6-004) - FINAL DRIVE TRANSMISSION ASSEMBLY, MODELS WITHOUT TIMBER KING (06) - POWER TRAIN

168478A1

GEAR-SET

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 47

1шт.

155806A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear, A, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - gears, A

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - planetary, A

3шт.

3

NSS

NOT SOLD SEPARAT

BEARING - needle

3шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - gear, A

3шт.

5

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

6

738-1525

LOCK PIN,M5 x 25, Slotted

roll, 5 x 25 mm

3шт.

168479A1

HUB

CARRIER ASSEMBLY - planetary gear, B, was 155801A1, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - gears, B

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - planetary, B

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - carrier

45шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - gear, B

3шт.

11

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

12

168473A1

COTTER PIN

roll

3шт.

168474A1

HOLDER

CARRIER ASSEMBLY - planetary gear, C, was 155802A1, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - gears, C

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - planetary, C

4шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - carrier

72шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - gear, C

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - floating

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust

8шт.

19

168477A1

COTTER PIN

roll

4шт.

20

155277A1

PINION

GEAR - drive

1шт.

21

155391A1

PLATE, THRUST

1шт.

22

155278A1

SUN GEAR

1шт.

23

155657A1

RING, SNAP

RING SNAP

1шт.

24

155279A1

SUN GEAR

1шт.

25

155643A1

RING, SNAP

RING SNAP

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE - transmission

1шт.

27

155298A1

SEAL

face

1шт.

Included in 165270A1 seal kit

1шт.

28

156120A1

BEARING, BALL,280mm ID x 370mm OD x 40mm W

2шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

30

165268A1

SHIM KIT

1шт.

31

155658A1

COTTER PIN

special

4шт.

32

863-18090

HEX SOC SCREW,M18 x 90mm, Cl 12.9

hex socket, 18 - 2.5 x 90 mm, class 12.9

4шт.

33

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

hex socket, 18 - 2.5 x 50 mm, class 12.9

16шт.

34

156337A1

PLATE, SPACER

PLATE,SPACER lock

4шт.

35

155280A1

PINION

GEAR - ring

1шт.

36

155181A1

O-RING

ring gear

1шт.

Included in 165270A1 seal kit

1шт.

37

863-14095

HEX SOC SCREW,M14 x 95mm, Cl 12.9

hex socket, 14 - 2.0 x 95 mm, class 12.9

24шт.

38

155647A1

COTTER PIN

dowel

3шт.

39

165269A1

SET OF PARTS

Friction, Kit

1шт.

40

156335A1

COVER

end

1шт.

41

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

hex socket, 10-1.5 x 20 mm, class 12.9

16шт.

42

151035A1

PLUG

pipe, 3/4 dia

2шт.

43

151026A1

PLUG

port, 1/4 dia

2шт.

44

NSS

NOT SOLD SEPARAT

SPACER - transmission

1шт.

45

165222A1

O-RING

spacer

1шт.

46

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

hex socket, 12 - 1.75 x 60 mm, class 12.9

3шт.

47

163367A1

PLUG

special

1шт.
