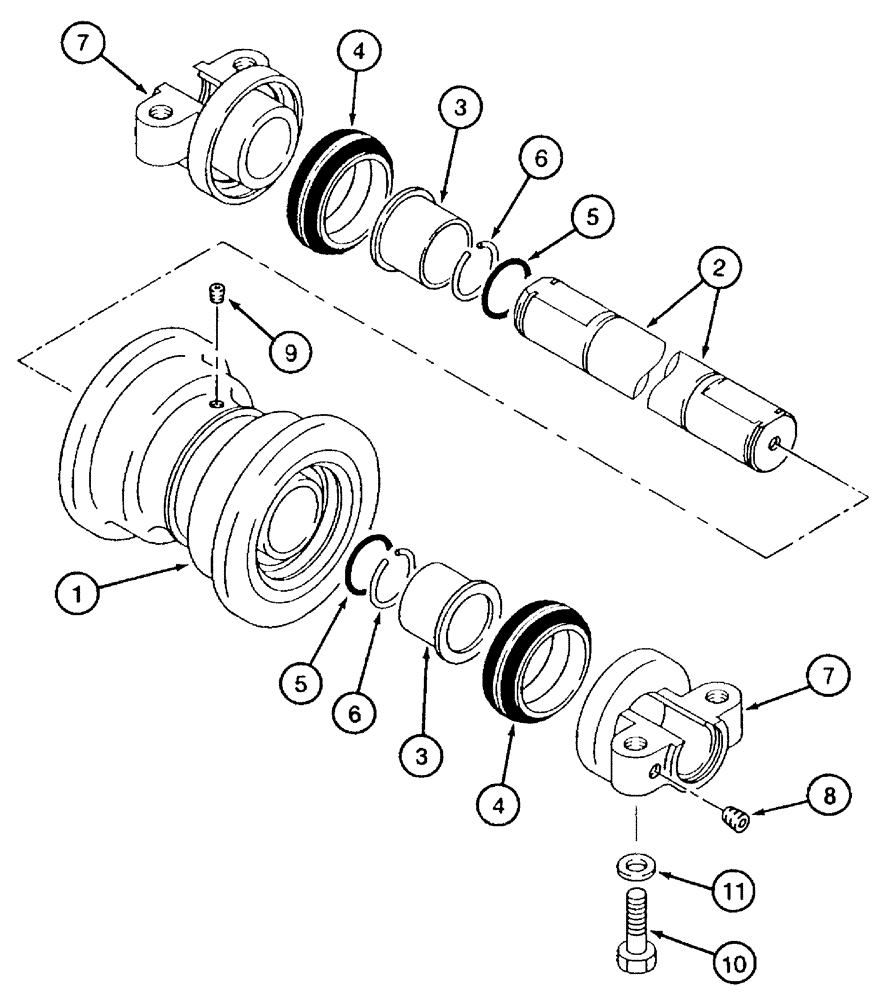

Запчасти Case 9050B (5-024) - TRACK ROLLERS, TIMBER KING MODELS (05) - STEERING

173497A1

ROLLER

ASSEMBLY - track, Includes: Ref. 1-9

16шт.

1

NSS

NOT SOLD SEPARAT

HUB - inner flanges

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - roller

2шт.

4

173656A1

SEAL

face, track roller, includes two rings and two seals

2шт.

5

173657A1

O-RING

shaft

2шт.

6

173658A1

RING

retaining, shaft retaining

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

8

REF

INSTRUCTION

PLUG - port, not used in this application

2шт.

9

173660A1

PLUG

port

1шт.

10

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

If used

64шт.

10

165831A1

BOLT

special, sems, if used

64шт.

11

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special

64шт.
