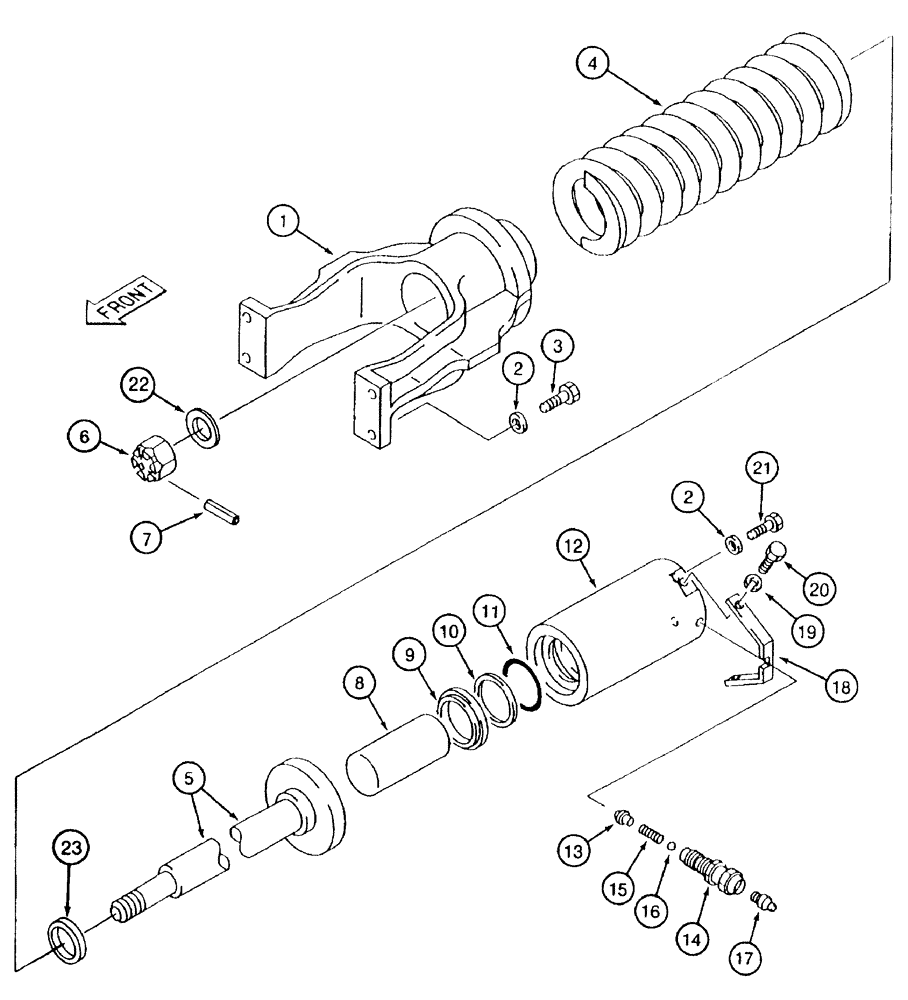

Запчасти Case 9050B (5-016) - TRACK ADJUSTER, TIMBER KING MODELS (05) - STEERING

1

173663A1

YOKE

UNIVERSAL JOINT YOKE track adjuster

2шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 50, 10.9, Full Thd

8шт.

4

173416A1

SPRING

track tension

2шт.

5

173664A1

ROD

GUIDE - tension spring

2шт.

6

173414A1

SLOTTED NUT

hex slotted, special

2шт.

7

173413A1

PIN

roll, special

2шт.

173440A1

CYLINDER ASSY.

track adjuster, Includes: Ref. 8-20

2шт.

8

173433A1

PISTON ROD

1шт.

9

173434A1

SEAL

WIPER - rod

1шт.

10

REF

INSTRUCTION

RING - backup, not used in this application

1шт.

11

173435A1

SEAL

piston

1шт.

12

173432A1

CYLINDER ASSY.

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

check, Includes: Ref. 13-17

1шт.

13

150120A1

CAP

POPPET - check valve

1шт.

14

150112A1

VALVE SEAT

BODY - check valve

1шт.

15

150115A1

SPRING

check valve

1шт.

16

150897A1

BALL

check

1шт.

17

153630A1

LUBE NIPPLE

grease, straight

1шт.

18

173436A1

GUARD

BRACKET - support, check valve

1шт.

19

173438A1

LOCK WASHER

special

2шт.

20

173437A1

BOLT

hex, special

2шт.

21

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.

23

173674A1

SHIM

washer, spring guide

2шт.
