(5-014) - TRACK ADJUSTER, MODELS WITHOUT TIMBER KING

Запчасти Case 9050B (5-014) - TRACK ADJUSTER, MODELS WITHOUT TIMBER KING (05) - STEERING

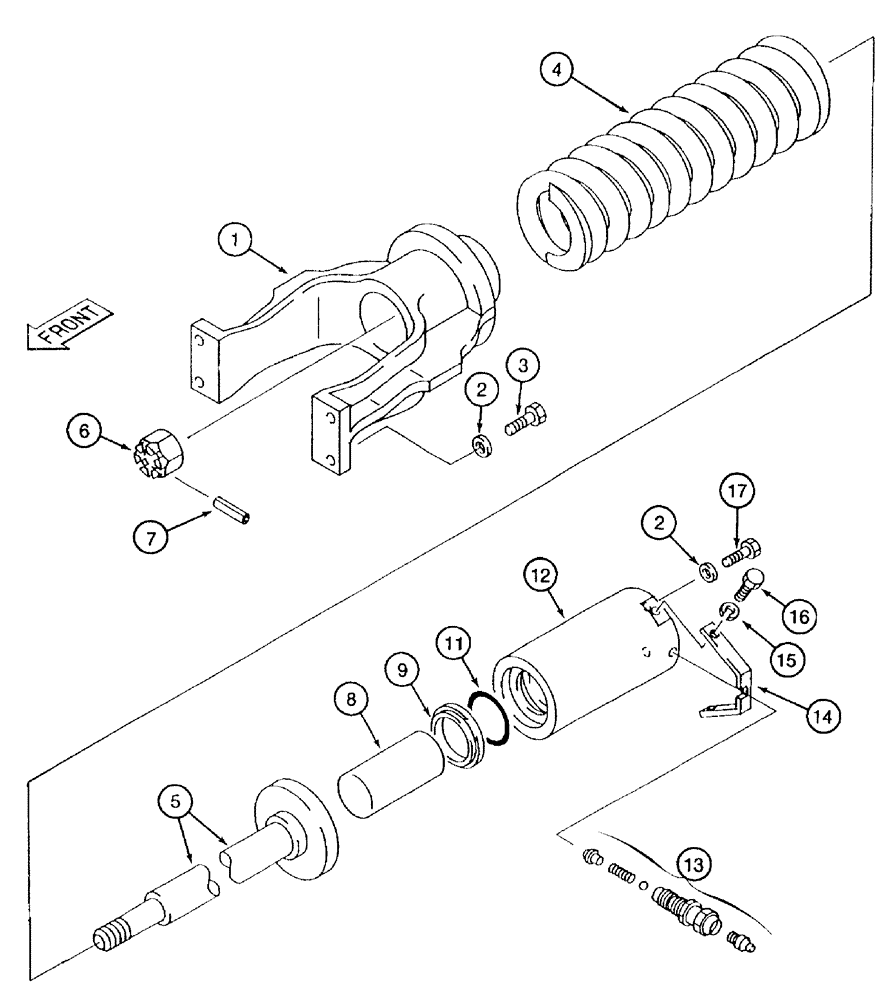

Схема запчастей Case 9050B - (5-014) - TRACK ADJUSTER, MODELS WITHOUT TIMBER KING (05) - STEERING
12
14
2
17
11
13
5
16
4
3
2
15
8
6
1
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

173411A1

FORK

YOKE - track adjuster

2шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 50, 10.9, Full Thd

8шт.

4

173416A1

SPRING

track tension

2шт.

5

173415A1

ROD

GUIDE - tension spring

2шт.

6

173414A1

SLOTTED NUT

hex slotted, special

2шт.

7

173413A1

PIN

roll, special

2шт.

173440A1

CYLINDER ASSY.

track adjuster, Includes: Ref. 8-16

2шт.

8

173433A1

PISTON ROD

1шт.

9

173434A1

SEAL

WIPER - rod

1шт.

11

173435A1

SEAL

piston rod

1шт.

12

173432A1

CYLINDER ASSY.

TUBE - track adjuster

1шт.

13

150107A1

LUBE NIPPLE

check

1шт.

14

173436A1

GUARD

BRACKET - support, check valve

1шт.

15

173438A1

LOCK WASHER

special

2шт.

16

173437A1

BOLT

hex, special

2шт.

17

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.
