(5-010) - IDLER WHEEL, MODELS WITHOUT TIMBER KING

Запчасти Case 9050B (5-010) - IDLER WHEEL, MODELS WITHOUT TIMBER KING (05) - STEERING

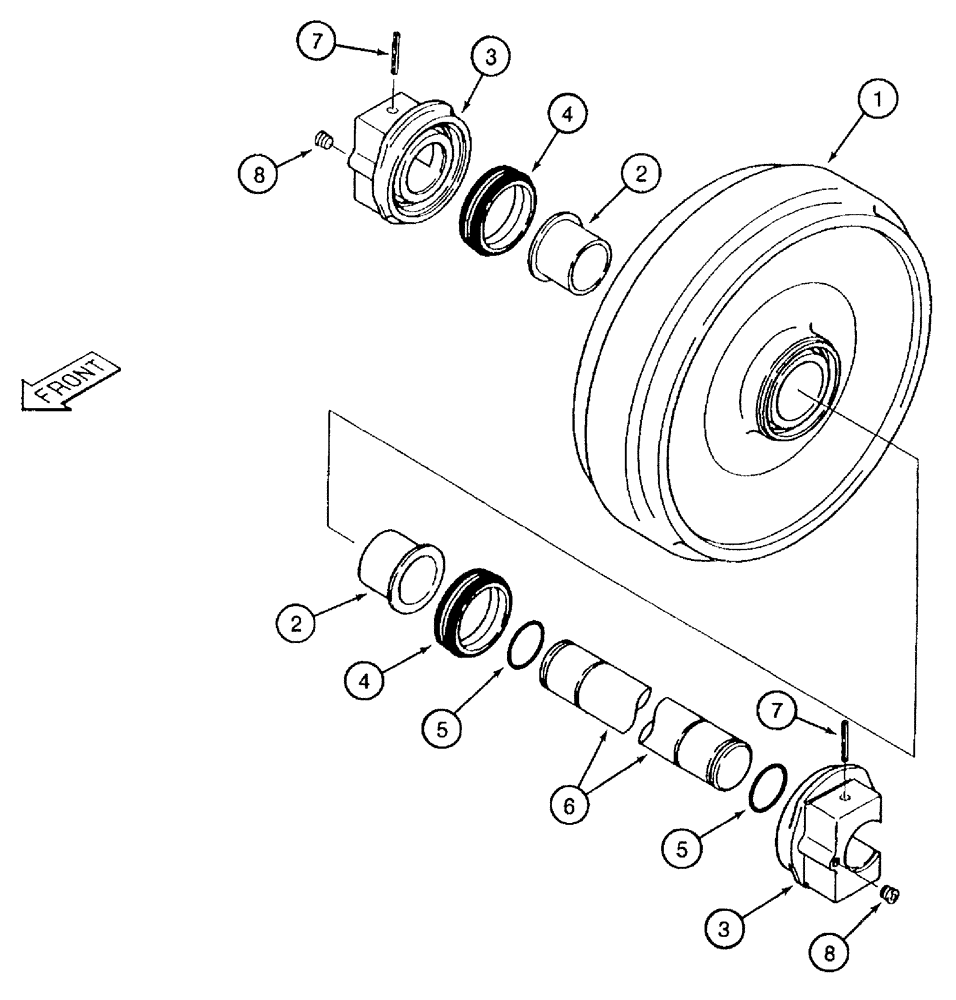

Схема запчастей Case 9050B - (5-010) - IDLER WHEEL, MODELS WITHOUT TIMBER KING (05) - STEERING
3
2
6
7
7
8
5
4
5
2
8
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

173783A1

FRONT IDLER

WHEEL ASSEMBLY - track, Includes: Ref. 1-8

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler, track

1шт.

2

173418A1

BUSHING

idler wheel

2шт.

3

173420A1

HUB

idler support

2шт.

4

173419A1

SEAL

face, includes two rings and two seals

2шт.

5

170577A1

O-RING

shaft

2шт.

6

173422A1

WHEEL SHAFT

idler

1шт.

7

173670A1

PIN, ROLL

hub, hub retaining

2шт.

8

170560A1

PLUG

port

2шт.
