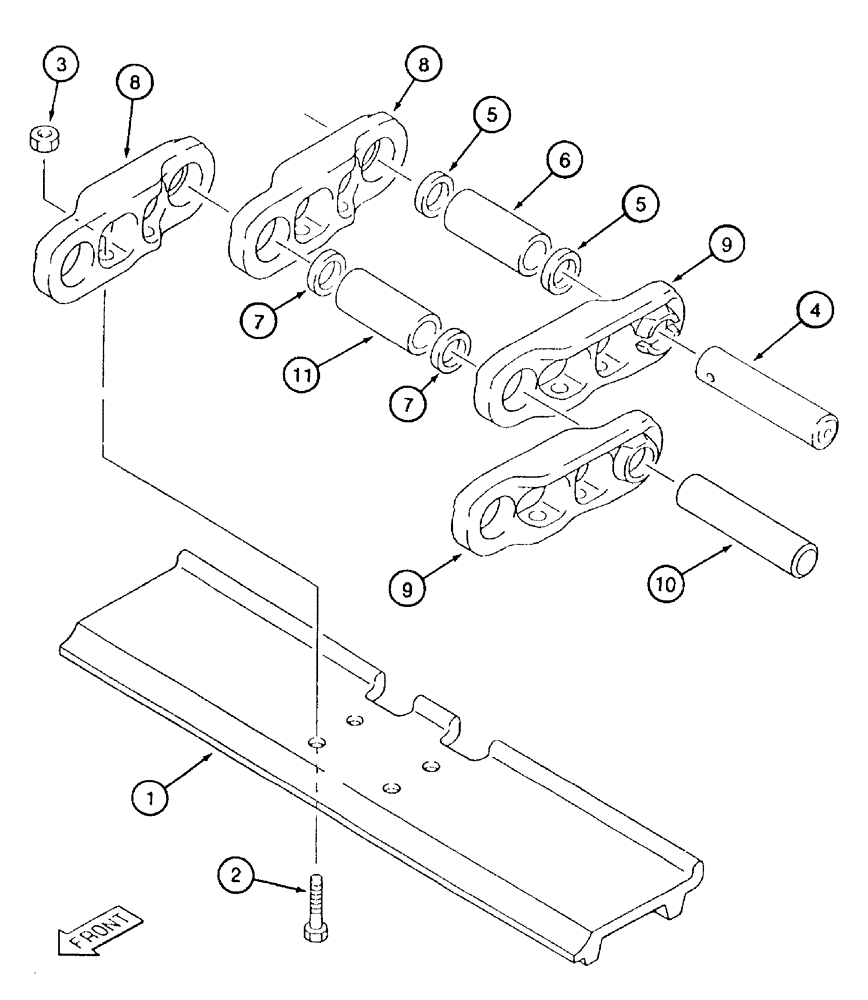

Запчасти Case 9050B (5-008) - TRACK CHAIN AND SHOES, TIMBER KING MODELS (05) - STEERING

REF

INSTRUCTION

CHAIN ASSEMBLY - track, includes track shoes, Includes: Ref. 1-11

2шт.

1

173644A1

TRACK SHOE

two bar grouser, 711 mm (28 inch) wide

49шт.

2

173661A1

BOLT

special, track shoe mounting

196шт.

3

171336A1

NUT

special, shoe retaining

196шт.

173646A1

TRACK CHAIN

ASSEMBLY - without track shoes, Includes: Ref. 4-11

1шт.

4

171333A1

HEADED PIN

master

1шт.

5

173393A1

SPACER

bushing, master pin

2шт.

6

171331A1

BUSHING

master

1шт.

7

173430A1

SEAL

track

98шт.

8

171328A1

LINK

master, standard, right-hand

49шт.

9

171329A1

LINK

master, standard, left-hand

49шт.

10

171332A1

PIN

track, standard

48шт.

11

171330A1

BUSHING

pin, standard

48шт.
