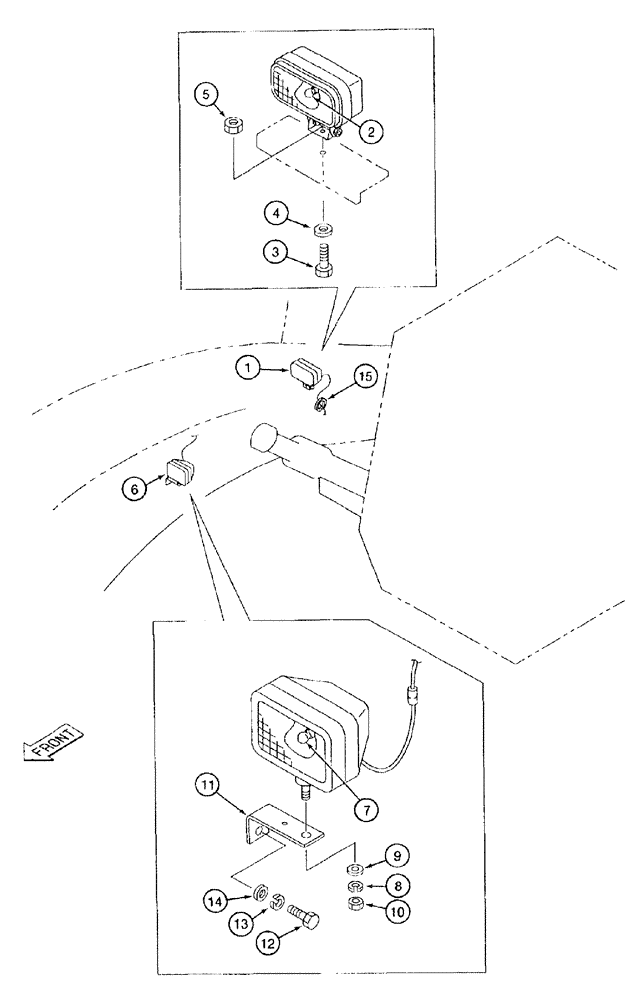

Запчасти Case 9050B (4-020) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

159600A1

LAMP, WORK

LIGHT, WORK Includes: Ref. 2

1шт.

2

159600A1

LAMP, WORK

LIGHT, WORK sealed beam, work lamp

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

6

159598A1

PORTABLE LAMP

Includes: Ref. 7-10

1шт.

7

152812A1

BULB

sealed beam, on boom

1шт.

8

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Special

1шт.

9

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 15.5 x 28 x 3 mm, hardened

1шт.

10

829-1414

NUT,M14, Cl 10

hex, 14 mm -20, class 10

1шт.

11

150834A1

BRACKET

boom, lamp mounting

1шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

15

159656A1

GROMMET

special

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
